Coolant System Problems: Overheating Diagnosis and Fixes for VW and Audi

Coolant system failures are among the most critical problems you can encounter in your Volkswagen or Audi. Overheating doesn't just leave you stranded—it can cause catastrophic engine damage including warped cylinder heads, blown head gaskets, and complete engine failure requiring replacement.

Understanding how to diagnose coolant system problems, recognize early warning signs, and know when components need replacement can prevent engine damage costing thousands of euros. This comprehensive guide covers coolant system troubleshooting, common failure points, and preventive maintenance for VW and Audi vehicles.

Why Coolant System Failures Are So Expensive

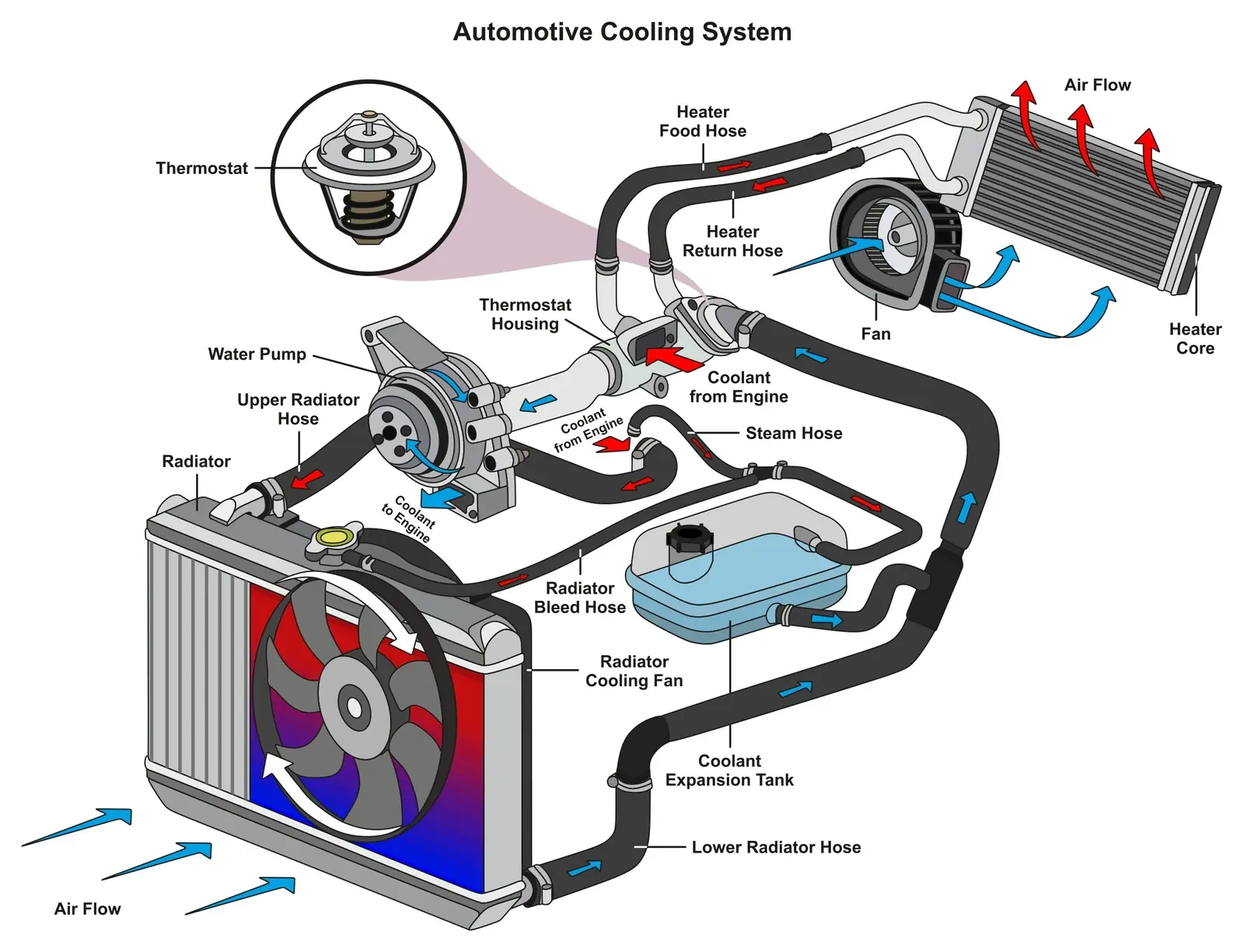

Modern engines operate at high temperatures (typically 90–105°C). The coolant system:

• Removes engine heat and transfers it to the radiator
• Maintains operating temperature for optimal efficiency
• Prevents overheating that causes immediate engine damage
• Protects against freezing in cold climates

When coolant systems fail:

• Mild overheating: Warped cylinder heads (€1,500–€3,000 repair)
• Moderate overheating: Blown head gasket (€2,000–€4,000 repair)
• Severe overheating: Complete engine failure (€5,000–€15,000+ replacement)

Component replacement costs:

• Water pump: €200–€600 (parts) + €300–€800 (labour)
• Thermostat: €50–€150 (parts) + €150–€300 (labour)
• Radiator: €300–€800 (parts) + €200–€400 (labour)
• Head gasket repair: €2,000–€4,000

Prevention is dramatically cheaper than repair.

7 Warning Signs of Coolant System Problems

1. Engine Overheating

What to see: Temperature gauge rises above normal operating range, red warning light appears, or steam from under the hood.

Why it happens:

• Coolant leak reduces system capacity
• Water pump failure stops coolant circulation
• Thermostat stuck closed prevents coolant flow
• Radiator blockage reduces heat transfer
• Cooling fan failure prevents air circulation

Action required: Stop driving immediately. Continued operation risks catastrophic engine damage. Allow engine to cool completely before inspection.

2. Coolant Leaks (Visible or Smelling Sweet Odor)

What to notice:

• Puddles under vehicle: Coolant is typically bright colored (green, red, blue, yellow) and has a sweet smell
• Low coolant level: Reservoir is below minimum mark or empty
• Sweet smell in cabin: Coolant leak into heater core causes distinctive odor
• Steam from engine bay: Hot coolant leaking onto hot components

Why it happens:

• Hose failure: Cracked, worn, or loose coolant hoses
• Water pump leak: Seals fail, allowing coolant to leak from pump housing
• Radiator leaks: Physical damage or corrosion causes leaks
• Head gasket failure: Coolant enters combustion chambers or oil system
• Heater core leak: Coolant leaks into cabin heating system

Locating leaks: Use pressure testing equipment or UV dye to identify exact leak location.

3. Low Coolant Level (Frequent Topping Up)

What to check: Coolant reservoir consistently needs topping up between service intervals.

Why it happens:

• Slow leak: Small leak that's not immediately visible
• Internal leak: Coolant leaking into engine (head gasket failure) or consumed during combustion
• Evaporation: Normal loss is minimal; significant loss indicates problems

Severity: If you're adding coolant weekly or monthly, a leak exists requiring diagnosis.

4. Heater Not Working (Cold Air from Vents)

What to experience: Heater produces little or no heat, even when engine is warmed up.

Why it happens:

• Low coolant level: Insufficient coolant prevents heater core from receiving hot coolant
• Air in system: Air pockets prevent coolant flow through heater core
• Heater core blockage: Restricted flow through heating system
• Thermostat stuck open: Engine never reaches operating temperature

Connection: Heater problems often indicate broader coolant system issues.

5. Engine Temperature Fluctuates Erratically

What to see: Temperature gauge rises and falls unexpectedly, doesn't stabilize, or shows inconsistent readings.

Why it happens:

• Thermostat malfunction: Sticking open/closed causes temperature instability
• Air in system: Air pockets cause erratic temperature readings
• Cooling fan issues: Fan not operating correctly causes temperature swings
• Water pump problems: Reduced flow causes inconsistent cooling

Severity: Erratic temperature can indicate imminent failure. Immediate diagnosis is recommended.

6. Coolant Discoloration or Contamination

What to see: Coolant appears dirty, oily, or discolored. May have rust particles or appear milky.

Why it happens:

• Oil contamination: Head gasket failure allows oil into coolant system
• Rust/corrosion: Coolant system not properly maintained
• Wrong coolant type: Mixing incompatible coolants causes problems
• Overdue service: Coolant should be replaced per service schedule

Action required: Contaminated coolant can damage entire system. Drain and flush required, plus diagnosis of contamination source.

7. Check Engine Light with Cooling System Codes

What to see: Warning lights with fault codes such as:

• P0128: Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature)
• P2181: Cooling System Performance
• P2185: Engine Coolant Temperature Sensor 2 Circuit High

Why it happens: Engine management systems monitor coolant temperature and system operation. Deviations trigger diagnostic trouble codes.

Action required: Have codes read with professional diagnostic equipment. Many cooling system codes indicate problems requiring immediate attention.

Common Coolant System Failures

Water Pump Failure

Symptoms:

• Overheating
• Coolant leak from pump area
• Noise (bearing failure causes grinding/whining)
• Coolant not circulating

Causes:

• Bearing wear over time
• Seal failure
• Impeller damage
• Timing belt-driven pumps fail when timing belt service is delayed

Replacement: Water pump replacement typically required. On timing belt-driven engines, replace during timing belt service.

Search our catalog for water pumps - genuine OEM parts with guaranteed fitment.

Thermostat Failure

Symptoms:

• Overheating (stuck closed)
• Engine never reaches operating temperature (stuck open)
• Erratic temperature readings

Causes:

• Mechanical sticking
• Wax pellet failure (in modern thermostats)
• Electrical failure (in electronic thermostats)

Replacement: Thermostat replacement is straightforward but requires proper coolant refill and bleeding procedure.

Radiator Problems

Symptoms:

• Overheating
• Visible leaks
• Reduced cooling capacity

Causes:

• Physical damage (road debris, accidents)
• Corrosion (internal or external)
• Blockage (debris, scale buildup)

Replacement/Repair: Minor leaks can sometimes be repaired; severe damage requires radiator replacement.

Coolant Hose Failure

Symptoms:

• Coolant leaks
• Visible damage (cracking, bulging)
• Collapsed hoses

Causes:

• Age and heat cycling
• Physical damage
• Poor clamp installation

Replacement: Always replace in sets when one hose fails—others are likely near failure.

Head Gasket Failure

Symptoms:

• Coolant consumption (entering combustion chambers)
• Oil contamination (milky appearance)
• Overheating
• White smoke from exhaust (coolant burning)

Causes:

• Overheating damage
• Age and material failure
• Manufacturing defects

Severity: Head gasket failure requires major engine work. Early diagnosis of overheating causes prevents head gasket failure.

Diagnosis: How to Test Your Coolant System

Professional Diagnosis

Diagnostic procedure:

1. Pressure testing: Test system under pressure to locate leaks
2. Coolant analysis: Check for contamination, proper concentration
3. Temperature testing: Verify thermostat operation and temperature regulation
4. Flow testing: Check water pump operation and system flow
5. Visual inspection: Check hoses, radiator, water pump for damage
6. Diagnostic scan: Read fault codes and check temperature sensor readings

Professional advantages:

• Accurate leak location
• Proper system testing
• Identification of multiple issues

DIY Checks (Limited)

Visual inspection:

• Check coolant level in reservoir
• Look for visible leaks or damage
• Inspect hoses for cracking, bulging, or damage
• Check radiator for damage or blockage

Temperature monitoring:

• Monitor temperature gauge during normal driving
• Check if heater produces adequate heat

Coolant condition:

• Check coolant color and clarity
• Look for oil contamination (milky appearance)

Limitations: Professional pressure testing and flow analysis are recommended for accurate diagnosis. Many symptoms can indicate multiple problems.

Prevention: Coolant System Maintenance

Regular service:

• Coolant replacement: Follow manufacturer intervals (typically every 2–3 years or 60,000–100,000 km)
• Use correct coolant: VW/Audi require specific coolant specifications (G12, G13, etc.)
• Never mix types: Mixing incompatible coolants causes damage

Component inspection:

• Hoses: Inspect during service intervals, replace if cracking or damage visible
• Water pump: Check for leaks during timing belt service (if applicable)
• Radiator: Inspect for damage, clean external surfaces

Driving habits:

• Monitor temperature: Watch temperature gauge, respond to warning lights immediately
• Avoid overheating: If overheating occurs, stop immediately—don't attempt to drive

Early intervention:

• Address leaks immediately: Small leaks become big problems quickly
• Respond to symptoms: Don't ignore temperature issues or warning lights

Cost Comparison: Prevention vs. Repair

• Regular coolant service: €100–€200 every 2–3 years
• Water pump replacement (preventive): €500–€1,400
• Head gasket repair: €2,000–€4,000
• Engine replacement (after overheating): €5,000–€15,000+

Preventive maintenance is dramatically cheaper than engine damage. Addressing problems early prevents catastrophic failure.

Next Steps

If you're experiencing coolant system symptoms or overheating, don't delay diagnosis. Immediate intervention prevents engine damage and expensive repairs.
