001409539 Seal
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

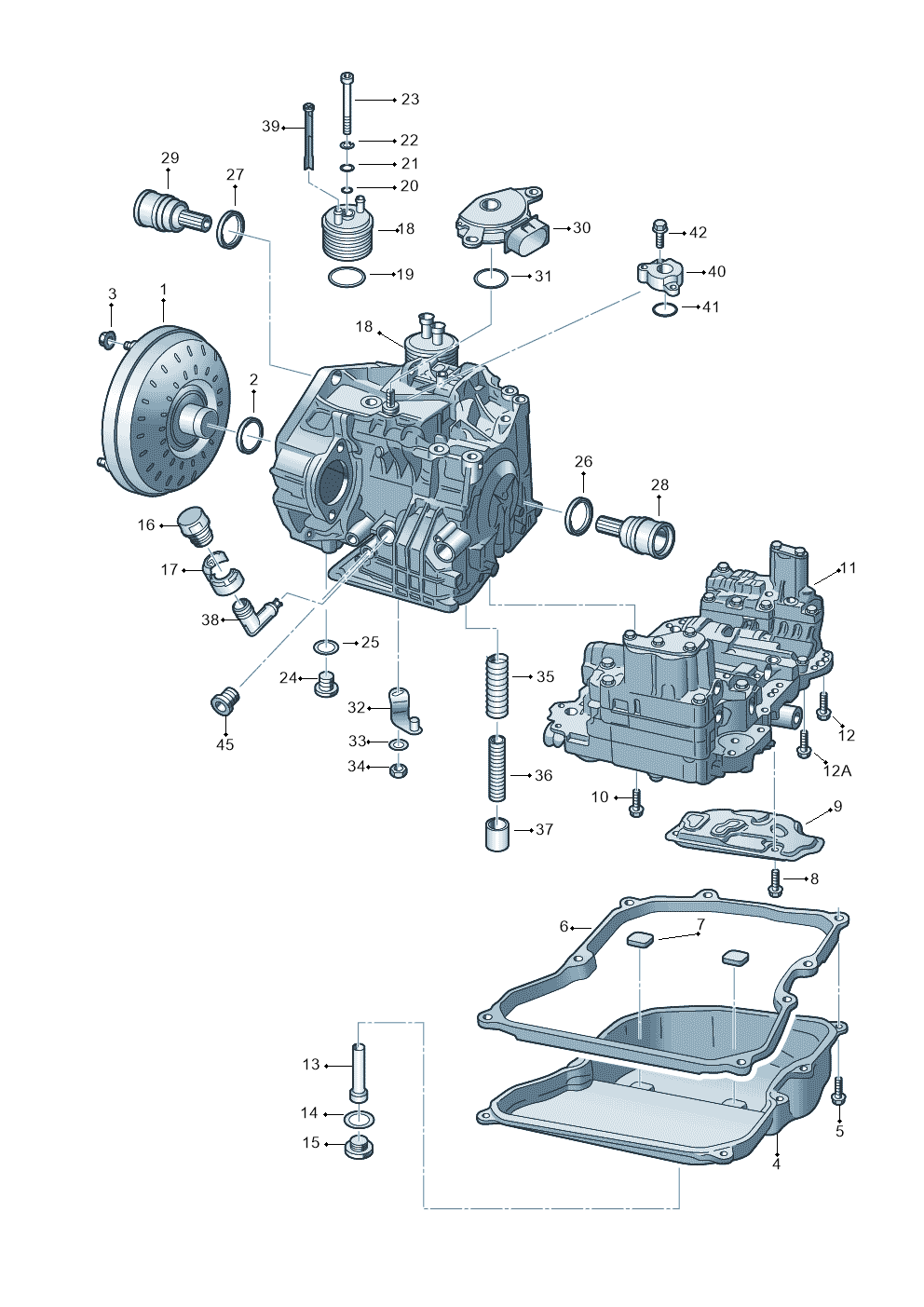

39 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Converter 09G323571J
- 2Seal Washer 09K321243
- 3Part N10169201
- 4Oil Sump 09G321361
- 5Bolt WHT000309
- 6Seal 09G321370
- 7Magnet 09D321368
- 8Bolt WHT000315
- 8Bolt N10171102
- 9Strainer 09G325429
- 10Bolt WHT000311
- 11Valve Body 09G325039A
- 12Bolt WHT000307
- 12ABolt WHT000313
- 13Oil Pipe 09G321363
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Bungs 01M321432A
- 17Part 01M321435B
- 18Oil Cooler 09G409061
- 19Seal Ring 001409069B
- 20Seal Ring 001409069
- 22Washer WHT000304
- 23Screw 09G409067
- 24Screw WHT000306
- 25Seal Ring 09G321379
- 26SealLeft09G301189
- 31Seal Washer 09D321199
- 32Lever 09G321175
- 33Plate 09G321381
- 34Part WHT001425
- 36Spring 09K325233
- 37Piston 09K325215
- 38Pipe 09G321407
Vehicle fitment table39
Europe (25)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| octavia ambiente | 2008-2013 | 21 | 1 | ||
| Sharan | 2008-2010 | 22 | 1 | ||
| Audi A3/S3/Sportb./qu. 08 | 2007- | 21 | 1 | G1A | |
| JETTA 06> | 2006- | 21 | 1 | ||
| ALTEA 07> | 2006- | 21 | 1 | HFX,HTQ | |
| Alhambra | 2006-2010 | 22 | 1 | ||
| JETTA 06> | 2005- | 21 | 1 | ||
| SHARAN/4MOTION | 2005- | 22 | 1 | G0F | |
| LEON 06> | 2005- | 21 | 1 | HFT,HTP | |
| ALHAMBRA/4MOTION | 2005- | 22 | 1 | ||
| Audi A3/S3/quattro | 2005-2007 | 21 | 1 | G1A | |
| TOLEDO 05> | 2004- | 21 | 1 | GKC,HFX,HTQ | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 21 | 1 | ||
| ALTEA | 2004-2006 | 21 | 1 | HFX,HTQ | |
| Jetta/Wagon | 2002-2006 | 22 | 1 | ||
| Audi TT Coupe/Roadster | 2002-2006 | 21 | 1 | G1A | |
| SHARAN/4MOTION | 2002-2005 | 22 | 1 | ||
| ALHAMBRA/4MOTION | 2002-2005 | 22 | 1 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 22 | 1 | ||
| Jetta Wagon 02 | 2001-2002 | 22 | 1 | G0F | |
| Jetta Wagon | 2001-2001 | 22 | 1 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 22 | 1 | G0F | |
| SHARAN/4MOTION | 2000-2002 | 22 | 1 | ||
| ALHAMBRA/4MOTION | 2000-2002 | 22 | 1 | ||
| Golf | 1998-2000 | 22 | 1 |
Other markets (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Brasil "BR."08> | 2007- | 22, 21 | 1 | ||
| Jetta City "Mex"08> | 2007- | 22 | 1 | ||
| Jetta City "MEX"05>07 | 2006-2007 | 22 | 1 | ||
| Jetta "USA"05> | 2005- | 22 | 1 | HFU,HRM | |
| AUDI A3 "BR."M.06> | 2005-2006 | 22 | 1 | ||
| TOURAN (SVW) "CN"04> | 2004- | 21 | 1 | G1A | |
| Golf 'R32' n. "USA" | 2004-2004 | 22 | 1 | ||
| POLO CLASSIC "CN"03>06 | 2003-2006 | 21 | 1 | G1A | |
| POLO CLASSIC (AUS) "CN"03>06 | 2003-2006 | 21 | 1 | ||
| Golf "BR.","USA"03>07 | 2002-2007 | 22 | 1 | G0F | |
| POLO "CN"02>06 | 2002-2006 | 21 | 1 | ||
| Jetta USA | 2001-2005 | 22 | 1 | ||
| Golf BR/US | 2001-2002 | 22 | 1 | ||
| AUDI A3-BRASIL. | 2000-2005 | 22 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: octavia ambiente 2008-2013; Sharan 2008-2010; Audi A3/S3/Sportb./qu. 08 2007-; JETTA 06> 2006-; ALTEA 07> 2006-; Alhambra 2006-2010; JETTA 06> 2005-; SHARAN/4MOTION 2005-; LEON 06> 2005-; ALHAMBRA/4MOTION 2005-; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; Jetta/Wagon 2002-2006; Audi TT Coupe/Roadster 2002-2006; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; AUDI A3/S3/QUATTRO 2000-2003; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; Golf 1998-2000; Golf Brasil "BR."08> 2007-; Jetta City "Mex"08> 2007-; Jetta City "MEX"05>07 2006-2007; Jetta "USA"05> 2005-; AUDI A3 "BR."M.06> 2005-2006; TOURAN (SVW) "CN"04> 2004-; Golf 'R32' n. "USA" 2004-2004; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; Golf "BR.","USA"03>07 2002-2007; POLO "CN"02>06 2002-2006; Jetta USA 2001-2005; Golf BR/US 2001-2002; AUDI A3-BRASIL. 2000-2005.
