012301153B Dowel Sleeve
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for LAMBORGHINI is typically 1–10 business days before dispatch.
Handling time for All other brands: 1–10 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

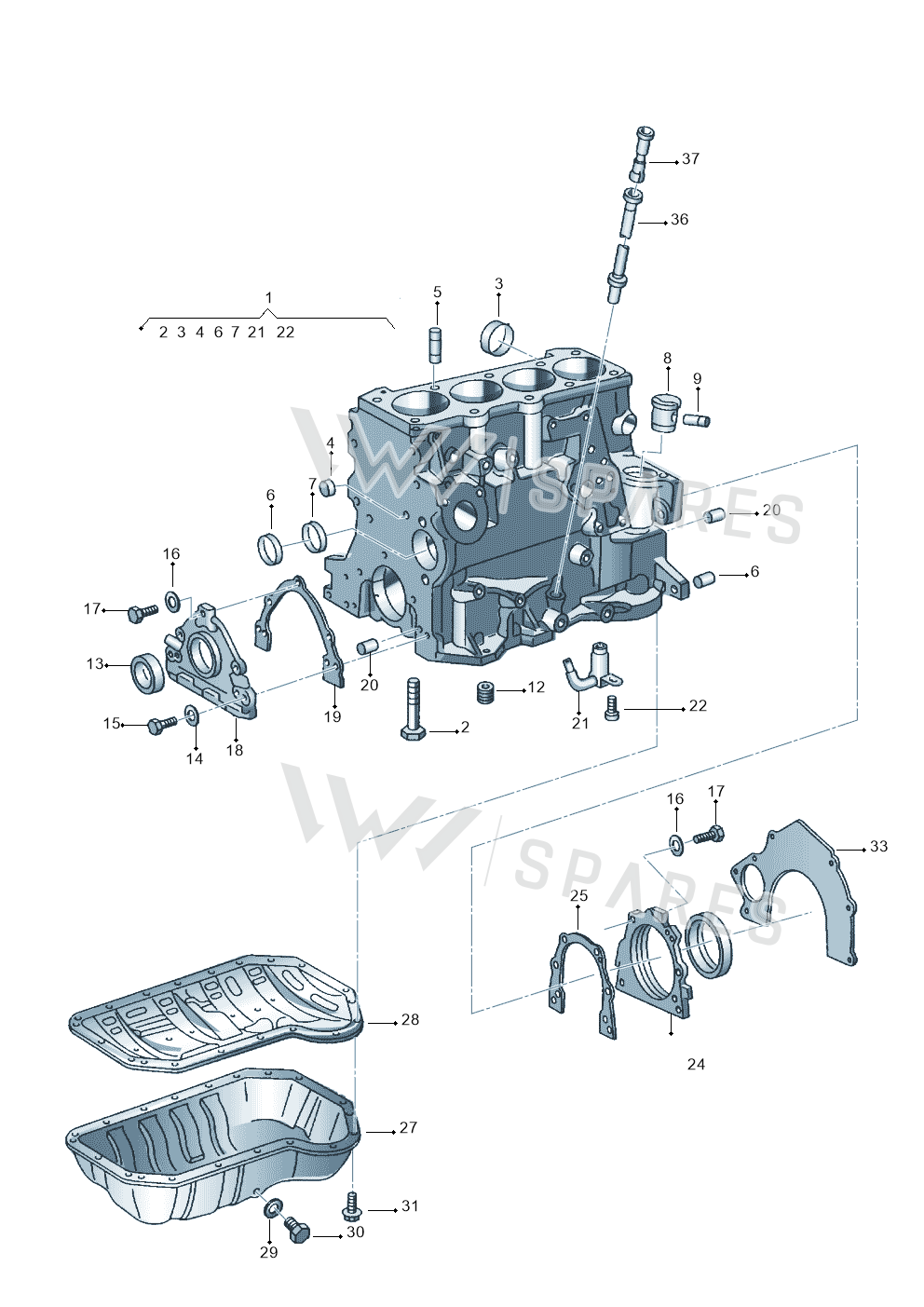

33 vehiclesDowel Sleeve — locate Dowel Sleeve in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Cylinder Block 028103101D
- 2Bolt N90130001
- 3Cover 059103113
- 4Cover N0119077
- 5Sleeve 028103039A
- 7Seal Ring 056905261
- 8Bush 056103541
- 9Rivet N0162011
- 9Bungs 0261031171
- 10Bracket 028905256
- 11Washer N0122293
- 12Bolt N01024416
- 13Seal 026103085E
- 14Washer N01224110
- 15Bolt N01024016
- 16Washer N0122265
- 17Bolt N01021612
- 19Seal 026103161B
- 20Part N0432072
- 21Vent 028103157A
- 21Vent 068103157D
- 22Screw N90241501
- 24Flange 068103171F
- 25Seal 026103181B
- 27Oil Sump 051103601
- 28Lock 037115220B
- 29Seal Ring N0138492
- 30Plug N90288901
- 31Bolt N90592703
- 33Cover 0271036452
- 35Bolt N0102085
- 36Tube 028103634
- 37Funnel 028103663B
Vehicle fitment table33
Europe (15)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CADDY-KOMBI/KASTENW. 06> | 2005- | 26 | 1 | ||
| POLO CLASSIC 06> | 2005- | 26, 19 | 1 | ||
| GOLF CABRIO | 2002-2002 | 30 | 1 | M60 | |
| SUPERB 02> | 2001- | 29, 42 | 1 | ||
| PASSAT 00> | 2000- | 22, 19 | 2 | ||
| caddy combi./del.van | 1998-2005 | 30, 26 | 1 | ADD | |
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | 23 | 1 | ||
| Audi A6/Wagon F >4A-W | 1996-1997 | 5 | 1 | ||
| PICK UP | 1995-2001 | 11 | 2 | ||
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 42 | 2 | ||
| Audi A6/Wagon 96 | 1995-1996 | 30, 26, 5 | 2 | ||
| Audi 90 qu. 95 | 1994-1995 | 5 | 1 | AXM,CPS,CVR | |
| Audi Cabrio. | 1993-1998 | 30, 26, 5 | 2 | ||
| AUDI COUPE/3 | 1988-1994 | 5 | 1 | ||
| Scirocco | 1983-1989 | 30 | 2 |
Other markets (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Lavida | 2008-2013 | 22 | 2 | ||
| OCTAVIA "CN."07> | 2007- | 22 | 2 | ||
| PASSAT LINGYU "CN."06> | 2005- | 22, 19 | 2 | ||
| TOURAN (SVW) "CN"04> | 2004- | 22 | 2 | ||
| SANTANA 3000 "CN"04> | 2004- | 15 | 2 | G0E | |
| POLO CLASSIC "CN"03>06 | 2003-2006 | 22 | 2 | ||
| POLO CLASSIC (AUS) "CN"03>06 | 2003-2006 | 22 | 2 | ||
| POLO "CN"02>06 | 2002-2006 | 22 | 2 | ||
| Golf Cabrio "USA","Mex"99>02 | 1998-2002 | 30 | 1 | ||
| SANTANA 2000 "CN"96>04 | 1996-2004 | 15 | 2 | ||
| AUDI 200 CHINA | 1995-1999 | 30, 5 | 2 | ||
| JETTA (FAW) 91> | 1991- | 19 | 2 | ||
| AUDI 100 (CHINA) | 1988-1995 | 5 | 1 |
Platform / generic diagrams (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 22, 19, 4 | 2 | |||
| 6K0 platform | 26 | 1 | 1Y | ||
| 6K0 platform | 30, 26, 19 | 1 | ADD | ||
| 6K0 platform | 26 | 1 | 1Y | ||
| 6K0 platform | 22, 19 | 2 | AKL |
Diagrams & fitment data powered by oemdiagrams.com
Dowel Sleeve is fitted on: CADDY-KOMBI/KASTENW. 06> 2005-; POLO CLASSIC 06> 2005-; GOLF CABRIO 2002-2002; SUPERB 02> 2001-; PASSAT 00> 2000-; caddy combi./del.van 1998-2005; Audi A6/S6/Wg.qu.F>4A 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; PICK UP 1995-2001; Audi A4 qu. F>8D-W-.. 1995-1997; Audi A6/Wagon 96 1995-1996; Audi 90 qu. 95 1994-1995; Audi Cabrio. 1993-1998; AUDI COUPE/3 1988-1994; Scirocco 1983-1989; Lavida 2008-2013; OCTAVIA "CN."07> 2007-; PASSAT LINGYU "CN."06> 2005-; TOURAN (SVW) "CN"04> 2004-; SANTANA 3000 "CN"04> 2004-; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006; Golf Cabrio "USA","Mex"99>02 1998-2002; SANTANA 2000 "CN"96>04 1996-2004; AUDI 200 CHINA 1995-1999; JETTA (FAW) 91> 1991-; AUDI 100 (CHINA) 1988-1995; 1J0 platform; 6K0 platform.
