012301282A Oval Hexagon Socket Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

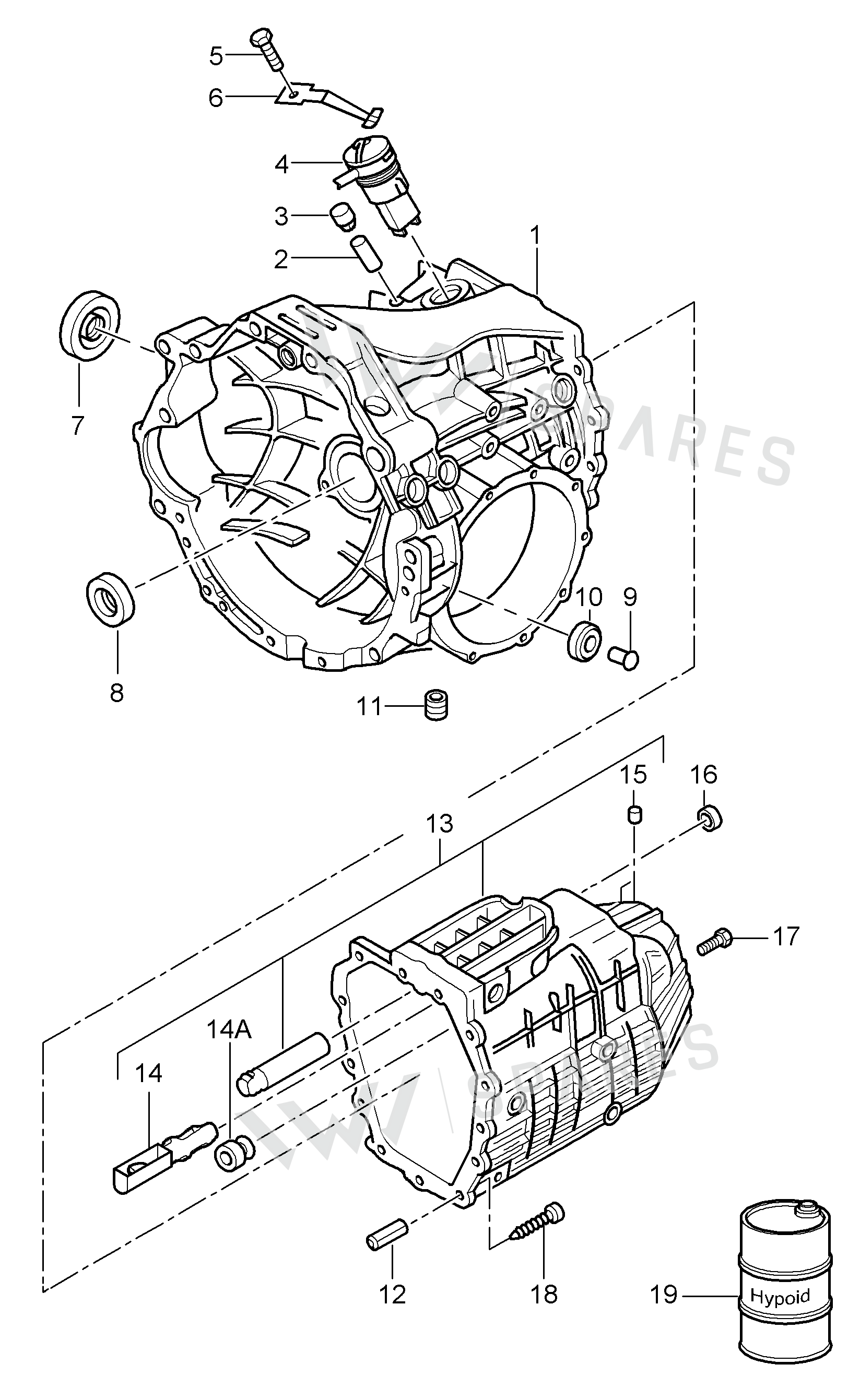

9 vehiclesOval Hexagon Socket Head Bolt — locate Oval Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Gearbox 98730001000
- 1Housing 012301103AD
- 2Sleeve 012301474A
- 3Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 4Switch 012919823F
- 5Bolt N0402552
- 6Spring 012301483G
- 7Seal Washer 016409399B
- 8Seal Washer 012311113B
- 9Bush 012301183A
- 10Magnet 01X301143
- 11Screw WHT001937
- 12Sleeve 012301473
- 13Cover 012301205P
- 14Drip Tray 012301276A
- 14ASleeve 012311429P
- 15Bungs 012301115
- 16Seal 012301457C
- 18Screw 9A700207900
- 19Part 00004320471
- 19Il Transmission Fluid Transmission Fluid 00004330471
- 19Il Transmission Fluid Transmission Fluid 00004330500
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Cayman S | 2005-2008 | 18 | ||
| Boxster S | 2004-2008 | 18 | ||
| Audi A6/Avant | 1997-2001 | 18 | 13 | DDU |
| Passat | 1997-2000 | 18 | 13 | DCN,DCM,DWF, |
| Audi A4/Avant F8D-W-> | 1997-1998 | 18 | 13 | |
| Boxster S | 1996-2004 | 18 | ||
| Audi A6/Wagon F >4A-W | 1996-1997 | 18 | 13 | DHG |
| Audi A4 F>8D-W-.. | 1995-1997 | 18 | 13 | DHF, |
| Audi Cabrio. | 1993-1998 | 18 | 13 | DHG, |
Diagrams & fitment data powered by oemdiagrams.com
Oval Hexagon Socket Head Bolt is fitted on: Cayman S 2005-2008; Boxster S 2004-2008; Audi A6/Avant 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Boxster S 1996-2004; Audi A6/Wagon F >4A-W 1996-1997; Audi A4 F>8D-W-.. 1995-1997; Audi Cabrio. 1993-1998.
