01E301153E Dowel Sleeve
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

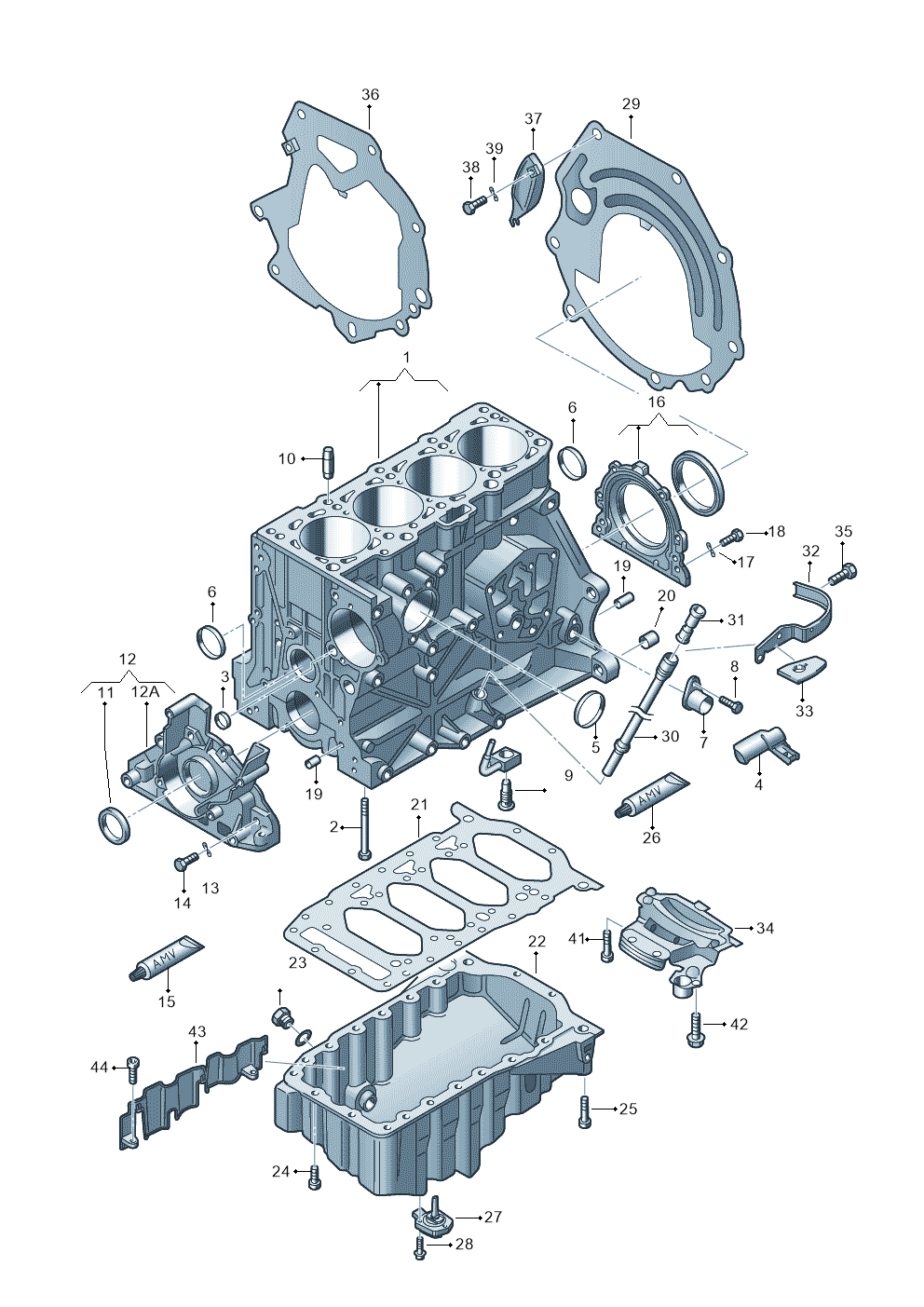

23 vehiclesDowel Sleeve — locate Dowel Sleeve in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Crankcase 06F103011J
- 2Bolt N90130001
- 3Cover N0119047
- 4Lock 06F103623E
- 6Cover N01190710
- 9Vent 06F103154
- 10Part 026103139
- 11Seal 038103085E
- 12AFlange 06D103153B
- 13Bolt N90945002
- 15Seal D176404A2
- 16Flange 06A103171A
- 19Part N10617101
- 21Frame 06B103307C
- 22Oil Sump 06B103601CG
- 23Bolt N90813202
- 24Bolt N90735604
- 25Bolt N90628303
- 29Ring 01X103551
- 29Spacer Pl 06B103551G
- 29Spacer Pl 06B103551L
- 30Tube 06D103634E
- 31Funnel 06F103663H
- 34Lock 06D103623D
- 41Screw N90665001
- 42Bolt N10340802
Vehicle fitment table23
Europe (22)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A6 2.7 TDI | 2008-2011 | 20 | 2 | D6G | |
| Audi RS4 Cabrio qu. 08> | 2007- | 42 | 2 | D0W | |
| Audi RS4 qu. 07> | 2006- | 42, 5 | 2 | D0W | |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 49, 19 | 2 | D5E | |
| AUDI A6 QU.ALLROAD 07> | 2006- | 33 | 2 | ||
| Audi A4/S4/Av./qu. 05> | 2005- | 49, 22, 5 | 2 | D5E | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 20, 33, 4 | 2 | D6G | |
| FABIA/COMBI 05> | 2004- | 19 | 1 | ASZ | T9J |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 49, 5 | 2 | D5E | |
| PASSAT/4MOTION/W8 | 2002-2005 | 19 | 2 | AVF | |
| CORDOBA/SE241 | 2002-2005 | 19 | 2 | ASZ | D3E |
| IBIZA | 2001-2005 | 19 | 2 | ASZ | D3E |
| Audi A4/S4/Av./qu. | 2001-2004 | 49, 22, 5 | 2 | D5E | |
| Audi A6/Wagon/quattro | 2001-2004 | 19 | 2 | ||
| Audi A6 Allroad qu. | 2000-2005 | 49, 5 | 2 | MQ0 | |
| AUDI A2 | 2000-2005 | 10 | 2 | ATL | T60 |
| Passat/4Motion/W8 | 2000-2002 | 19 | 2 | AVF | |
| FABIA/COMBI | 1999-2004 | 19 | 1 | ASZ | T9J |
| Audi A4/Avant | 1999-2001 | 19 | 2 | ||
| Audi A4/Av.qu. | 1999-2001 | 19 | 2 | ||
| Passat syncro/4Motion | 1998-2000 | 19 | 2 | ||
| Passat | 1997-2000 | 22, 19 | 1 | EYZ,ELN |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 20, 33, 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Dowel Sleeve is fitted on: Audi A6 2.7 TDI 2008-2011; Audi RS4 Cabrio qu. 08> 2007-; Audi RS4 qu. 07> 2006-; Audi A4/S4 Cabrio./qu. 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; FABIA/COMBI 05> 2004-; Audi A4/S4 Cabrio./qu. 2002-2006; PASSAT/4MOTION/W8 2002-2005; CORDOBA/SE241 2002-2005; IBIZA 2001-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A6 Allroad qu. 2000-2005; AUDI A2 2000-2005; Passat/4Motion/W8 2000-2002; FABIA/COMBI 1999-2004; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Passat syncro/4Motion 1998-2000; Passat 1997-2000; AUDI A6L "CN"05> 2005-.
