01M409170 Thrust Washer Assembly
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

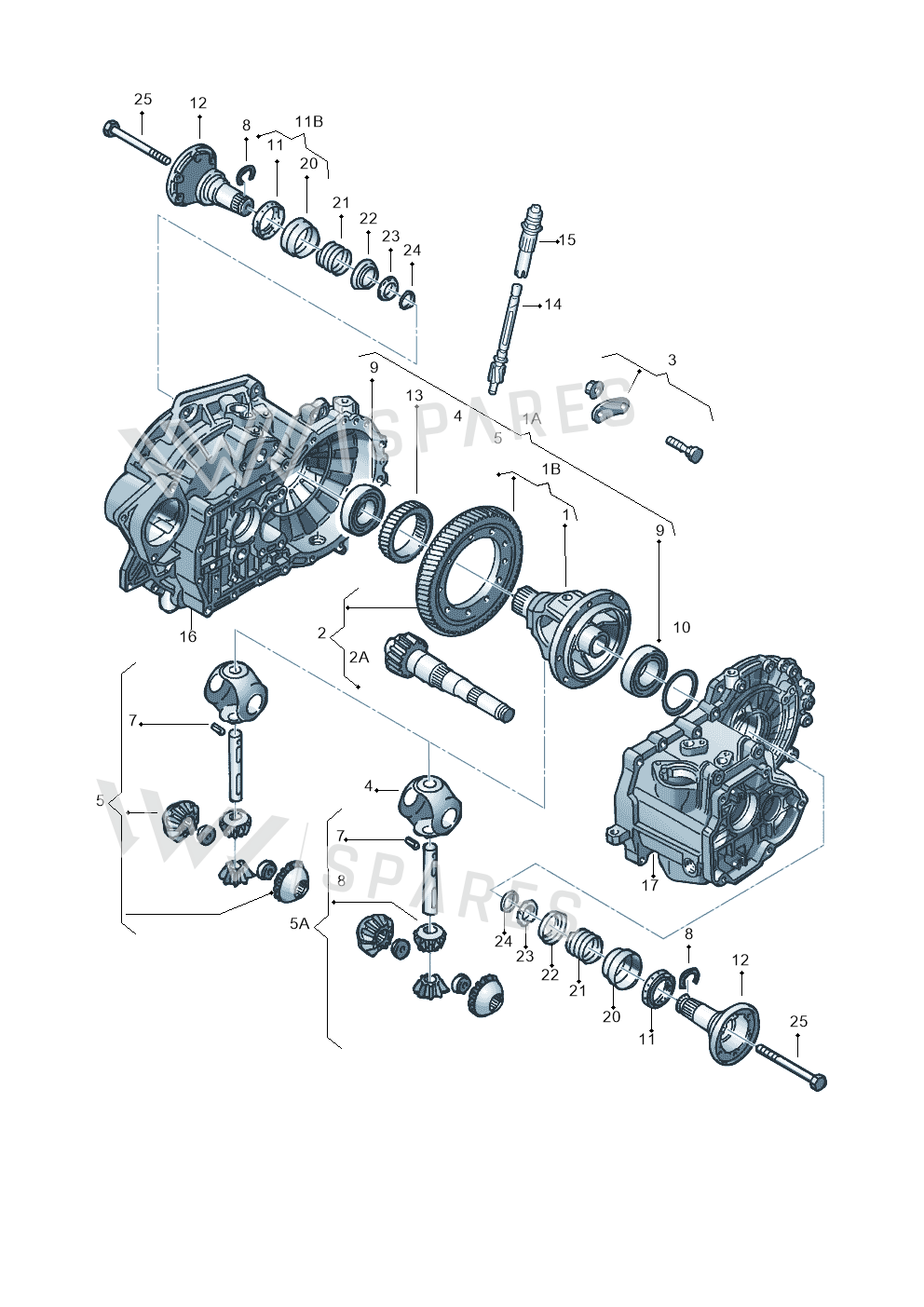

42 vehiclesThrust Washer Assembly — locate Thrust Washer Assembly in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Housing 02A409121D
- 1AGearbox 02J409021AJ
- 1AGearbox 02J409021AK
- 1AGearbox 02J409021AS
- 1AGearbox 02J409021AT
- 1AGearbox 02J409021BD
- 1AGearbox 02J409021AQ
- 1BPart 02J409109A
- 1BPart 02J409109B
- 1BPart 02J409109C
- 1BPart 02J409109F
- 1BPart 02J409111L
- 1BPart 02J409111M
- 2Gear Set 02A409143L
- 2Gear Set 02A409143M
- 2Gear Set 02A409143P
- 2Gear Set 02A409143Q
- 2Gear Set 02A409143R
- 2Gear Set 02J409143
- 3Fixing Set 02A498088A
- 4Thr Washer 02J409170
- 5Diff Pinio 02A498081B
- 5Diff Pinio 02S498081A
- 7Sleeve N90538701
- 9Mounting 096323981
- 9Mounting 113517185C
- 10Shims 02A498210
- 11Seal 084409189B
- 12Flanshaft 02A409355H
- 12Flanshaft 02A409355D
- 13Drivewheel 02A409187B
- 14Pinion 02A409197
- 15Guide 02A409193
- 20Sleeve 02A301192A
- 21Press Spring 084409379
- 22Washer 02J409378
- 23Ring 020409374
- 23Ring 02A409374
- 24Circlip N90564501
- 25Screw 02J409359
- 25Screw 097409359
Vehicle fitment table42
Europe (27)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| POLO | 2005- | 4 | 1 | G0C | |
| New Beetle 06> | 2005- | 4, 5 | 1 | TB8,T11,T5X,T52,T8C | |
| New Beetle Cabrio. 06> | 2005- | 4 | 1 | T11,T5X,T8C | |
| New Beetle Cabrio. | 2003-2005 | 4 | 1 | EGT,EGS,EGX | G0C |
| LUPO/3L TDI | 2003-2005 | 4 | 1 | G0C | |
| Jetta/Wagon | 2002-2006 | 4 | 1 | G0C | |
| Audi TT Coupe/Roadster | 2002-2006 | 4 | 1 | G0C | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 4 | 1 | ||
| POLO | 2001-2005 | 4 | 1 | G0C | |
| New Beetle | 2001-2005 | 4, 5 | 1 | G0C | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 4, 5 | 1 | G0G | |
| Jetta Wagon 02 | 2001-2002 | 4, 5 | 1 | G0C | |
| Jetta Wagon | 2001-2001 | 5, 4 | 1 | ECQ,E | |
| AUDI A2 | 2000-2005 | 4 | 1 | G0C | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 4 | 1 | G0C | |
| Audi TT Coupe/Roadster | 1999-2002 | 4 | 1 | ||
| CORDOBA/VARIO | 1999-2002 | 4 | 1 | ||
| IBIZA | 1999-2002 | 4 | 1 | ||
| POLO CLASSIC/VARIANT | 1999-2001 | 4 | 1 | ||
| POLO | 1999-2001 | 4 | 1 | ||
| caddy combi./del.van | 1998-2005 | 4 | 1 | ESR,ESS | |
| LUPO/3L TDI | 1998-2003 | 4 | 1 | ||
| New Beetle | 1998-2001 | 5, 4 | 1 | DYQ, | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 4 | 1 | ||
| Golf | 1998-2000 | 5, 4 | 1 | DVH,DVJ | |
| AROSA | 1997-2003 | 4 | 1 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 5, 4 | 1 | DVH |
Other markets (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta City "MEX"05>07 | 2006-2007 | 4, 5 | 1 | ||
| POLO CLASSIC "ZA"05> | 2005- | 4 | 1 | G0C | |
| AUDI A3 "BR."M.06> | 2005-2006 | 4 | |||
| Golf 'R32' n. "USA" | 2004-2004 | 4 | 1 | G0C | |
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 4 | 1 | G0C | |
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 4 | 1 | ||
| Jetta USA | 2001-2005 | 4, 5 | 1 | ||
| Golf BR/US | 2001-2002 | 4, 5 | 1 | ||
| AUDI A3-BRASIL. | 2000-2005 | 4 | 1 | EGS/EGY/ EXE | |
| Golf BR/US | 1999-2001 | 4, 5 | 1 | ||
| Jetta "USA"99>01 | 1998-2001 | 5, 4 | 1 | ECV, |
Platform / generic diagrams (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 4, 5 | 1 | EZK | ||
| 1C0 platform | 4, 5 | 1 | |||
| 6K0 platform | 4 | 1 | |||
| 6K0 platform | 4 | 1 | PR:ESR,ESS |
Diagrams & fitment data powered by oemdiagrams.com
Thrust Washer Assembly is fitted on: POLO 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; New Beetle Cabrio. 2003-2005; LUPO/3L TDI 2003-2005; Jetta/Wagon 2002-2006; Audi TT Coupe/Roadster 2002-2006; TOLEDO/LEON/LEON-4 2001-2006; POLO 2001-2005; New Beetle 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; AUDI A2 2000-2005; AUDI A3/S3/QUATTRO 2000-2003; Audi TT Coupe/Roadster 1999-2002; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; POLO CLASSIC/VARIANT 1999-2001; POLO 1999-2001; caddy combi./del.van 1998-2005; LUPO/3L TDI 1998-2003; New Beetle 1998-2001; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; AROSA 1997-2003; AUDI A3/S3/QUATTRO 1996-2000; Jetta City "MEX"05>07 2006-2007; POLO CLASSIC "ZA"05> 2005-; AUDI A3 "BR."M.06> 2005-2006; Golf 'R32' n. "USA" 2004-2004; POLO CLASSIC "ZA"03>05 2003-2005; POLO LIM.(SEDAN) "BR" 2002-2006; Jetta USA 2001-2005; Golf BR/US 2001-2002; AUDI A3-BRASIL. 2000-2005; Golf BR/US 1999-2001; Jetta "USA"99>01 1998-2001; 1J0 platform; 1C0 platform; 6K0 platform.
