021133382D Pipe Union
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

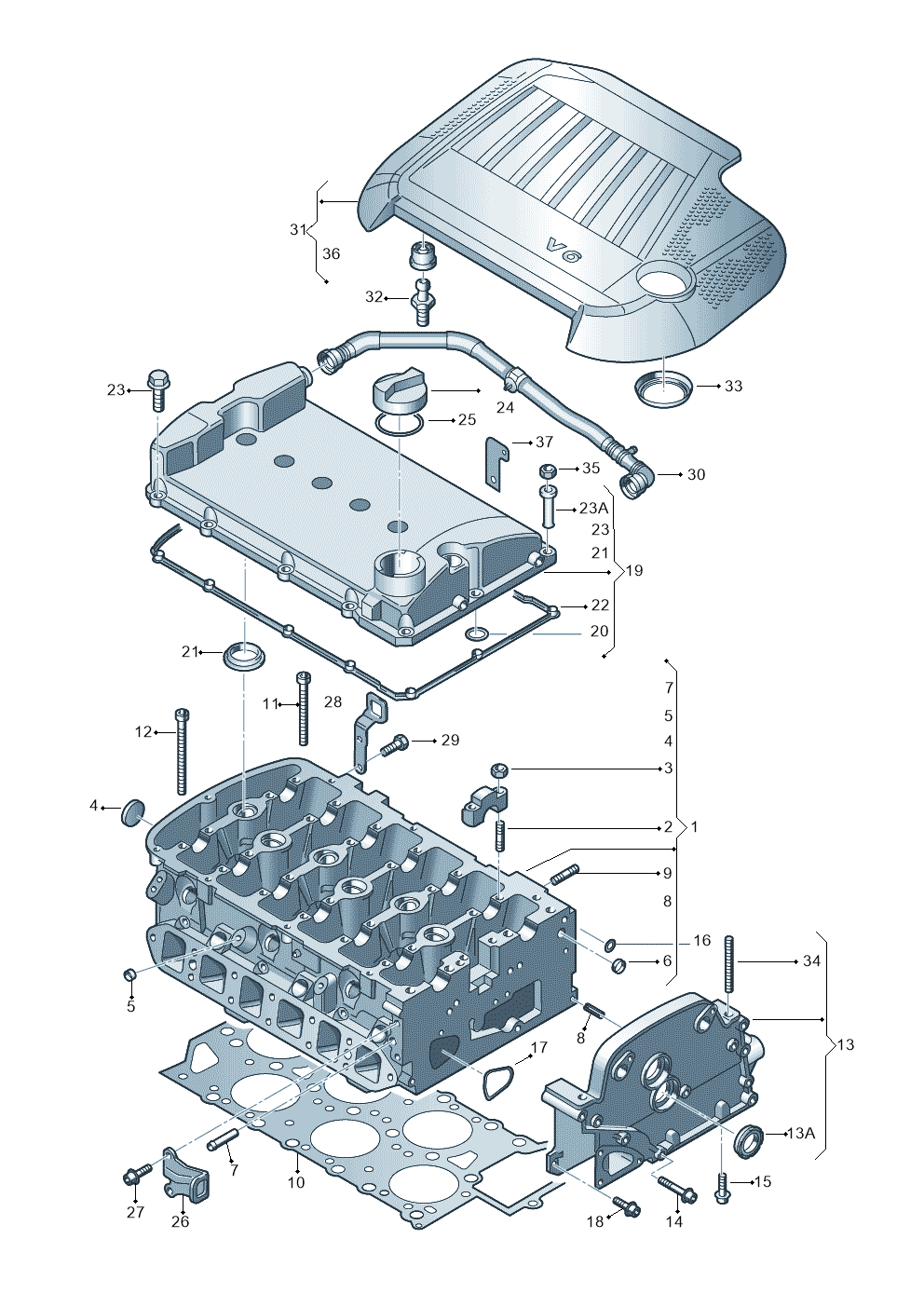

25 vehiclesPipe Union — locate Pipe Union in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Cylinder Head 066103063BX
- 1Cylinder Head 066103351A
- 2Bolt 030103397A
- 3Collar Nut N90279001
- 4Cover N90898202
- 5Cover N0119103
- 6Cover N10218601
- 8Part N90332701
- 9Bolt N90188902
- 11Screw 022103384C
- 12Screw 022103384D
- 13Cover 066109122B
- 13ASeal 066109091A
- 14Screw N10102302
- 15Screw N90355902
- 16Seal Ring N90041102
- 17Seal Ring 022121119A
- 18Screw N10227803
- 19Cover 066103429D
- 21Seal 022103484F
- 22Seal 066103483F
- 23Bolt 021103831
- 23ASleeve 021103831A
- 24Cover 06B103485C
- 25Seal 06A103483D
- 26Strap 022103390
- 27Screw N0903782
- 28Retainer 022103392
- 31Cover 066103925F
- 32Ball Joint 057103951
- 33Seal Ring 022133287
- 34Bolt N10277101
- 35Collar Nut N90175203
- 36Buffer 06A103226
Vehicle fitment table25
Europe (20)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Sharan | 2008-2010 | 7 | 1 | MC0 |
| Alhambra | 2006-2010 | 7 | 1 | |
| SHARAN/4MOTION | 2005- | 7 | 1 | MC0 |
| ALHAMBRA/4MOTION | 2005- | 7 | 1 | |
| Audi A8/S8/qu. lang | 2003-2007 | 7 | 2 | T1H |
| Jetta/Wagon | 2002-2006 | 7 | 1 | MT0 |
| PASSAT/4MOTION/W8 | 2002-2005 | 7, 5 | 1 | MT0 |
| SHARAN/4MOTION | 2002-2005 | 7 | 1 | MC0 |
| ALHAMBRA/4MOTION | 2002-2005 | 7 | 1 | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 7 | 1 | G0C |
| New Beetle | 2001-2005 | 7 | 1 | T0D |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 7 | 1 | MT0 |
| Jetta Wagon 02 | 2001-2002 | 7 | 1 | MT0 |
| Jetta Wagon | 2001-2001 | 7 | 1 | |
| Passat/4Motion/W8 | 2000-2002 | 7, 5 | 1 | MT0 |
| SHARAN/4MOTION | 2000-2002 | 7 | 1 | |
| ALHAMBRA/4MOTION | 2000-2002 | 7 | 1 | |
| New Beetle | 1998-2001 | 7 | 1 | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 7 | 1 | |
| Golf | 1998-2000 | 7 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 7 | 1 | MT0 |
| Golf "BR.","USA"03>07 | 2002-2007 | 7 | 1 | MR0 |
| Jetta USA | 2001-2005 | 7 | 1 | MR0 |
| Golf BR/US | 2001-2002 | 7 | 1 | |
| Eurovan | 1998-2003 | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Pipe Union is fitted on: Sharan 2008-2010; Alhambra 2006-2010; SHARAN/4MOTION 2005-; ALHAMBRA/4MOTION 2005-; Audi A8/S8/qu. lang 2003-2007; Jetta/Wagon 2002-2006; PASSAT/4MOTION/W8 2002-2005; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; TOLEDO/LEON/LEON-4 2001-2006; New Beetle 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; Passat/4Motion/W8 2000-2002; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; New Beetle 1998-2001; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; Golf 'R32' n. "USA" 2004-2004; Golf "BR.","USA"03>07 2002-2007; Jetta USA 2001-2005; Golf BR/US 2001-2002; Eurovan 1998-2003.
