027903133D Angled Bracket
- Discontinued Apr 2011
- Current number
- 027903133DThis pageNot stocked
Sep 1995
- Discontinued Apr 2011027903251DDiscontinued
Apr 2011 - Current number034903555BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

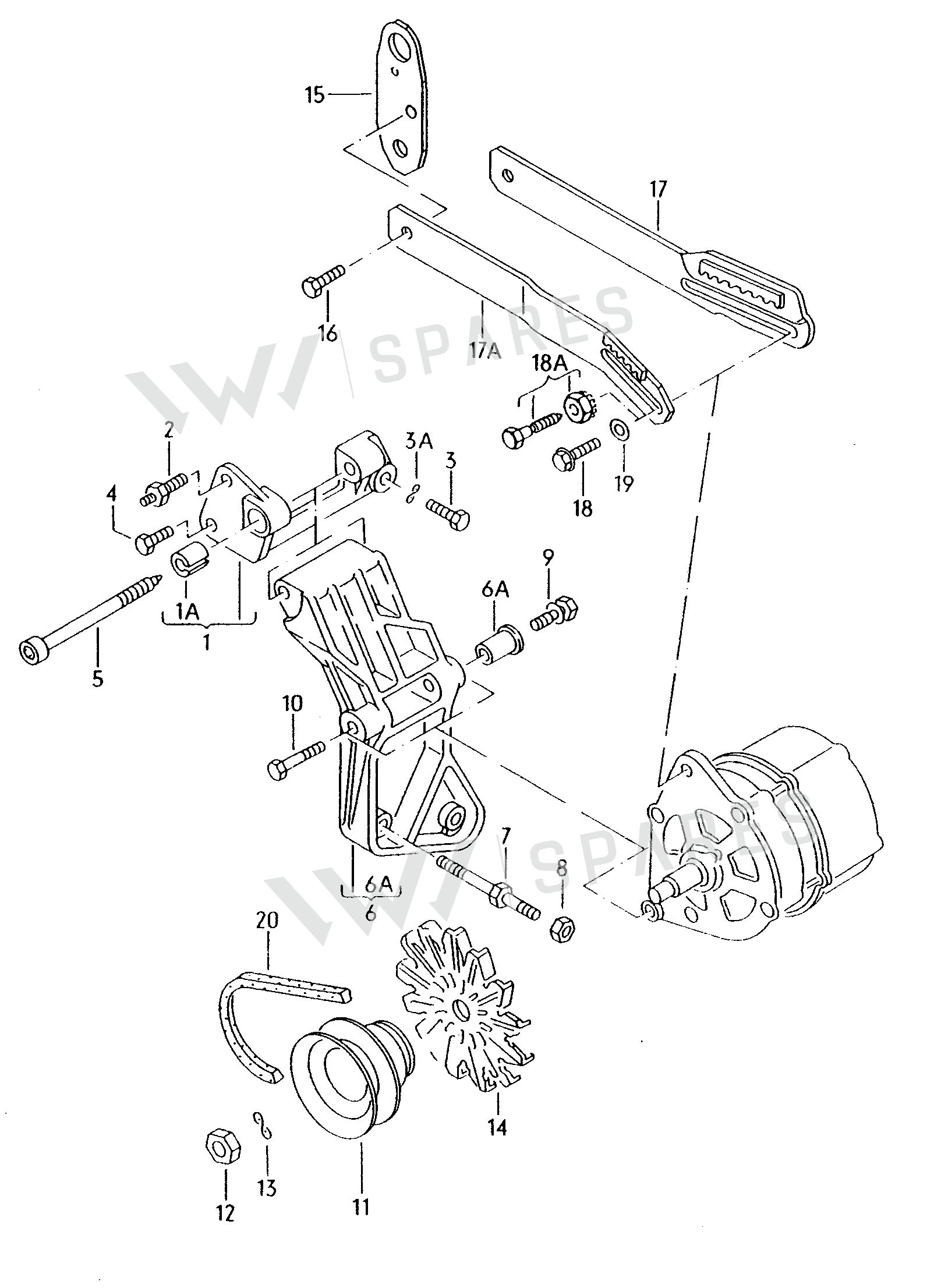

7 vehiclesAngled Bracket — locate Angled Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Bracket 049903103B
- 1ABush 049903149
- 2Bolt 049109166
- 3Bolt N01024222
- 3AWasher N0122293
- 4Bolt N01024118
- 5Screw N0447591
- 6ABush 037260921
- 7Stud 051260821
- 8Ut Hexagon Nut Self-locking Hexagon Nut N90074401
- 9Bolt N0903142
- 11Pulley 027903119
- 12Part N0111135
- 13Washer N0122333
- 14Fan Wheel 034903171
- 14Fan Wheel 068903171
- 16Bolt N0195024
- 17Bracket 027903133E
- 17ABracket 027903251D
- 18Bolt N0102464
- 18Bolt N0197002
- 19Washer N90033301
- 20V-belt 027903137
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Passat | 1989-1991 | 17A | 1 |
| Jetta | 1989-1991 | 17A | 1 |
| Jetta 89 | 1988-1989 | 17A | 1 |
| Jetta 88 | 1987-1988 | 17A | 1 |
| Jetta 87 | 1986-1987 | 17A | 1 |
| Jetta 86 | 1985-1986 | 17A | 1 |
| Scirocco | 1983-1989 | 17A | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Angled Bracket is fitted on: Passat 1989-1991; Jetta 1989-1991; Jetta 89 1988-1989; Jetta 88 1987-1988; Jetta 87 1986-1987; Jetta 86 1985-1986; Scirocco 1983-1989.
