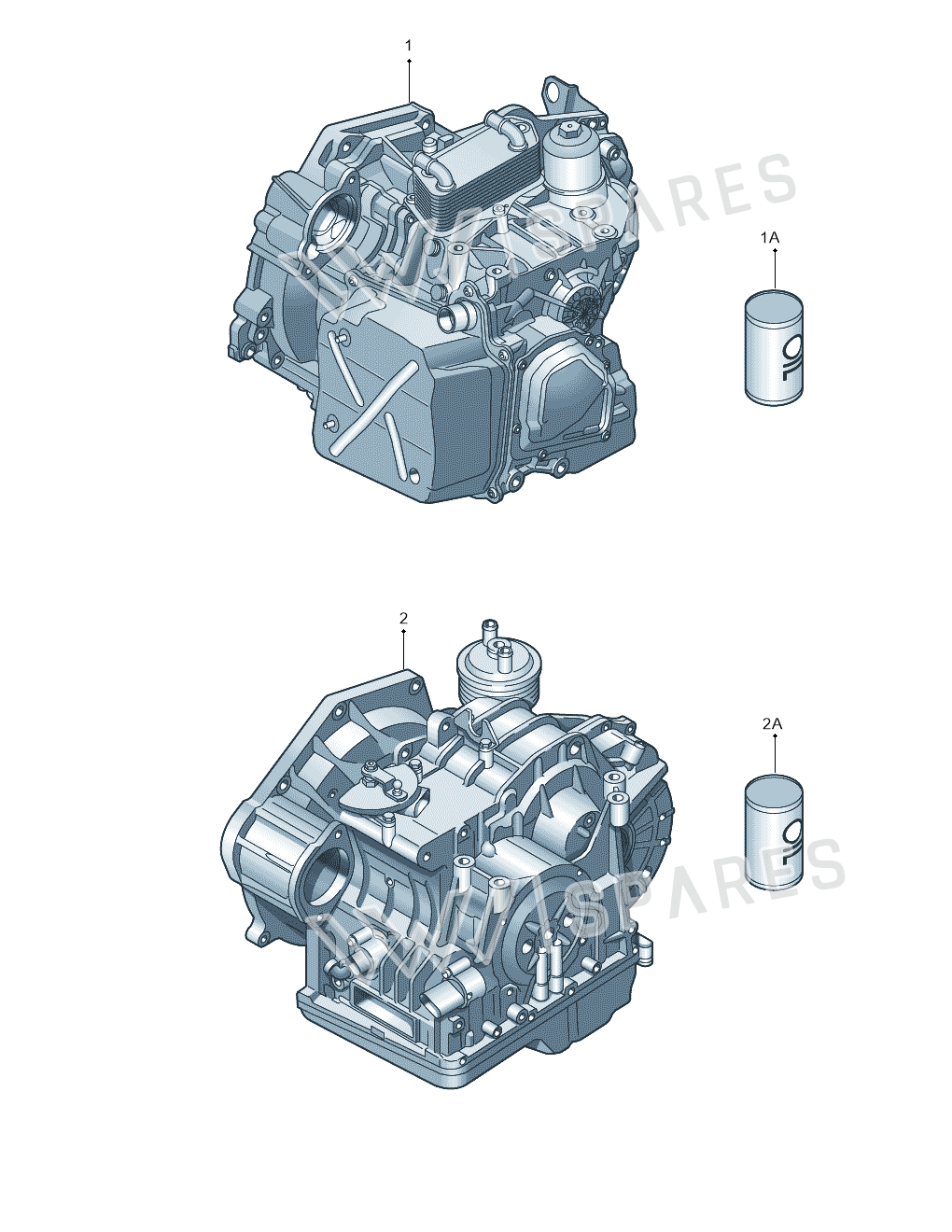

Gearbox (6-Speed Dual Clutch Gearbox) exploded parts diagram — LEON 06> · 2005-, position 1
Exploded view
LEON 06> · 2005- · position 1Full diagram ↓
02E300050EX00M

02E300050EX00M Gearbox (6-Speed Dual Clutch Gearbox)

£6,615.53
£5,467.38 excl. VAT
Supersession road4 numbers since 2011
  1. 02E300044DX008Superseded
    Jan 2011
  2. 02E300050EX005Superseded
    Aug 2011
  3. 02E300050EX00HNot stocked
    Apr 2014
  4. 02E300050EX00MThis pageDiscontinued
    Mar 2024
Availability: Discontinued — no longer orderable

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Gearbox (6-speed dual clutch gearbox) — locate Gearbox (6-Speed Dual Clutch Gearbox) in the official exploded view and explore the surrounding assembly.

You are ordering the 6-speed dual clutch gearbox version — 02E300050EX00M. The diagram shows its base part number 02E300050EX.

Parts in this assembly25
Vehicle fitment table1

Europe (1)

VehicleYearsPos.RemarkPR
LEON 06>2005-1JPK,KMY,KCV+PR

Diagrams & fitment data powered by oemdiagrams.com

Gearbox (6-Speed Dual Clutch Gearbox) is fitted on: LEON 06> 2005-.
