02H409053D Final Drive Gearbox
- 0A5300011Not stocked
Mar 2004 - 0A5300011BNot stocked
Mar 2005 - 0A5300015XNot stocked
Oct 2021 - 02H409053DThis pageDiscontinued
Feb 2024
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

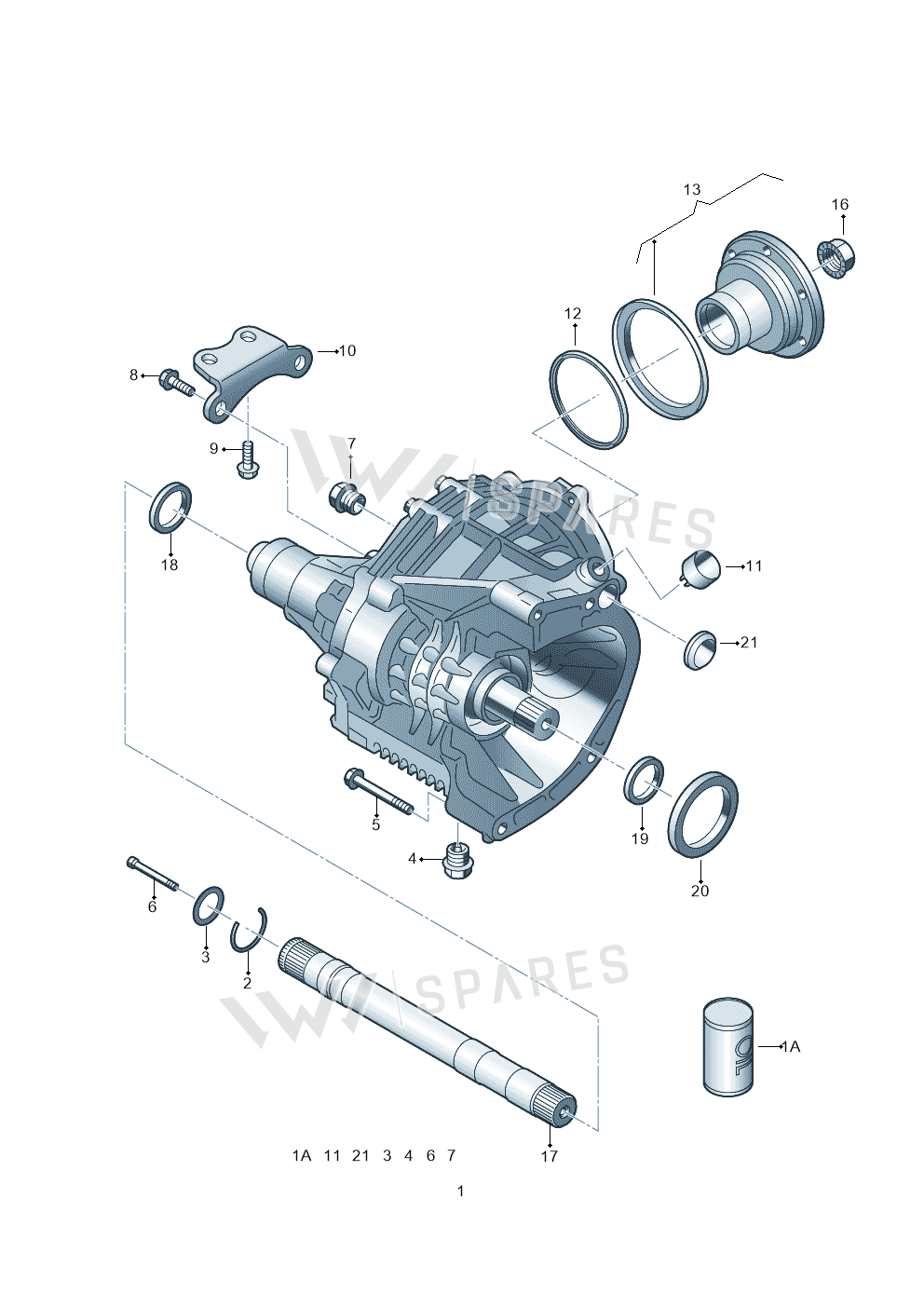

8 vehiclesFinal Drive Gearbox — locate Final Drive Gearbox in the official exploded view and explore the surrounding assembly.
Parts in this assembly14
- 1Gearbox 02H409053C
- 1AAxle Oil G052145S2
- 2Circlip 0A5409413B
- 3Seal Ring 01M323255
- 4Screw 02M409057
- 11Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 12Seal 02N409189
- 13Flange 02H409271
- 16Part N90443801
- 17Stub Shaft 02H409292A
- 18Seal Washer 02H409255
- 19Seal Washer 02H409529
- 20Seal Washer 02H409400A
- 21Cover 03C103113
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| transp. caravelle | 2008-2009 | 1 | 1 | KLF | |
| transp. dropside | 2008-2009 | 1 | 1 | G0L | |
| TRANSPORTER GESCHL. 08 | 2007- | 1 | 1 | JKT,JKU,KCK, | |
| TRANSPORTER OFFEN 08 | 2007- | 1 | 1 | G0L | |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 1 | 1 | JKT,JKU | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 1 | 1 | JKT,JKU | |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 1 | 1 | JKT,JKU | G0L |
| TRANSPORTER 06 | 2005-2006 | 1 | 1 | JKT,JKU | G0L |
Diagrams & fitment data powered by oemdiagrams.com
Final Drive Gearbox is fitted on: transp. caravelle 2008-2009; transp. dropside 2008-2009; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006.
