02K301189B Shaft Oil Seal
- 020301189HSuperseded
Jan 1999 - 020301189TSuperseded
Apr 2014 - 02K301189BThis pageDiscontinued
Mar 2025
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

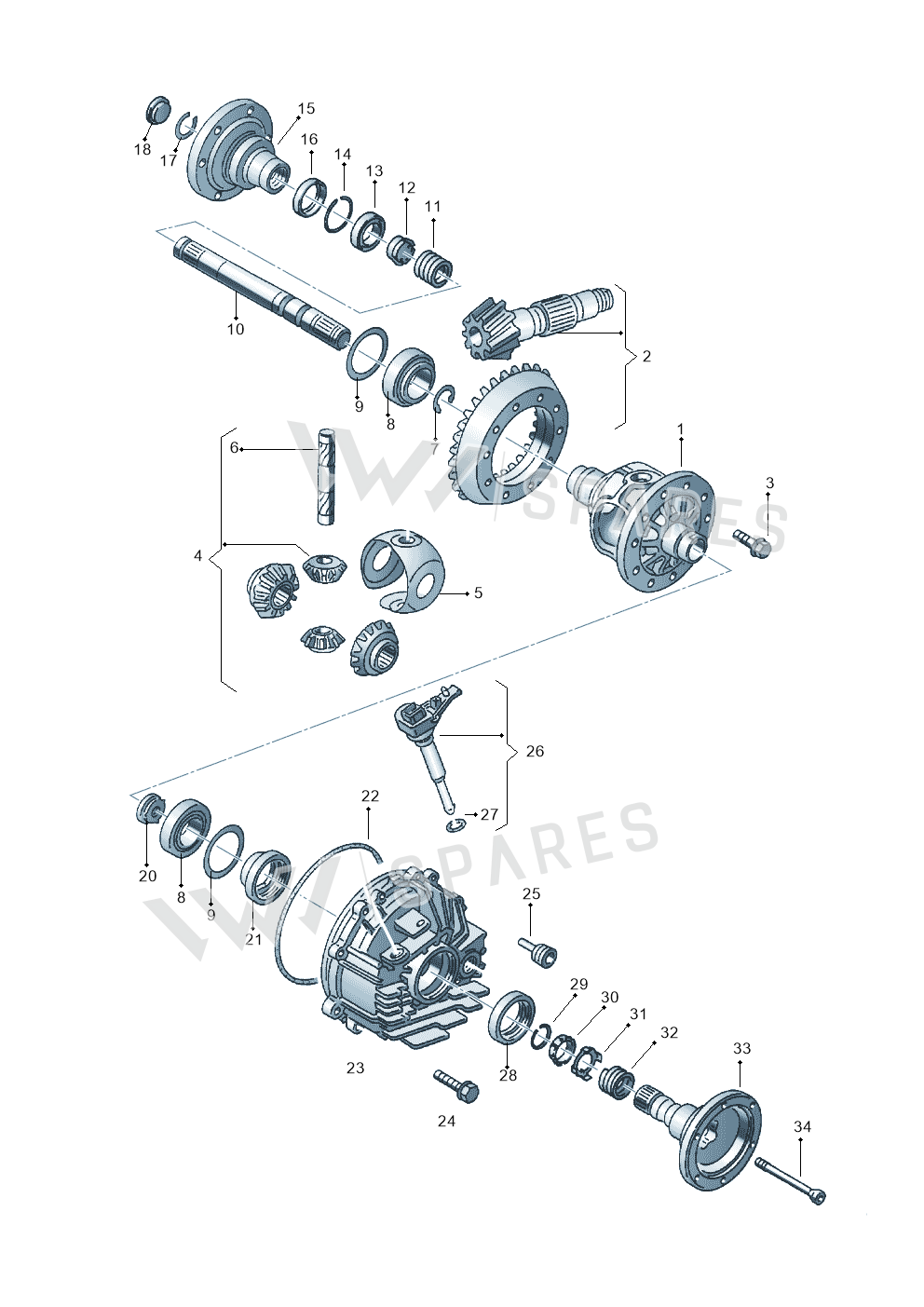

11 vehiclesShaft Oil Seal — locate Shaft Oil Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Housing 097409121A
- 2Gear Set 097409143F
- 4Diff Pinio 097498081
- 5Thr Washer 02B409170A
- 5Thr Washer 02M409170A
- 6In Shaft - Differential Pinion Shaft - 087409177
- 7Ring 097409297
- 8Mounting 096323981
- 9Washer 097409298AG
- 9Washer 097409298AJ
- 9Washer 097409298AL
- 9Washer 097409298AN
- 9Washer 097409298AQ
- 9Washer 097409298AS
- 9Washer 097409298BA
- 9Washer 097409298BC
- 9Washer 097409298BE
- 9Washer 097409298BG
- 9Washer 097409298AE
- 10Shaft 097409291B
- 11Press Spring 097409368
- 13Bearing 097409294
- 14Ring N10196002
- 16Seal Washer 016409399B
- 17Ring N10165801
- 18Cover 020409289B
- 20Part 097409373
- 21Drivewheel 097409187A
- 22Seal Ring 095321386
- 23Cover 097409173B
- 24Bolt N10128103
- 25Plug 091301141
- 26Sensor 012409191D
- 27Seal Ring N90368401
- 28Seal 020301189T
- 29Ring N90635301
- 31Washer 097409378A
- 32Press Spring 084409379
- 34Screw 097409359
Vehicle fitment table11
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 28 | 1 | G0E |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 10 | 1 | G0G |
| Jetta Wagon 02 | 2001-2002 | 10 | 1 | G0G |
| Golf | 1998-2000 | 23, 10 | 2 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| BORA-GP-FAW 07> | 2006- | 21 | 1 | |
| PASSAT LINGYU "CN."06> | 2005- | 28 | 1 | G0E |
| Golf 'R32' n. "USA" | 2004-2004 | 23, 10 | 2 | G0C |
| BORA (FAW) | 2001-2006 | 21 | 1 | |
| JETTA (FAW) 91> | 1991- | 27, 21 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3B0 platform | 28 | 1 | ||
| 1J0 platform | 23, 21 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Shaft Oil Seal is fitted on: PASSAT/4MOTION/W8 2002-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Golf 1998-2000; BORA-GP-FAW 07> 2006-; PASSAT LINGYU "CN."06> 2005-; Golf 'R32' n. "USA" 2004-2004; BORA (FAW) 2001-2006; JETTA (FAW) 91> 1991-; 3B0 platform; 1J0 platform.
