02M301291A Bolt Hex Hd With Shoul (Combi)
- WHT005486Not stocked
Jan 2014 - 02M301291AThis pageDiscontinued
Aug 2022
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

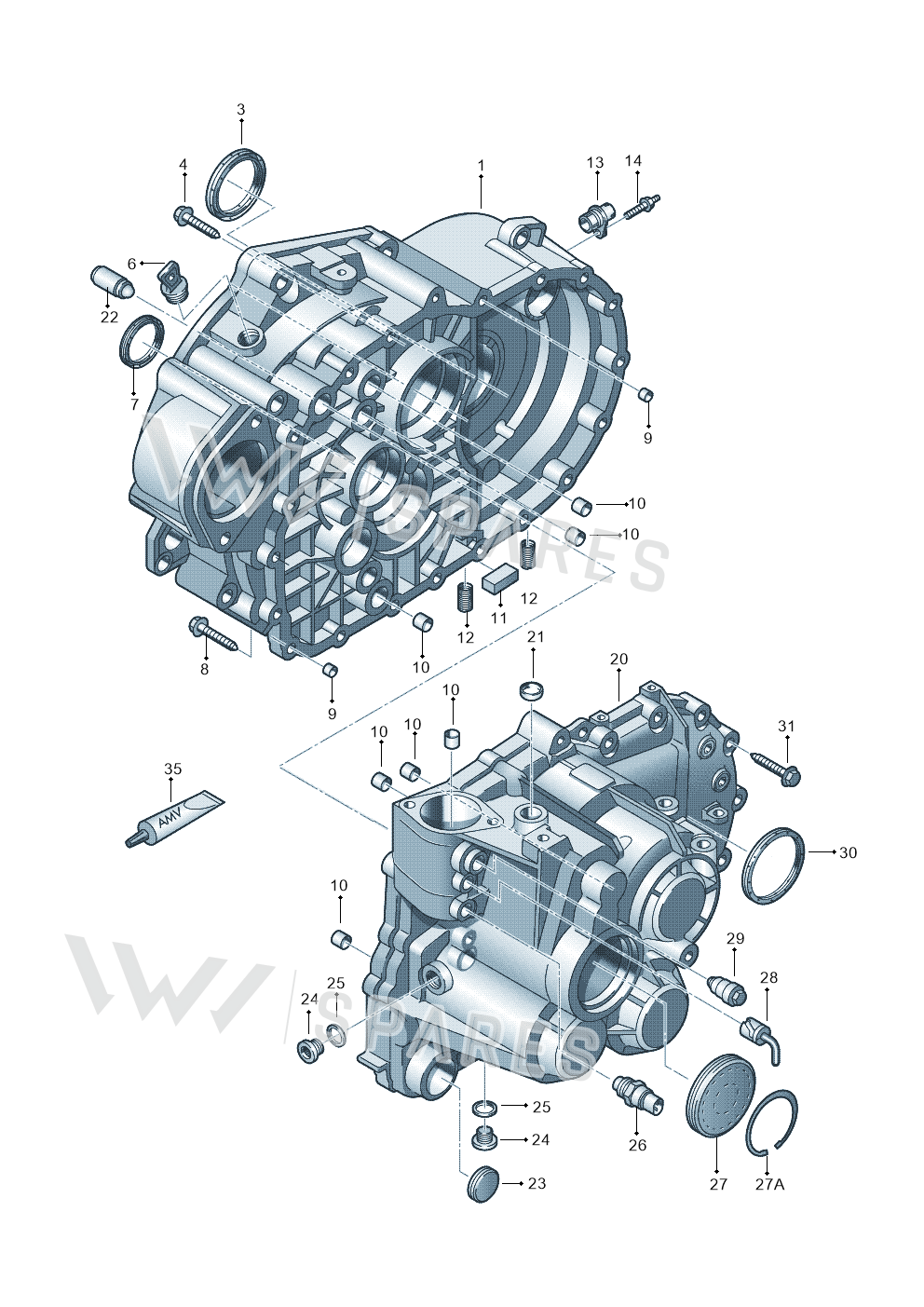

33 vehiclesBolt Hex Hd With Shoul (combi) — locate Bolt Hex Hd With Shoul (Combi) in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Housing 0A8301107
- 3Seal 02T409189C
- 4Bolt N10623801
- 4Bolt N10138905
- 6Bungs 02M301115B
- 7Seal 02M311113A
- 9Sleeve 02M301153A
- 10Bush 0A5301374
- 11Magnet 084301143A
- 20Housing 0A8301103D
- 21Cover N90925601
- 23Cover 02Q301211
- 24Screw N90917801
- 25Seal Ring N0438092
- 27Cover 02M301211B
- 30Seal Ring 02M301189B
- 35Seal Comp AMV18820003
Vehicle fitment table33
Europe (28)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALTEA 07> | 2006- | 8 | 1 | HVS,JLT,JMA, | |
| LEON 06> | 2005- | 8 | 1 | HD | |
| IBIZA 06> | 2005- | 31 | 13 | ||
| CORDOBA 06> | 2005- | 31 | 13 | ||
| Audi A3/S3/quattro | 2005-2007 | 8 | 1 | G0K | |
| TOLEDO 05> | 2004- | 8 | 1 | GNE,HDU,HVS, | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 8 | 1 | ||
| FABIA/COMBI 05> | 2004- | 8 | 1 | ||
| ALTEA | 2004-2006 | 8 | 1 | ||
| TOURAN | 2003-2005 | 8 | 1 | G0K | |
| Jetta/Wagon | 2002-2006 | 6, 8 | 1 | G0K | |
| Audi TT Coupe/Roadster | 2002-2006 | 6, 8 | 1 | G0L | |
| CORDOBA/SE241 | 2002-2005 | 6, 8 | 1 | ||
| TOLEDO/LEON/LEON-4 | 2001-2006 | 6, 8 | 1 | ||
| POLO | 2001-2005 | 8 | 1 | G0K | |
| New Beetle | 2001-2005 | 6 | 1 | G0K | |
| IBIZA | 2001-2005 | 6, 8 | 1 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 6 | 1 | G0K | |
| Jetta Wagon 02 | 2001-2002 | 6 | 1 | G0K | |
| Jetta Wagon | 2001-2001 | 6 | 1 | ||
| OCTAVIA/COMBI/4X4 01> | 2000- | 12, 8 | 13 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 6, 8 | 1 | G0K | |
| FABIA/COMBI | 1999-2004 | 6 | 1 | ||
| Audi TT Coupe/Roadster | 1999-2002 | 6 | 1 | ||
| New Beetle | 1998-2001 | 6 | 1 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 6 | 1 | ||
| Golf | 1998-2000 | 6 | 1 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 6 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 6, 8 | 1 | G0K | |
| Golf "BR.","USA"03>07 | 2002-2007 | 6, 8 | 1 | G0K | |
| Jetta USA | 2001-2005 | 6, 8 | 1 | G0K | |
| Golf BR/US | 2001-2002 | 6, 8 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 6 | 1 |
