034115147A Radial Shaft Seal
- 034115147AThis pageNot stocked
Jan 1999 - 054115147BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

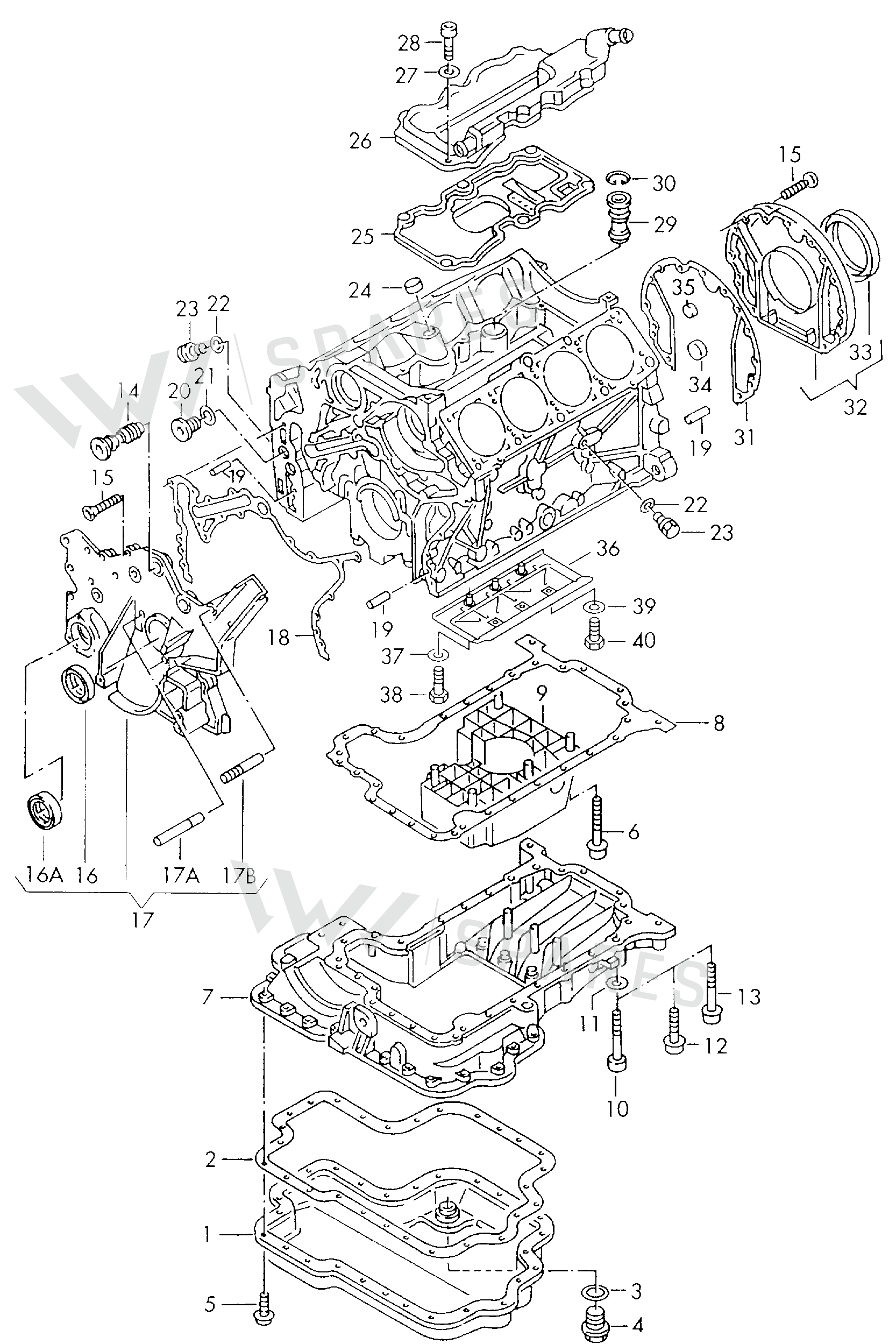

51 vehiclesRadial Shaft Seal — locate Radial Shaft Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Oil Sump 077103602
- 2Seal 077103610C
- 3Seal Ring N0138503
- 4Plug 028103059A
- 5Bolt N90008401
- 6Screw N0447033
- 7Oil Sump 077103603J
- 8Seal 077103609E
- 9Insert 077103138B
- 10Screw N0447553
- 11Washer N0152782
- 12Screw N10172501
- 13Screw N10080202
- 14Vent 077115540A
- 15Bolt 077103531A
- 15Collar Nut N90175203
- 15Bolt N90537301
- 16Seal Washer 054115147B
- 17Flange 077103151D
- 17BBolt N0443951
- 18Seal 077103161D
- 19Part N0432072
- 20Screw N0160291
- 21Seal Ring N0138321
- 22Seal Ring N0138132
- 23Screw N0161531
- 24Cover N0119033
- 25Plate 077103197B
- 26Cover 077103129E
- 27Washer N01152423
- 28Screw N0147432
- 29Valve 078103175D
- 31Seal 077103181F
- 32Flange 077103171J
- 34Cover N0119082
- 36Plate 077103097A
- 37Washer N01152520
- 38Bolt N0103404
- 39Washer N0115332
- 40Bolt N01023911
Vehicle fitment table51
Europe (50)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8 | 1996-1998 | 16, 7 | 1 |
| Audi A8 qu. | 1996-1998 | 16, 7 | 1 |
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | 16 | 1 |
| Audi A6/Wagon F >4A-W | 1996-1997 | 2 | 1 |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 7 | 1 |
| Audi A6/Wagon 96 | 1995-1996 | 2 | 1 |
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 16 | 1 |
| Audi Coupe quattro/3 96 | 1995-1995 | 2 | 1 |
| AUDI 80 Av.Rs2 qu. | 1994-1995 | 2 | 1 |
| Audi A6/Wagon 95 | 1994-1995 | 2 | 1 |
| Audi A6/S6/Wagon.qu. 95 | 1994-1995 | 16, 2 | 1 |
| Audi 90 qu. 95 | 1994-1995 | 2, 7 | 1 |
| Audi Coupe/3 | 1994-1995 | 7 | 1 |
| Audi Cabrio. | 1993-1998 | 2, 7 | 1 |
| Audi 90 | 1993-1995 | 2 | 1 |
| Audi 100/Wagon 94 | 1993-1994 | 2 | 1 |
| Audi 90 qu. | 1992-1994 | 2, 7 | 1 |
| Audi 100/Wagon qu. | 1992-1994 | 16, 2 | 1 |
| Audi 90 93 | 1992-1993 | 2, 7 | 1 |
| Audi 100/Wagon 93 | 1992-1993 | 2, 7 | 1 |
| Audi 100/Wagon 92 | 1991-1992 | 2, 7 | 1 |
| Audi 100/Wagon qu. 92 | 1991-1992 | 2, 7 | 1 |
| Audi V8 | 1989-1993 | 16 | 1 |
| Audi Coupe qu. | 1989-1991 | 2, 7 | 1 |
| Audi 100/Wagon | 1989-1990 | 3 | 1 |
| AUDI COUPE/3 | 1988-1994 | 2, 7 | 1 |
| Audi 200 Turbo | 1988-1990 | 4 | 1 |
| Audi 100/Wagon qu. | 1988-1990 | 2 | 1 |
| Audi 200T/Wagon qu. | 1988-1990 | 2 | 1 |
| Audi 100/Wagon 89 | 1988-1989 | 3 | 1 |
| Audi 80/90 qu. | 1987-1991 | 2 | 1 |
| Audi 80/90 | 1987-1989 | 4 | 1 |
| Audi 5000 S/Wagon qu. | 1987-1988 | 2 | 1 |
| AUDI COUPE/2 88 | 1987-1987 | 4 | 1 |
| Audi 5000 S/Wagon | 1986-1988 | 4, 3 | 1 |
| Audi 5000 Turbo | 1984-1988 | 4 | 1 |
| Audi 5000/Wagon qu. | 1984-1988 | 2 | 1 |
| Audi 4000 S/CS qu. | 1984-1987 | 2 | 1 |
| AUDI COUPE QUATTRO/2 | 1984-1987 | 2 | 1 |
| Audi 5000 S/Wagon | 1984-1986 | 3 | 1 |
| Audi 5000 S/Wagon 84 | 1983-1984 | 4, 3 | 1 |
| Audi 4000 S qu. 84 | 1983-1984 | 2 | 1 |
| Audi quattro | 1982-1987 | 2 | 1 |
| Audi Coupe | 1981-1987 | 4 | 1 |
| Audi 4000 | 1981-1984 | 4 | 1 |
| Audi 5000 | 1981-1982 | 4, 3 | 1 |
| Audi 5000 Turbo | 1979-1982 | 4 | 1 |
| Audi 4000 | 1979-1981 | 4 | 1 |
| Audi 5000/Wagon | 1979-1981 | 2, 3 | 1 |
| Audi 5000 | 1977-1979 | 2, 3 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| TYPE 2 "ZA" | 1995-2003 | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Radial Shaft Seal is fitted on: Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi A6/S6/Wg.qu.F>4A 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Audi A6/Wagon 96 1995-1996; Audi A6/S6/Wagon qu. 96 1995-1996; Audi Coupe quattro/3 96 1995-1995; AUDI 80 Av.Rs2 qu. 1994-1995; Audi A6/Wagon 95 1994-1995; Audi A6/S6/Wagon.qu. 95 1994-1995; Audi 90 qu. 95 1994-1995; Audi Coupe/3 1994-1995; Audi Cabrio. 1993-1998; Audi 90 1993-1995; Audi 100/Wagon 94 1993-1994; Audi 90 qu. 1992-1994; Audi 100/Wagon qu. 1992-1994; Audi 90 93 1992-1993; Audi 100/Wagon 93 1992-1993; Audi 100/Wagon 92 1991-1992; Audi 100/Wagon qu. 92 1991-1992; Audi V8 1989-1993; Audi Coupe qu. 1989-1991; Audi 100/Wagon 1989-1990; AUDI COUPE/3 1988-1994; Audi 200 Turbo 1988-1990; Audi 100/Wagon qu. 1988-1990; Audi 200T/Wagon qu. 1988-1990; Audi 100/Wagon 89 1988-1989; Audi 80/90 qu. 1987-1991; Audi 80/90 1987-1989; Audi 5000 S/Wagon qu. 1987-1988; AUDI COUPE/2 88 1987-1987; Audi 5000 S/Wagon 1986-1988; Audi 5000 Turbo 1984-1988; Audi 5000/Wagon qu. 1984-1988; Audi 4000 S/CS qu. 1984-1987; AUDI COUPE QUATTRO/2 1984-1987; Audi 5000 S/Wagon 1984-1986; Audi 5000 S/Wagon 84 1983-1984; Audi 4000 S qu. 84 1983-1984; Audi quattro 1982-1987; Audi Coupe 1981-1987; Audi 4000 1981-1984; Audi 5000 1981-1982; Audi 5000 Turbo 1979-1982; Audi 4000 1979-1981; Audi 5000/Wagon 1979-1981; Audi 5000 1977-1979; TYPE 2 "ZA" 1995-2003.
