035133507A Banjo Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

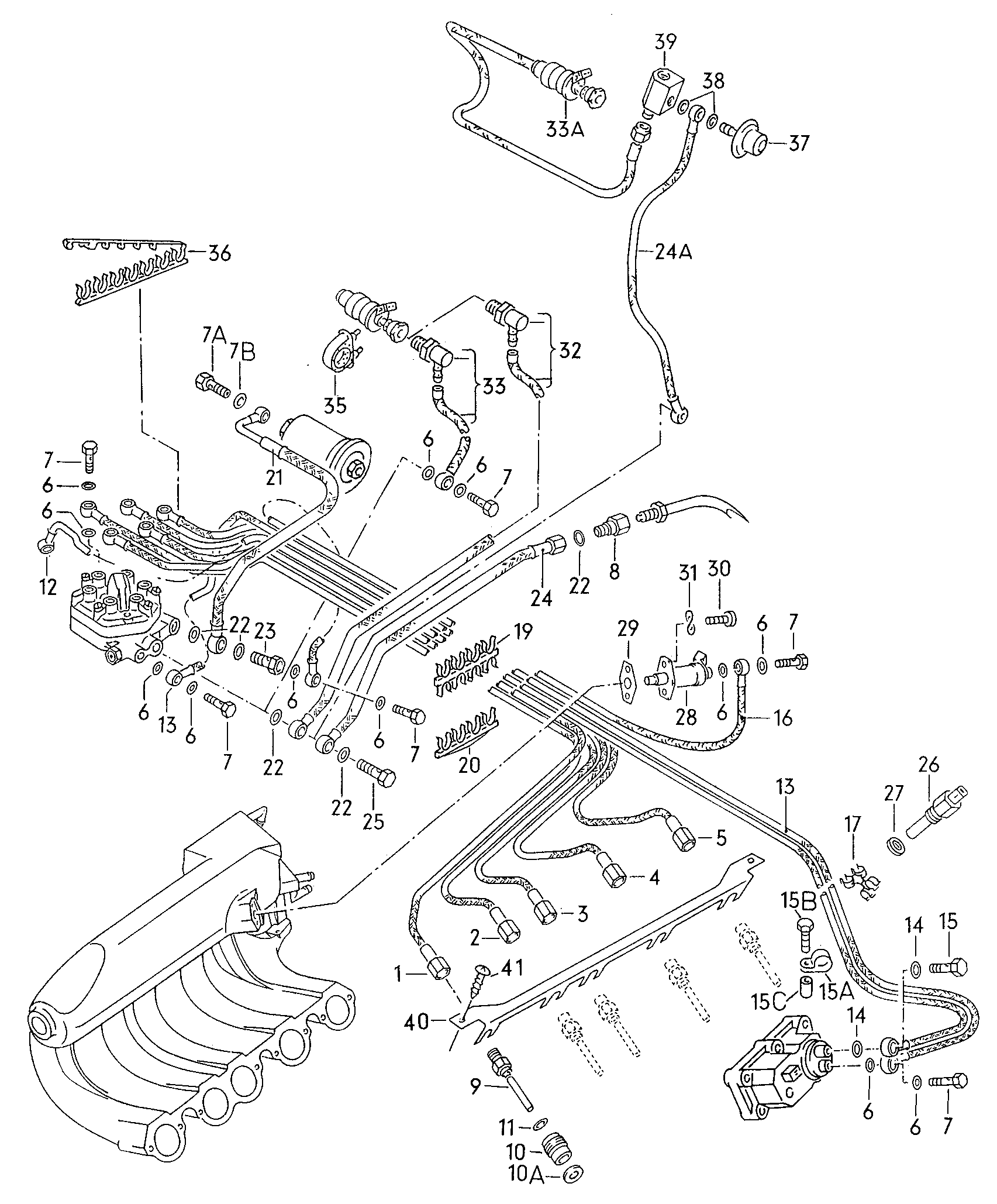

6 vehiclesBanjo Bolt — locate Banjo Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 3Pipe 035133319E
- 6Seal Ring N0138076
- 7AValve 035133529C
- 7BSeal Ring N0138128
- 8Intermed 035133545
- 9Valve 049133551A
- 10Insert 063133555A
- 10ASeal Ring N0138443
- 11Seal Ring 034133557E
- 14Seal Ring N0138115
- 15Screw N0210755
- 15AClamp N0206201
- 15BBolt N01021226
- 15CPipe 431253205B
- 17Bracket 049133687B
- 19Bracket 035133689
- 21Pipe 035133715AA
- 23Screw 049133245
- 24Pipe 035133717AE
- 24APipe 035133717AA
- 25Screw 048133505
- 26Switch 043906163A
- 28Valve 035906171C
- 28Valve 035906171A
- 29Seal 050906179
- 30Screw N01470210
- 31Washer N0122265
- 33Pipe 035133747G
- 33AValve 035906267G
- 35Bush 035906273
- 36Bracket 035133689B
- 37Damper 035133533A
- 39Union 035133729D
- 40Strip 034103592D
- 41Part N0147412
Vehicle fitment table6
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi 5000 S/Wagon 84 | 1983-1984 | 7, 62 | 10 | |
| Audi Coupe | 1981-1987 | 15 | 7 | |
| Audi 4000 | 1981-1984 | 7B | 5 | "J..":JL |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum | 1986-1988 | 15 | 7 | |
| Quantum syncro | 1985-1988 | 15 | 7 | |
| Quantum 86 | 1985-1986 | 15 | 7 |
Diagrams & fitment data powered by oemdiagrams.com
Banjo Bolt is fitted on: Audi 5000 S/Wagon 84 1983-1984; Audi Coupe 1981-1987; Audi 4000 1981-1984; Quantum 1986-1988; Quantum syncro 1985-1988; Quantum 86 1985-1986.
