036103602J Oil Sump
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

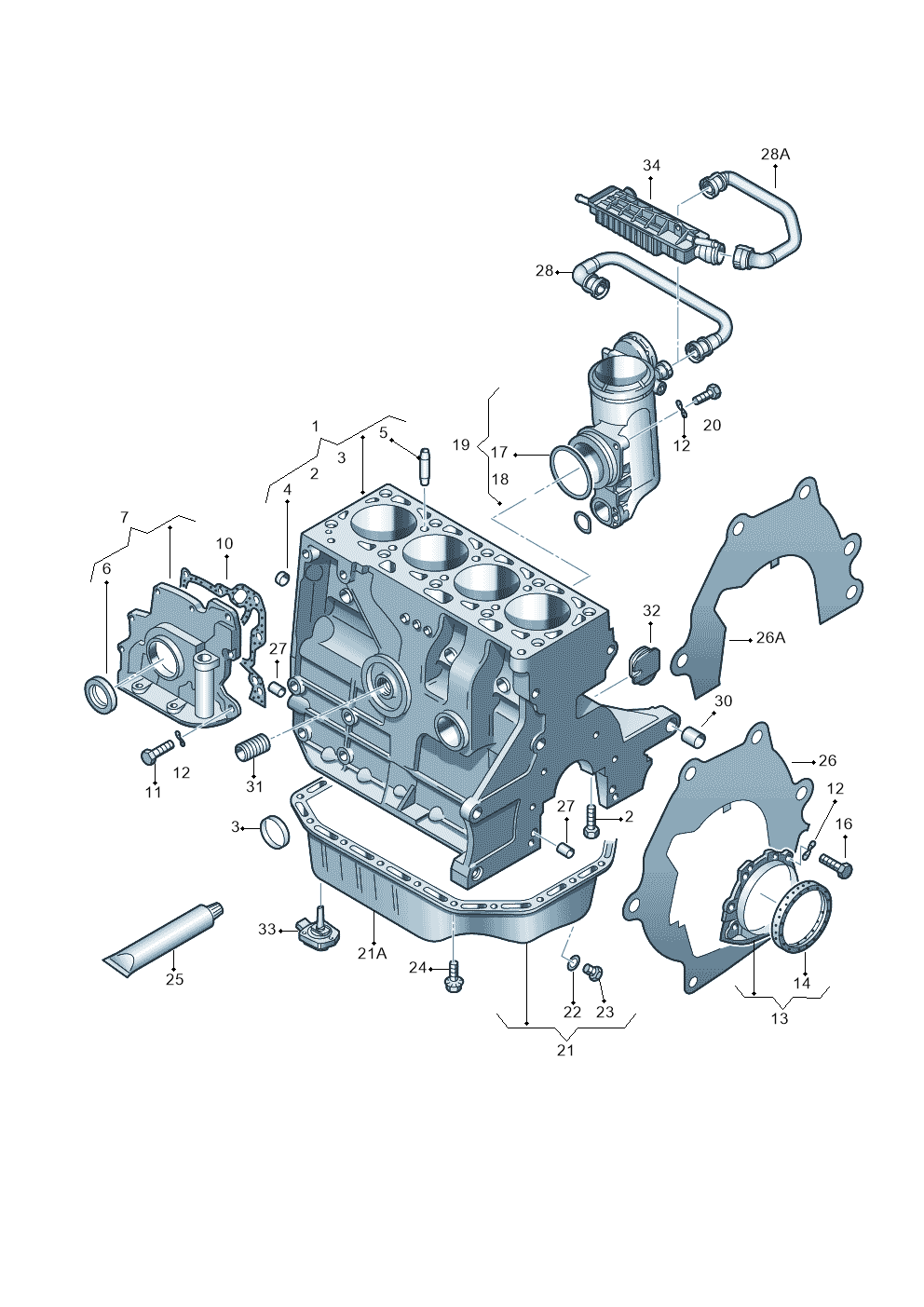

10 vehiclesOil Sump — locate Oil Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Cylinder Block 036103101BH
- 1Cylinder Block 036103101BF
- 3Cover 036103113
- 3Cover 036103113A
- 4Cover 03C103113
- 4Cover N0119096
- 5Part 026103139
- 6Seal 036103085H
- 10Seal 032103161K
- 13Flange 030103171S
- 13Flange 036103171B
- 16Bolt N90842402
- 17Seal Ring N90617501
- 18Seal Ring 036103677
- 19Separator 036103464AH
- 20Screw N10432603
- 21AOil Sump 032103603AB
- 21AOil Sump 036103601AM
- 23Bolt N90813202
- 24Screw N10248003
- 24Screw N90500605
- 25Seal D176600A1
- 26Spacer Pl 036103551S
- 26ASpacer Pl 036103551K
- 27Part N0432072
- 28Hose 036103493CP
- 28AHose 036103493EC
- 32Bungs 030103037D
Vehicle fitment table10
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| caddy panel van | 2008-2010 | 21A | 1 | D4W | |
| Polo | 2008-2009 | 21A | 1 | D4W,QG1,QG2,G0C,G1A | |
| GOLF VARIANT 07> | 2007- | 21A | 1 | D4W,QG1,QG2 | |
| GOLF PLUS 08> | 2007- | 21A | 1 | D4W,QG1,QG2 | |
| GOLF PLUS 05> | 2005- | 21A | 1 | BUD | D4W,QG1,QG2 |
| POLO | 2005- | 21A | 1 | BUD | QG1,QG2,TT1 |
| CADDY | 2004- | 21A | 1 | BUD | D4W |
| TOLEDO 05> | 2004- | 21A |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 21A | 1 | D4W,QG1,QG2 | |
| Golf/Rabbit | 2005-2007 | 21A | 1 | BUD | D4W,QG1,QG2 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Sump is fitted on: caddy panel van 2008-2010; Polo 2008-2009; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; GOLF PLUS 05> 2005-; POLO 2005-; CADDY 2004-; TOLEDO 05> 2004-; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
