036131547G Seal
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

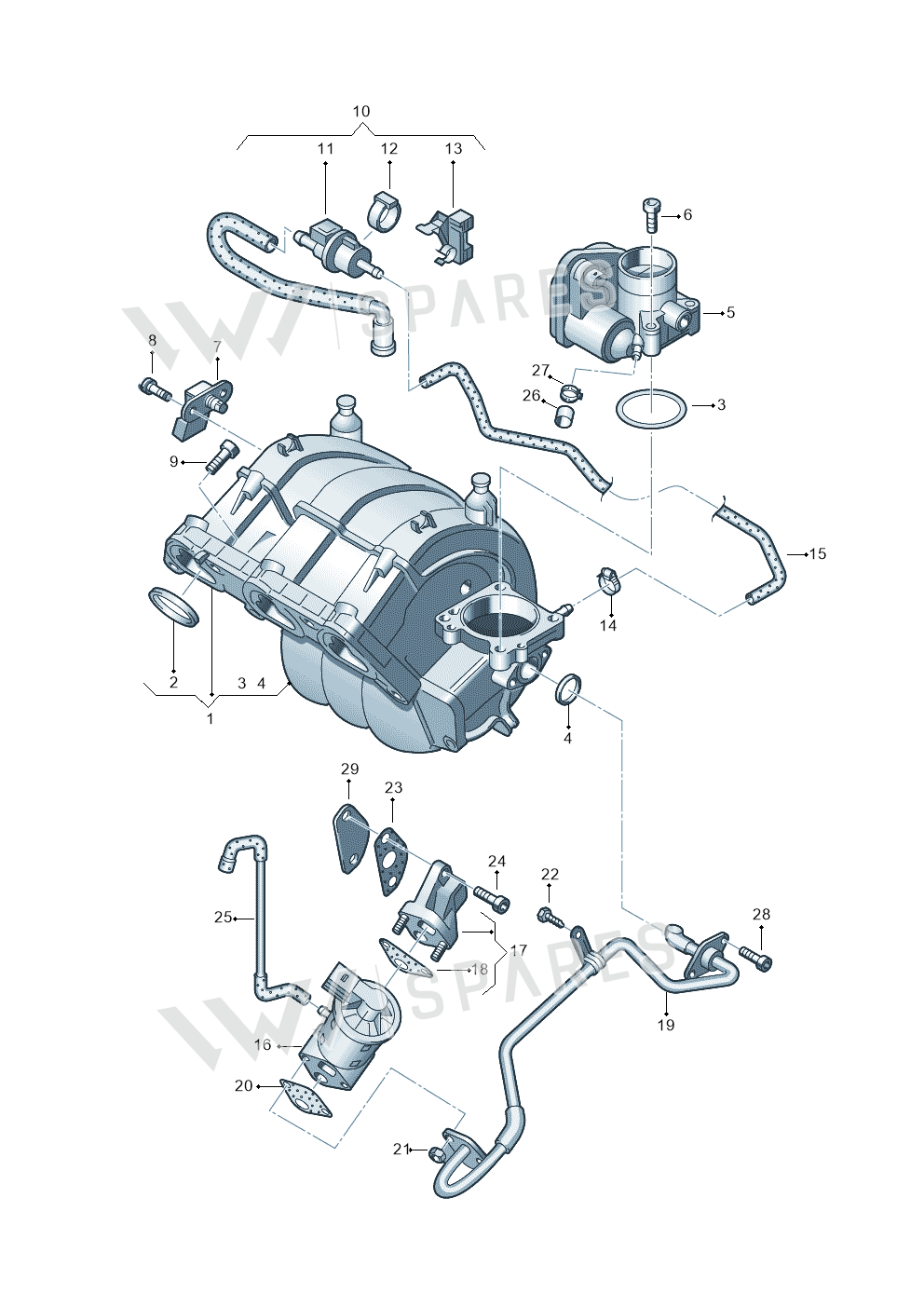

14 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Connection 03E129711C
- 2Seal 03E129717B
- 3Seal 03E133073
- 4Seal 036131550J
- 5Thr Flap 036133062L
- 5Thr Flap 03C133062B
- 6Screw N10551401
- 7Sensor 06B906051
- 8Bolt N10442002
- 9Screw N10022602
- 10Hose 6Q0133352AG
- 11Valve 6Q0906517
- 12Thrustring 6Q0133459A
- 13Retainer 6Q0133519A
- 14Clamp N90686701
- 15Hose 03E133518D
- 16Valve 03D131503D
- 17Adapter 036131818C
- 18Seal 036131547F
- 21Collar Nut N02300313
- 22Screw N10248001
- 24Screw N01472613
- 25Hose 03E133778B
- 25Hose 03E133778
- 26Part 035133335
- 27Clamp N10196901
- 28Screw N10611201
Vehicle fitment table14
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| POLO | 2005- | 23 | 1 | ||
| IBIZA 06> | 2005- | 23 | 1 | MA5 | |
| CORDOBA 06> | 2005- | 23 | 1 | MA5 | |
| FABIA/COMBI 05> | 2004- | 23 | 1 | ||
| Jetta/Wagon | 2002-2006 | 13 | 1 | BCB | T27 |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 13, 36 | 1 | D3H | |
| POLO | 2001-2005 | 23 | 1 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 13 | 1 | AZD,BCB | T27 |
| Jetta Wagon 02 | 2001-2002 | 13 | 1 | AZD,BCB | T27 |
| Jetta Wagon | 2001-2001 | 13 | 1 | ||
| FABIA/COMBI | 1999-2004 | 23 | 1 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 13, 36 | 1 | ||
| Golf | 1998-2000 | 13, 36 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 13 | 1 | BCB | T27 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: POLO 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; FABIA/COMBI 05> 2004-; Jetta/Wagon 2002-2006; TOLEDO/LEON/LEON-4 2001-2006; POLO 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; FABIA/COMBI 1999-2004; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; Golf 'R32' n. "USA" 2004-2004.
