038109451B Adjusting Screw With Ballhead
- 038130073RNot stocked
Dec 2000 - 038130073ACNot stocked
Mar 2004 - 038109451BThis pageNot stocked
Jan 2006 - WHT000530Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

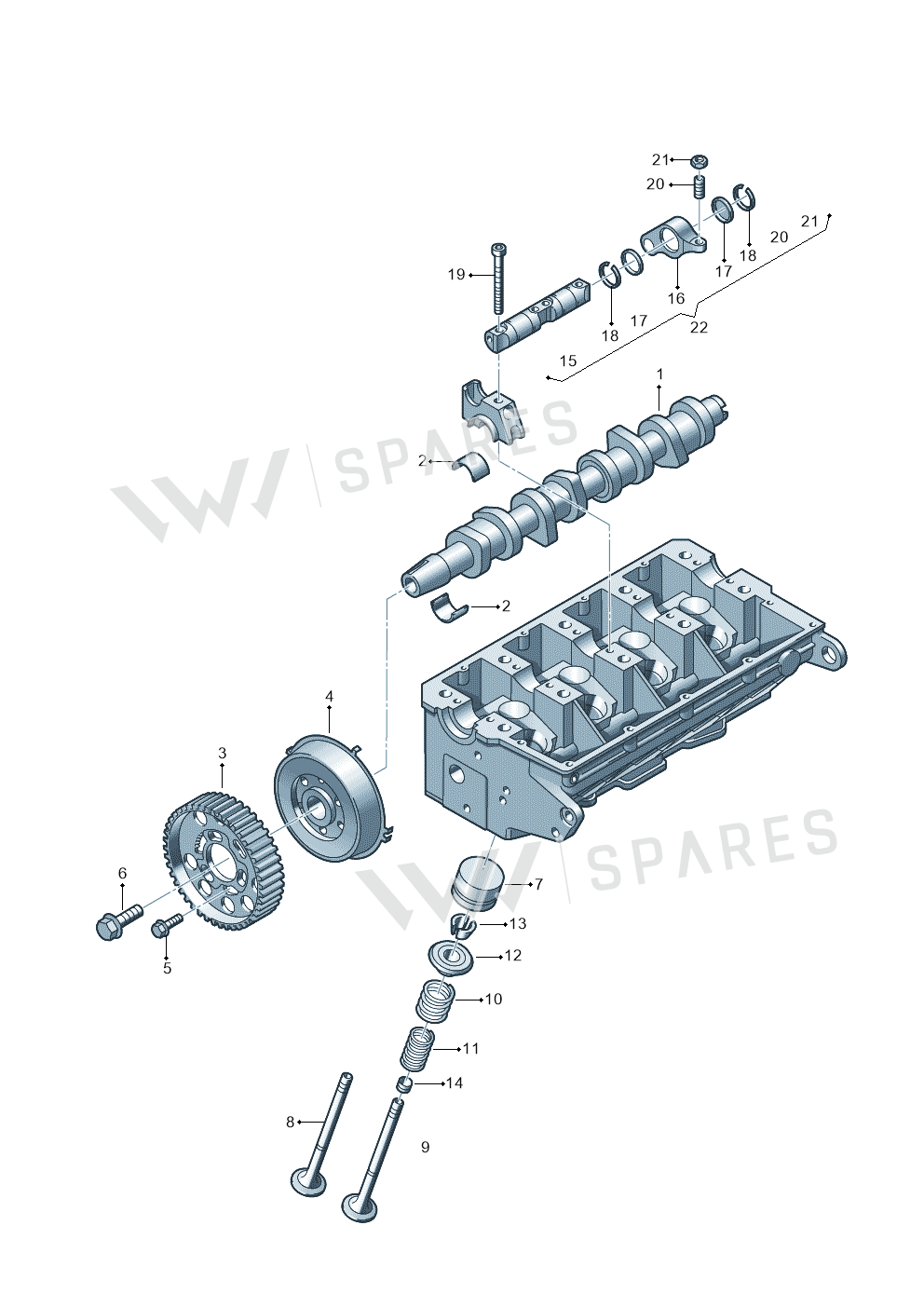

15 vehiclesAdjusting Screw With Ballhead — locate Adjusting Screw With Ballhead in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Camshaft 038109101R
- 2Bearing 038103673B
- 3Pulley 038109111E
- 4Part 038109239
- 5Bolt N10109210
- 6Bolt N90502102
- 7Tappets 038109309A
- 8Valve 038109601B
- 9Valve 038109611F
- 10Spring 038109623F
- 11Spring 038109633
- 12Springseat 021109641C
- 13Cotter Pin 021109651
- 14Seal 027109675
- 15Shaft 038109401D
- 16Lever 038109441C
- 17Washer 038109422
- 19Bolt 038103714A
- 21Part N10412901
- 22Part 038109527AF
Vehicle fitment table15
Europe (11)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALHAMBRA/4MOTION | 2005- | 20, 5 | 4 | |
| ALHAMBRA/4MOTION | 2002-2005 | 20, 5 | 4 | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 20, 5 | 4 | |
| Jetta Wagon 02 | 2001-2002 | 20, 5 | 4 | |
| Jetta Wagon | 2001-2001 | 20, 5 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 5, 20 | 4 | |
| ALHAMBRA/4MOTION | 2000-2002 | 20, 5 | 4 | |
| POLO | 1999-2001 | 20, 5 | ||
| Golf | 1998-2000 | 5 | ||
| Passat syncro/4Motion | 1998-2000 | 20 | ||
| Passat | 1997-2000 | 20, 5 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| CADDY-FAW "CN" 05> | 2005- | 20, 5 | 4 | |
| Golf "BR.","USA"03>07 | 2002-2007 | 20 | F | |
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 20, 5 | 3 | M6F |
| BORA (FAW) | 2001-2006 | 20, 5 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Adjusting Screw With Ballhead is fitted on: ALHAMBRA/4MOTION 2005-; ALHAMBRA/4MOTION 2002-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; AUDI A3/S3/QUATTRO 2000-2003; ALHAMBRA/4MOTION 2000-2002; POLO 1999-2001; Golf 1998-2000; Passat syncro/4Motion 1998-2000; Passat 1997-2000; CADDY-FAW "CN" 05> 2005-; Golf "BR.","USA"03>07 2002-2007; POLO LIM.(SEDAN) "BR" 2002-2006; BORA (FAW) 2001-2006.
