03C109101AB Camshaft
- 03C109101PNot stocked
Jan 2003 - 03C109101ABThis pageDiscontinued
May 2021
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

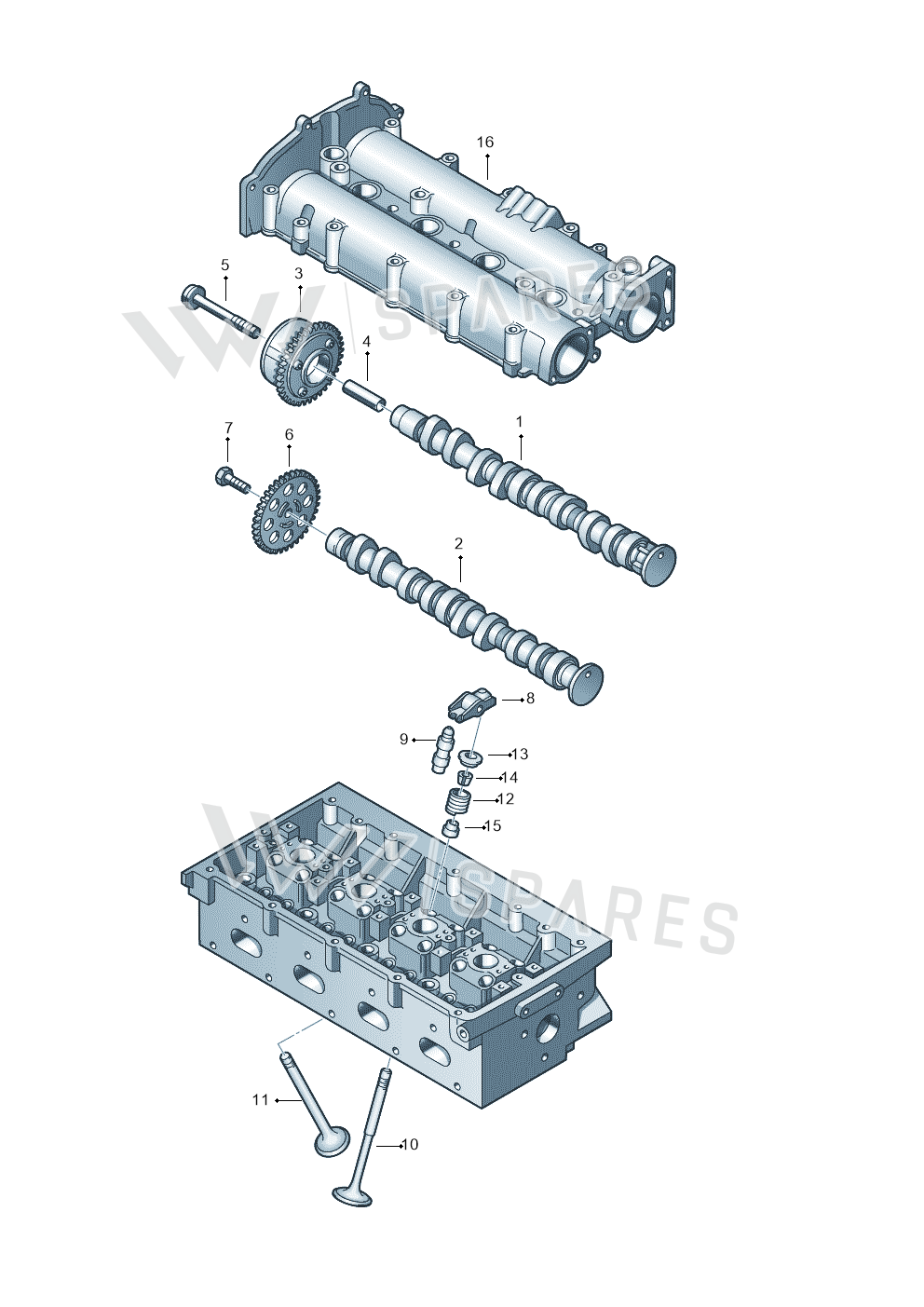

3 vehiclesCamshaft — locate Camshaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Camshaft 03C109101AT
- 2Camshaft 03C109101C
- 2Camshaft 03C109101AF
- 3Adjuster 03C109088B
- 4Sleeve 03C103825A
- 5Screw 03C109282C
- 6Chn Sprckt 03C109571B
- 7Bolt N90256202
- 8Roller Roc 036109411D
- 8Roller Roc 036109411E
- 9Equal Element 030109423
- 10Valve 036109601AD
- 11Valve 036109611K
- 12Spring 036109623N
- 12Spring 036109623R
- 13Springseat 036109641B
- 14Cotter Pin 036109651A
- 15Seal 036109675A
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3/S3/quattro | 2005-2007 | 1 | 1 | BAG | MM8 |
| TOURAN | 2003-2005 | 1 | 1 | BAG | MM8 |
| GOLF | 2003-2005 | 1 | 1 | BAG | MM8 |
Diagrams & fitment data powered by oemdiagrams.com
Camshaft is fitted on: Audi A3/S3/quattro 2005-2007; TOURAN 2003-2005; GOLF 2003-2005.
