03C109287F Seal
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

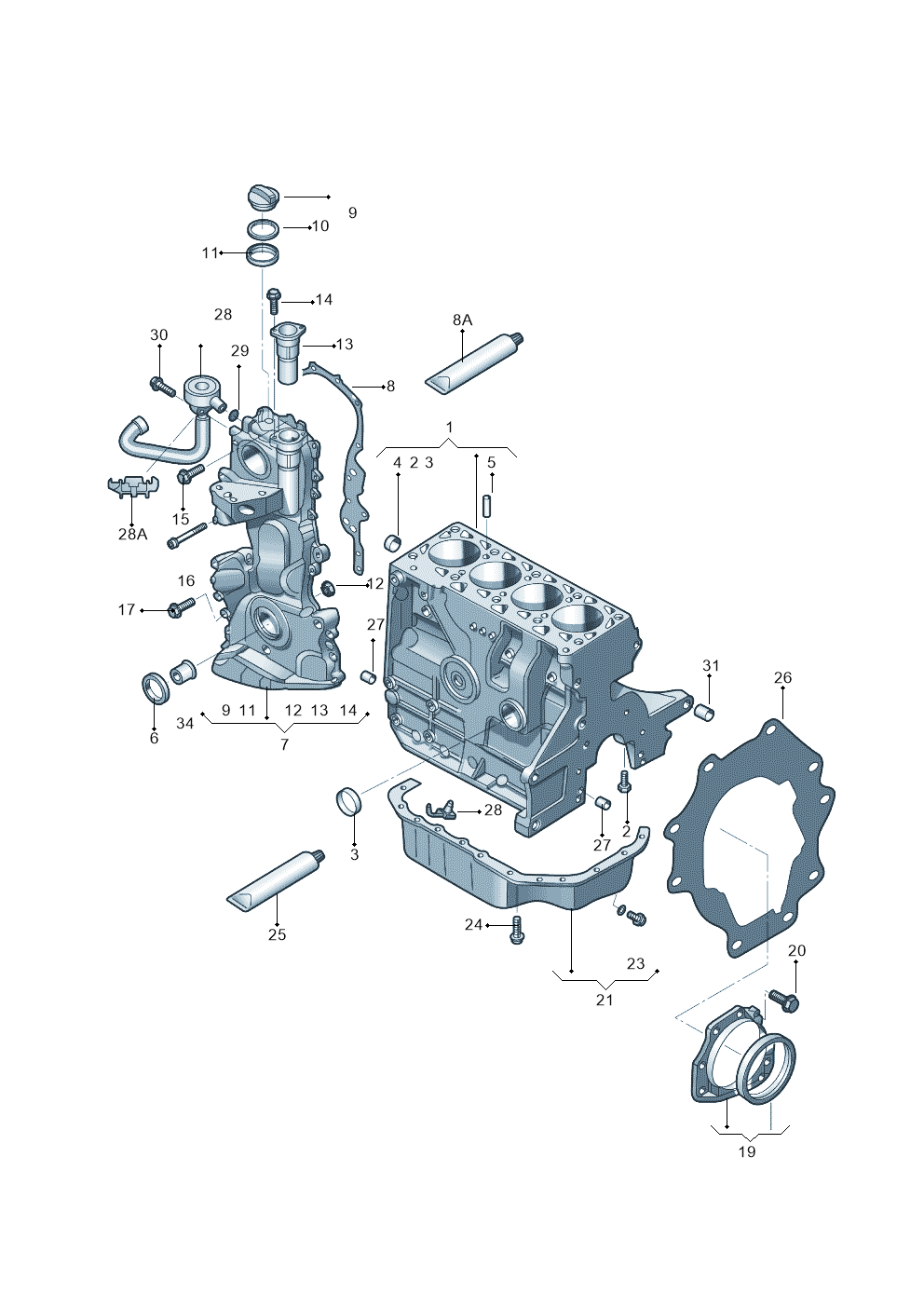

21 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Crankcase 03C103011BN
- 1Cylinder Block 03C103101AB
- 2Bolt N91107801
- 2Screw WHT004877
- 3Cover 03C103113
- 4Cover N01190710
- 4Cover N0119173
- 5Sleeve 03C103143
- 6Seal 038103085Q
- 7Case 03C109210BP
- 7Case 03C109210S
- 8Seal 03C109287H
- 8ASeal DCN176501Z1
- 8ASeal DCN176600Z1
- 9Cover 026103485J
- 9Cover 04E103485
- 10Seal 06A103483D
- 12Seal 03C109293A
- 13Separator 03C103464D
- 14Bolt N90440701
- 14Bolt N91096702
- 15Screw N91096901
- 16Bolt N90712401
- 16Bolt N10655802
- 17Screw N90338204
- 17Screw N90338202
- 19Flange 03C103171B
- 19Flange 03C103171
- 20Screw N91099101
- 21Oil Sump 03C103601AK
- 23Bolt N90813202
- 24Screw N10248003
- 26Spacer Pl 03C103551A
- 26Spacer Pl 03C103551C
- 26Spacer Pl 03C103551J
- 27Part N0432072
- 28Valve 03C103201P
- 28ABracket 03C103733A
- 30Bolt N91089601
- 31Sleeve 022103139B
Vehicle fitment table21
Europe (18)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Fabia Jingrui | 2008-2014 | 8 | 1 | |
| passat estate | 2008-2011 | 8 | 1 | |
| Touran 1.9 | 2008-2010 | 8 | 1 | |
| Polo | 2008-2009 | 8 | 1 | |
| GOLF PLUS 08> | 2007- | 8 | 1 | |
| Passat/4Motion 08 | 2007- | 8 | 1 | D4K |
| EOS-Cabriolet-Coupe | 2006- | 8 | 1 | D4K |
| TOURAN | 2006- | 8 | 1 | |
| ALTEA 07> | 2006- | 8 | 1 | D33 |
| GOLF PLUS 05> | 2005- | 8 | 1 | |
| POLO | 2005- | 8 | 1 | D3H |
| LEON 06> | 2005- | 8 | 1 | D33 |
| Passat/4Motion | 2005-2007 | 8 | 1 | D4K |
| Audi A3/S3/quattro | 2005-2007 | 8 | 1 | |
| TOURAN | 2005-2006 | 8 | 1 | D4K |
| TOLEDO 05> | 2004- | 8 | 1 | D33 |
| TOURAN | 2003-2005 | 8 | 1 | D4K |
| GOLF | 2003-2005 | 8 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 8 | 1 | |
| OCTAVIA "CN."07> | 2007- | 8 | 1 | |
| Golf/Rabbit | 2005-2007 | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Fabia Jingrui 2008-2014; passat estate 2008-2011; Touran 1.9 2008-2010; Polo 2008-2009; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; EOS-Cabriolet-Coupe 2006-; TOURAN 2006-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; POLO 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; TOURAN 2003-2005; GOLF 2003-2005; Golf/Rabbit 08> 2007-; OCTAVIA "CN."07> 2007-; Golf/Rabbit 2005-2007.
