03C121004E Coolant Pump With Glued In Sealing Ring
- 03C121004CNot stocked
Dec 2006 - 03C121004DNot stocked
Mar 2007 - 03C121004EThis pageNot stocked
Apr 2010 - 03C121004LNot stocked
Feb 2010 - 03C121004JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

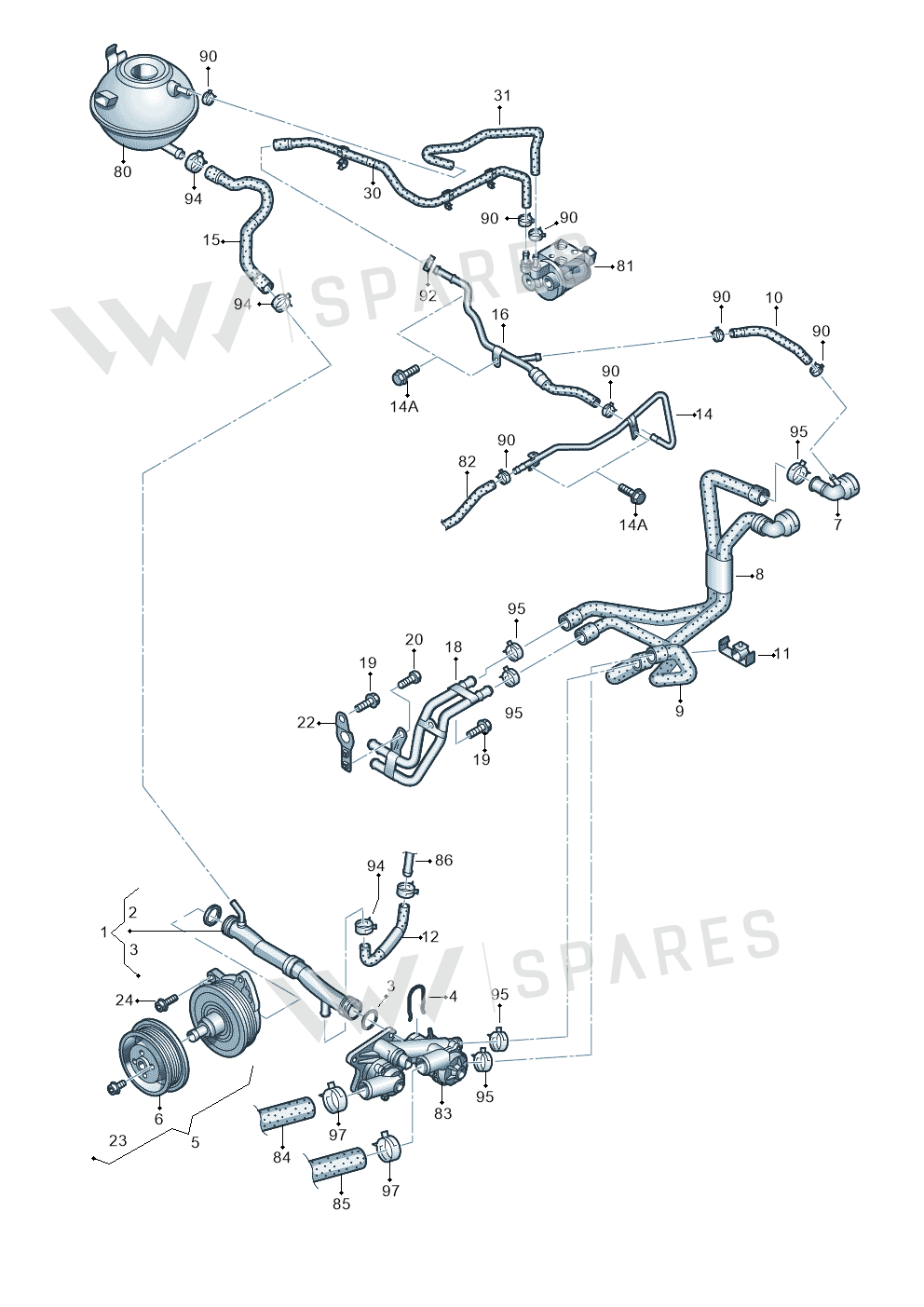

14 vehiclesCoolant Pump With Glued In Sealing Ring — locate Coolant Pump With Glued In Sealing Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Water Pipe 03C121065F
- 2Seal Ring 03C121665
- 3Seal Ring 03C121666
- 4Spring 03C121142
- 5Water Pump 03C121004K
- 5Water Pump 03C121004KX
- 7Coupl Piece 1K0122291R
- 8Hose 1T0121157P
- 8Part 1T0121157T
- 9Hose 1K0121157ED
- 10Hose 1T0121447N
- 11Bracket 3C0820495
- 12Hose 1K0121096AT
- 14Water Pipe 1K0121070CA
- 14ABolt N90925202
- 15Hose 1K0122109BC
- 16Water Pipe 3C0122447BG
- 18Water Pipe 03C121151D
- 19Bolt N10216803
- 20Bolt N10009506
- 22Retaining 03C121079D
- 23Screw N91052201
- 24Screw N91096901
- 30Hose 1T0122447AF
- 31Hose 1T0121447S
- 90Clamp N90686701
- 91Clamp 4B0422379
- 92Clamp N90770201
- 93Clamp N90926401
- 94Clamp N90686902
- 95Clamp N90687001
- 96Clamp N90687101
- 97Clamp N90687201
Vehicle fitment table14
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Touran 2.0 | 2010-2015 | 5 | 1 | CAVC | TF0 |
| Golf Plus 1.6 | 2009-2011 | 5 | 1 | TF0 | |
| Scirocco 2.0 | 2008-2014 | 5 | 1 | TF0 | |
| golf 2.0 | 2008-2011 | 5 | 1 | TF0 | |
| EOS 2.0 | 2008-2010 | 5 | 1 | TF0 | |
| Touran 1.9 | 2008-2010 | 5 | 1 | TF0 | |
| GOLF PLUS 08> | 2007- | 5 | 1 | TF0 | |
| TIGUAN 08> | 2007- | 5 | 1 | TF0 | |
| JETTA 06> | 2006- | 5 | 1 | ||
| TOURAN | 2006- | 5 | 1 | TF0 | |
| GOLF PLUS 05> | 2005- | 5 | 1 | TF0 | |
| TOURAN | 2005-2006 | 5 | 1 | TF0 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 5 | 1 | TF0 | |
| Golf/Rabbit | 2005-2007 | 5 | 1 | TF0 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pump With Glued In Sealing Ring is fitted on: Touran 2.0 2010-2015; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; golf 2.0 2008-2011; EOS 2.0 2008-2010; Touran 1.9 2008-2010; GOLF PLUS 08> 2007-; TIGUAN 08> 2007-; JETTA 06> 2006-; TOURAN 2006-; GOLF PLUS 05> 2005-; TOURAN 2005-2006; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
