03C130241AF Pressure Pipe
- 03C130241AFThis pageNot stocked
Jun 2011 - 03C130241ANNot stocked
Nov 2011 - 03C130241APNot stocked
Feb 2012 - 03C130241AQNot stocked
Jul 2016 - 03C130241ASCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

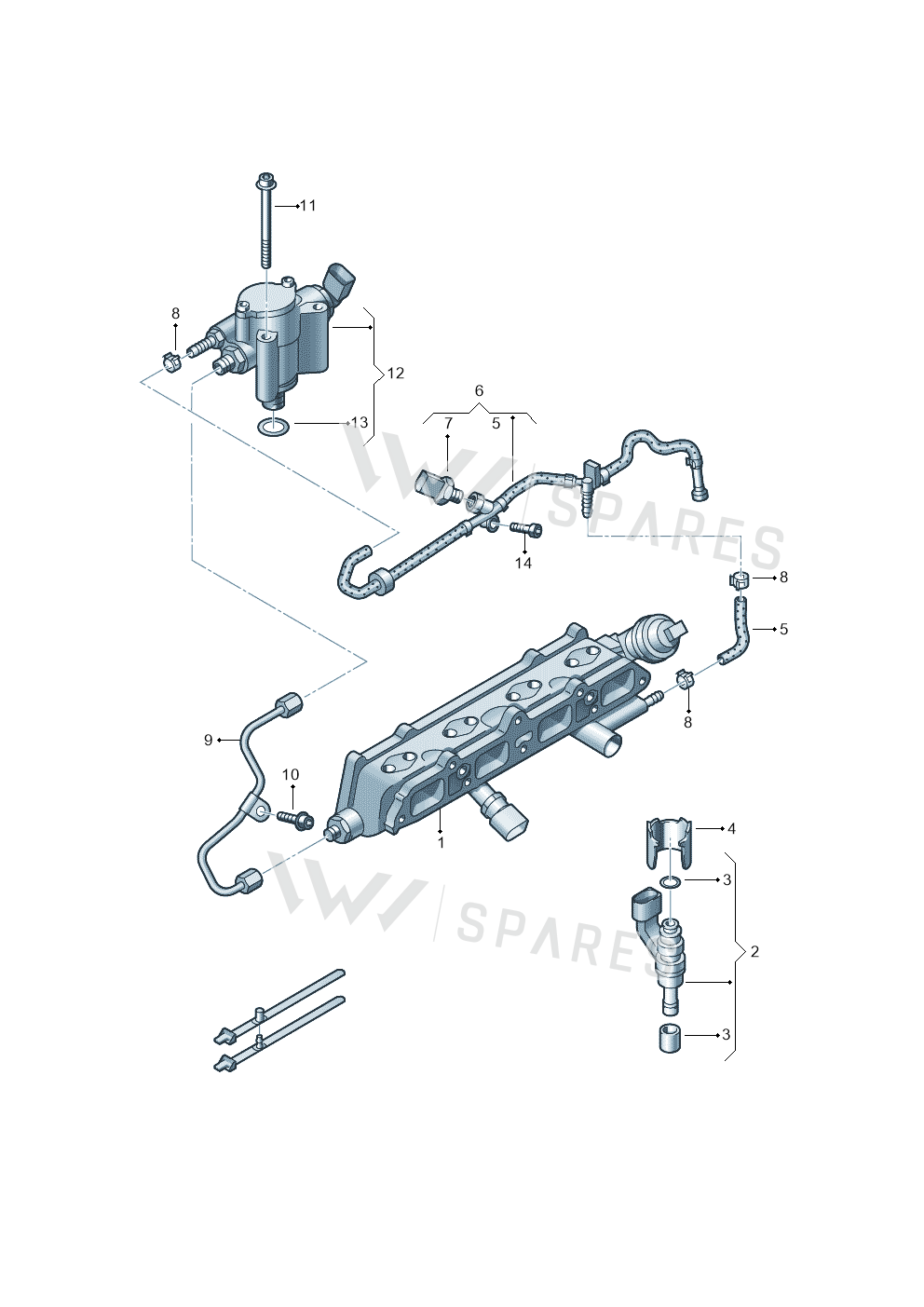

10 vehiclesPressure Pipe — locate Pressure Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 2Valve 03C906036F
- 2Valve 03C906036A
- 3Gask Set 03C198149
- 3Gask Set 036198149
- 4Support Element 03C133036D
- 5Fuel Line 03C133713J
- 6Fuel Line 03C133679AM
- 6Hose 03C133723AG
- 8Clamp N90986501
- 9Pipe 03C130241AB
- 10Bolt N10451405
- 11Screw N91048802
- 11Screw N10247505
- 12Pump 03C127026C
- 12Pump 03C127025R
- 13Seal Ring WHT005184
- 15Binder 4A0820199
Vehicle fitment table10
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOLF PLUS 08> | 2007- | 9 | 1 | CAXA | |
| Passat/4Motion 08 | 2007- | 9 | 1 | CAXA | |
| GOLF VARIANT 07> | 2007- | 9 | 1 | D4X | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 9 | 1 | TU0 | |
| EOS-Cabriolet-Coupe | 2006- | 9 | 1 | CAXA | |
| ALTEA 07> | 2006- | 9 | 1 | TU0 | |
| JETTA 06> | 2005- | 9 | 1 | D4X | |
| LEON 06> | 2005- | 9 | 1 | TU0 | |
| TOLEDO 05> | 2004- | 9 | 1 | TU0 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 9 | 1 | CAXA |
Diagrams & fitment data powered by oemdiagrams.com
Pressure Pipe is fitted on: GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; GOLF VARIANT 07> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; EOS-Cabriolet-Coupe 2006-; ALTEA 07> 2006-; JETTA 06> 2005-; LEON 06> 2005-; TOLEDO 05> 2004-; Golf/Rabbit 08> 2007-.
