03C145140F Oil Pipe
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

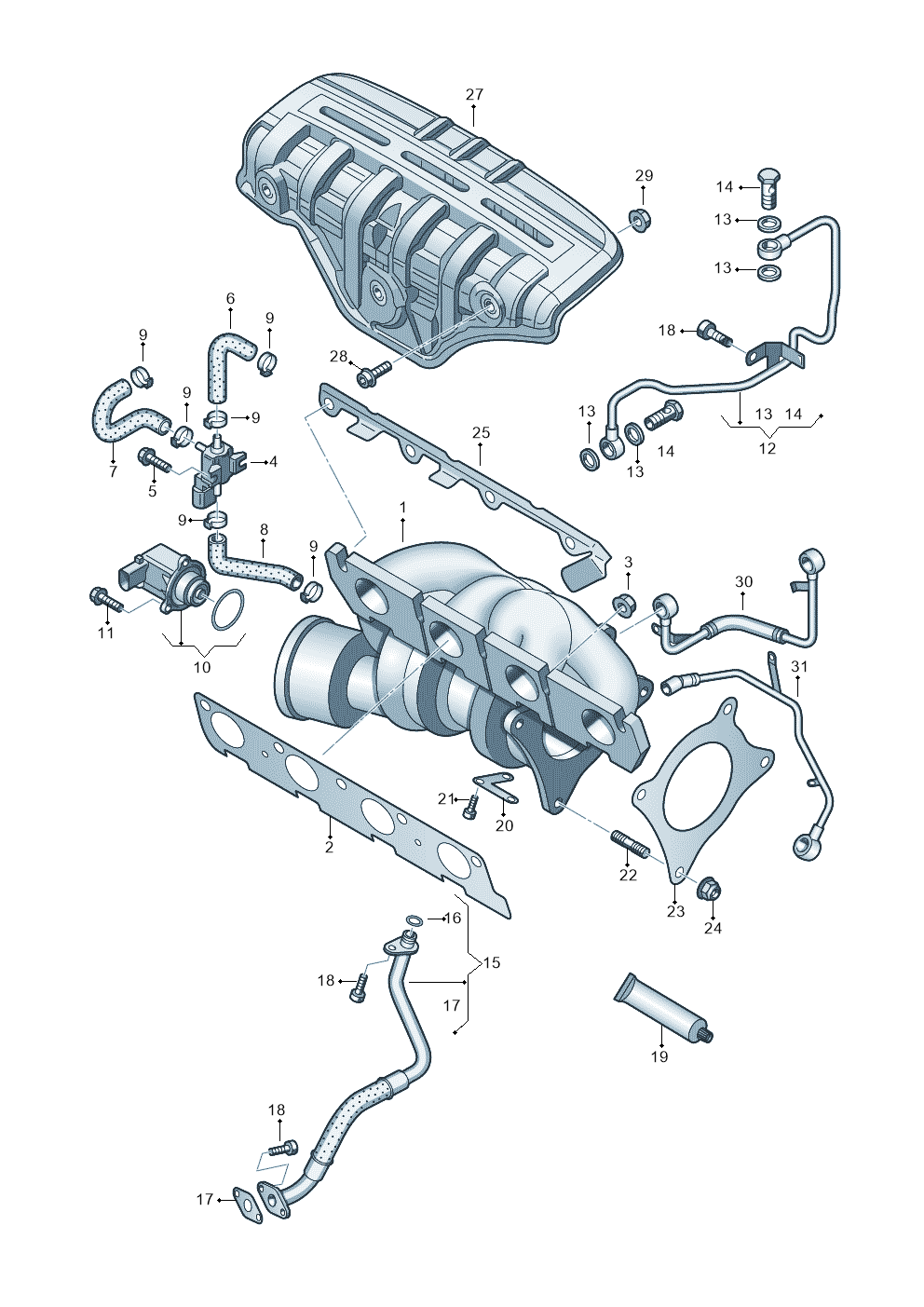

8 vehiclesOil Pipe — locate Oil Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Part JZA145703AX
- 1Turbo 03C145703A
- 2Seal 03C253039F
- 3Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 4Valve 03C906283B
- 5Washer N01152322
- 5Screw N10453502
- 6Hose 03C145718R
- 7Hose 03C145718Q
- 9Clamp N10203501
- 10Valve 03C145710E
- 11Screw N91032702
- 13Seal Ring N0138131
- 14Screw N0210717
- 15Oil Pipe 03C145735C
- 16Seal Ring WHT003367
- 17Seal 03C145757A
- 18Bolt WHT005227
- 19Paste G052112A3
- 20Part 03C253197E
- 21Screw WHT006094
- 22Bolt WHT001264
- 23Seal 1K0253115L
- 24Ut Hexagon Nut Self-locking Hexagon Nut N0221464
- 27Defl Plate 03C253041AL
- 28Bolt N10632003
- 29Collar Nut N01508213
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Touran 1.9 | 2008-2010 | 12 | 1 | TF0 | |
| GOLF VARIANT 07> | 2007- | 9 | 1 | ||
| GOLF PLUS 08> | 2007- | 12 | 1 | ||
| TIGUAN 08> | 2007- | 12 | 1 | G0L | |
| TOURAN | 2006- | 12 | 1 | BM | |
| GOLF PLUS 05> | 2005- | 12 | 1 | BM | |
| JETTA 06> | 2005- | 9 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 12 | 1 | BM |
Diagrams & fitment data powered by oemdiagrams.com
Oil Pipe is fitted on: Touran 1.9 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; TIGUAN 08> 2007-; TOURAN 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; Golf/Rabbit 08> 2007-.
