03C145749B Charge Air Cooler
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

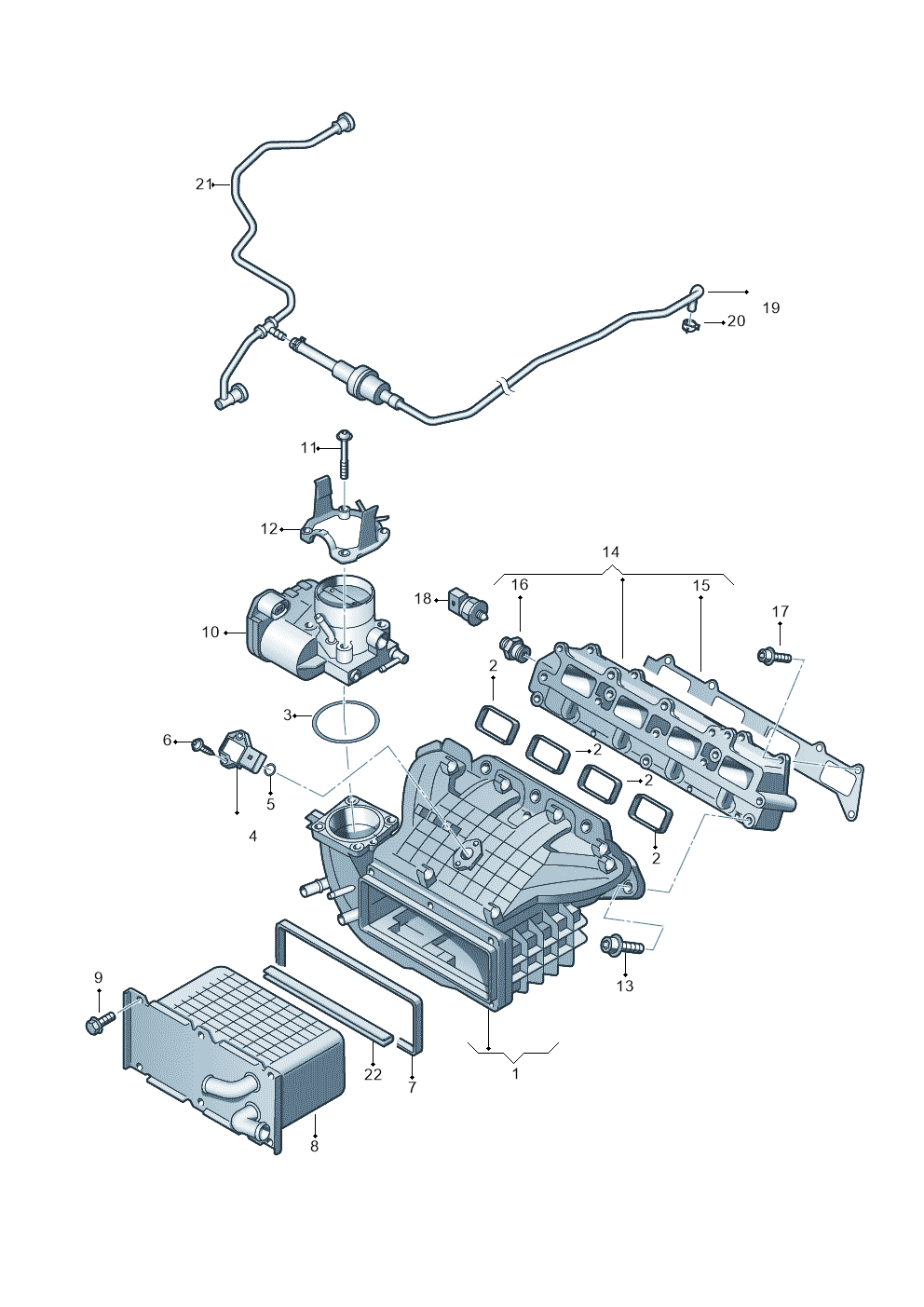

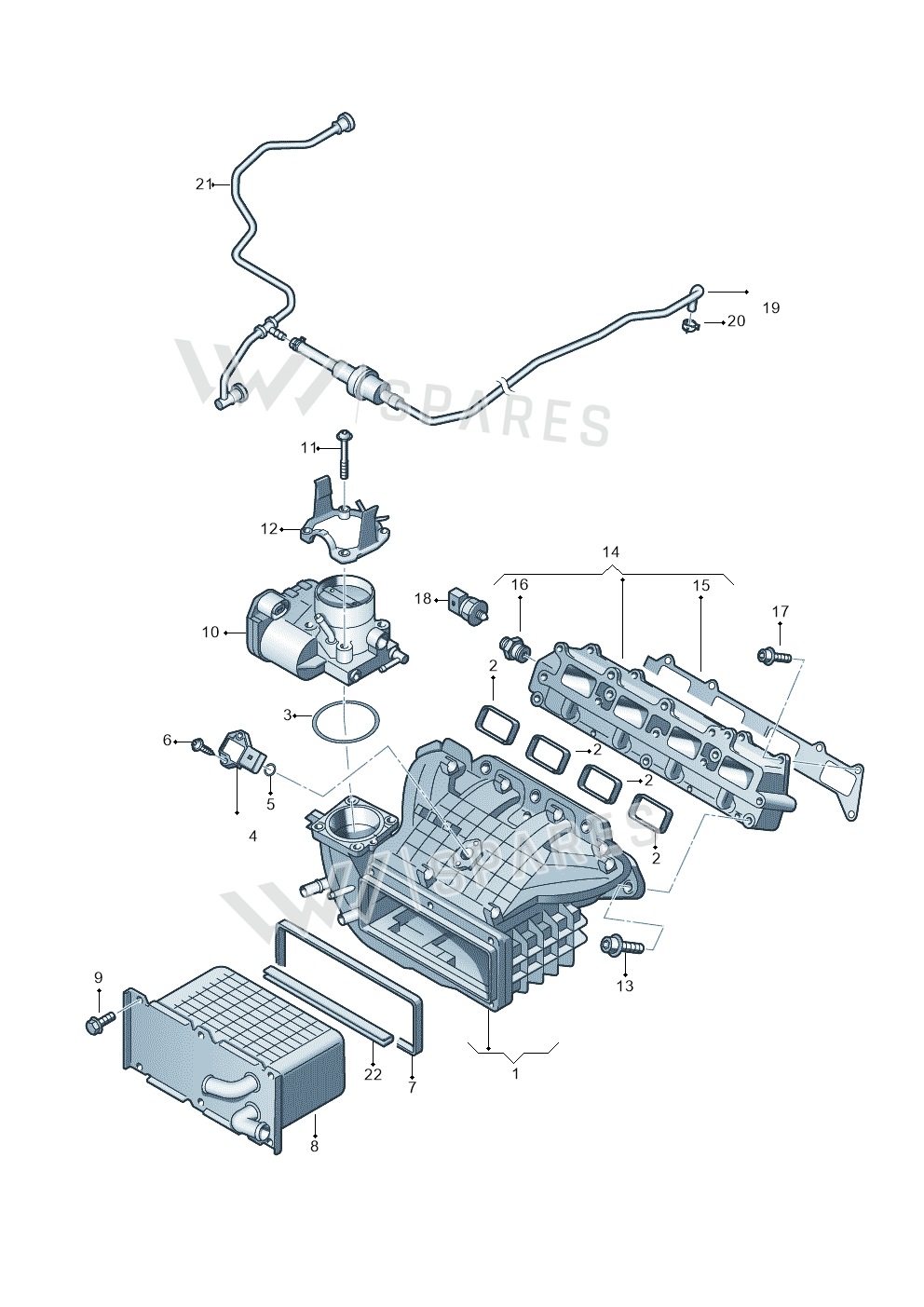

32 vehiclesCharge Air Cooler — locate Charge Air Cooler in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Manifold 03C129709AH
- 2Seal 03C129717A
- 3Seal 03C133073A
- 4Sensor 038906051B
- 5Seal Ring 036906149D
- 6Screw N90739703
- 7Seal 03C129717H
- 9Bolt WHT002603
- 10Thr Flap 03C133062C
- 11Bolt N10668001
- 12Adapter 03C145853C
- 13Bolt N91026602
- 14Manifold 03C133202AQ
- 15Seal 03C129717C
- 16Screw WHT002620
- 17Screw N10666401
- 17Screw N10665101
- 18Sensor 03C906051H
- 19Hose 03C133514S
- 20Clamp N90686701
- 21Pipe 03C133514P
- 22Seal 03C129717F
Vehicle fitment table32
Europe (26)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A1 Sportback | 2010-2015 | 8 | 1 | TU0 |
| Altea XL Reference | 2010-2013 | 8 | 1 | TU0 |
| Leon Stylance | 2010-2012 | 8 | 1 | TU0 |
| Superb Ambition | 2009-2015 | 8 | 1 | |
| golf estate | 2009-2013 | 82, 8 | ||
| Yeti | 2009-2013 | 8 | 1 | |
| Golf Plus 1.6 | 2009-2011 | 8 | 1 | |
| superb comfort | 2008-2013 | 8 | 1 | |
| octavia ambiente | 2008-2013 | 8 | 1 | |
| Audi A3 Sportback | 2008-2013 | 8 | 1 | TU0 |
| golf 2.0 | 2008-2011 | 8 | 1 | |
| passat estate | 2008-2011 | 8 | 1 | |
| jetta | 2008-2011 | 8 | 1 | |
| EOS 2.0 | 2008-2010 | 8 | 1 | |
| GOLF VARIANT 07> | 2007- | 8 | 1 | D4X |
| GOLF PLUS 08> | 2007- | 8 | 1 | |
| Passat/4Motion 08 | 2007- | 8 | 1 | |
| TIGUAN 08> | 2007- | 8 | 1 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 8 | 1 | TU0 |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 8 | 1 | TU0 |
| EOS-Cabriolet-Coupe | 2006- | 8 | 1 | |
| JETTA 06> | 2006- | 8 | 1 | |
| ALTEA 07> | 2006- | 8 | 1 | TU0 |
| JETTA 06> | 2005- | 8 | 1 | D4X |
| LEON 06> | 2005- | 8 | 1 | TU0 |
| TOLEDO 05> | 2004- | 8 | 1 | TU0 |
Other markets (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Lavida | 2012-2021 | 8 | 1 | |
| New Passat | 2011-2019 | 8 | 1 | |
| Lavida | 2008-2013 | 8 | 1 | |
| Golf/Rabbit 08> | 2007- | 8 | 1 | |
| OCTAVIA "CN."07> | 2007- | 8 | 1 | |
| TOURAN (SVW) "CN"04> | 2004- | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Charge Air Cooler is fitted on: Audi A1 Sportback 2010-2015; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Superb Ambition 2009-2015; golf estate 2009-2013; Yeti 2009-2013; Golf Plus 1.6 2009-2011; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; passat estate 2008-2011; jetta 2008-2011; EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; ALTEA 07> 2006-; JETTA 06> 2005-; LEON 06> 2005-; TOLEDO 05> 2004-; Lavida 2012-2021; New Passat 2011-2019; Lavida 2008-2013; Golf/Rabbit 08> 2007-; OCTAVIA "CN."07> 2007-; TOURAN (SVW) "CN"04> 2004-.
