03C201542 Non-Return Valve
- 03C201542This pageNot stocked
Sep 2011 - 03C201542BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

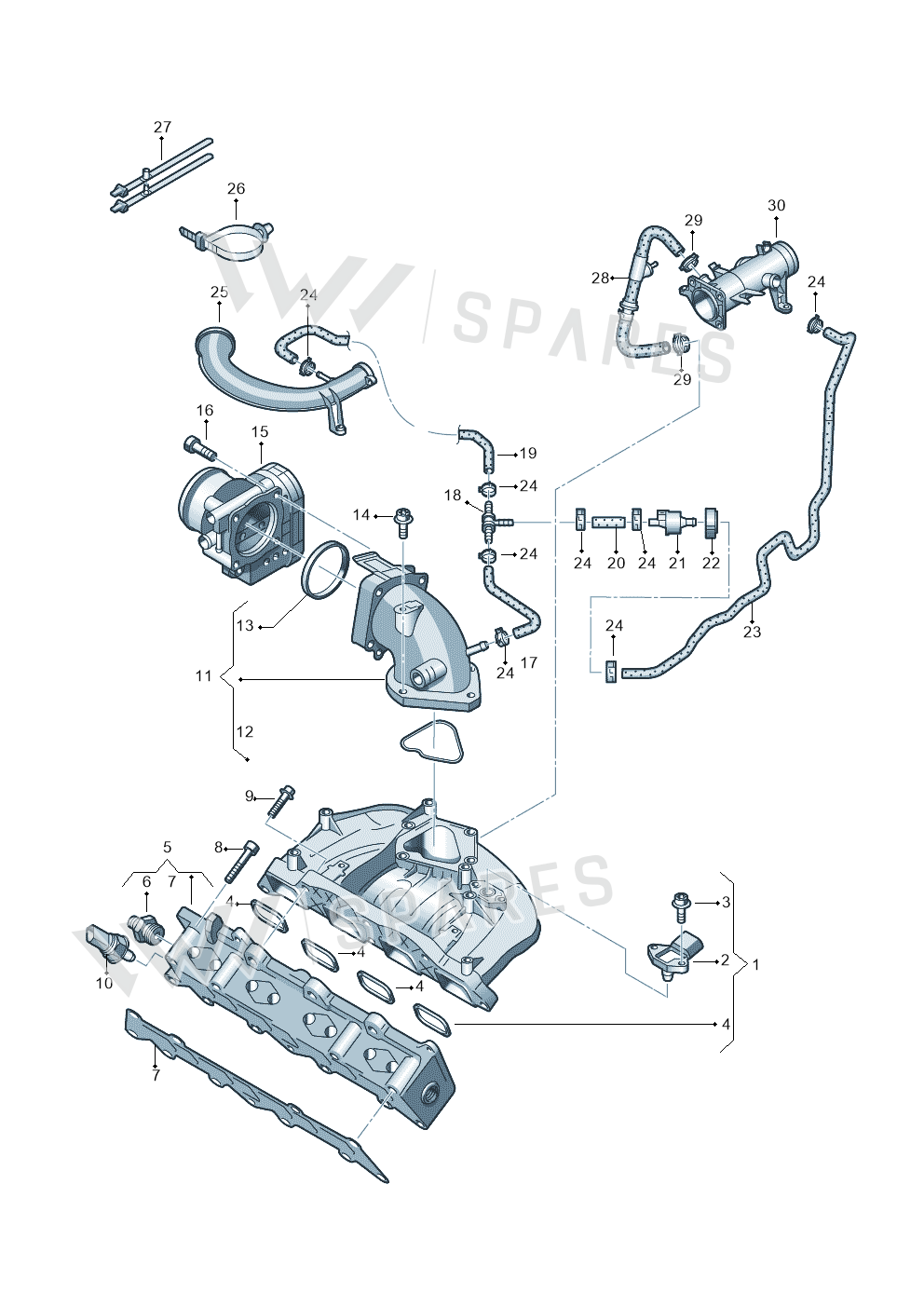

15 vehiclesNon-return Valve — locate Non-Return Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Manifold 03C129709AJ
- 1Manifold 03C129709AE
- 2Sensor 038906051C
- 3Screw N90739704
- 4Seal 03C129717A
- 5Manifold 03C133202AQ
- 6Screw WHT002620
- 7Seal 03C129717C
- 8Screw N10666401
- 8Screw N10476002
- 9Bolt N91026602
- 10Sensor 03C906051H
- 11Manifold 03C129721D
- 11Manifold 03C129721B
- 12Seal 03C129717B
- 13Seal 03C133073A
- 14Bolt N10666701
- 15Thr Flap 03C133062D
- 16Bolt N10626101
- 17Hose 03C133518AF
- 19Hose 03C133518AS
- 20Hose 03C133518AG
- 21Valve 6QE906517A
- 22Thrustring 058133459
- 23Hose 03C133518AT
- 23Hose 03C133518BA
- 24Clamp N90686701
- 26Cable Tie 3D0971838N
- 27Binder 4A0820199
- 28Pump 03C133751F
- 28Pump 03C133751B
- 29Clamp N90926401
Vehicle fitment table15
Europe (13)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf Plus 1.6 | 2009-2011 | 18 | 1 | |
| golf 2.0 | 2008-2011 | 18 | 1 | |
| passat estate | 2008-2011 | 18 | 1 | |
| jetta | 2008-2011 | 18 | 1 | |
| EOS 2.0 | 2008-2010 | 18 | 1 | |
| Touran 1.9 | 2008-2010 | 18, 23 | 1 | |
| GOLF VARIANT 07> | 2007- | 23, 18 | 1 | TF0 |
| GOLF PLUS 08> | 2007- | 18, 23 | 1 | |
| TIGUAN 08> | 2007- | 23, 18 | 1 | |
| TOURAN | 2006- | 23 | 1 | |
| GOLF PLUS 05> | 2005- | 23 | 1 | |
| JETTA 06> | 2005- | 23 | 1 | |
| TOURAN | 2005-2006 | 23 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 23 | 1 | |
| Golf/Rabbit | 2005-2007 | 23 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Non-Return Valve is fitted on: Golf Plus 1.6 2009-2011; golf 2.0 2008-2011; passat estate 2008-2011; jetta 2008-2011; EOS 2.0 2008-2010; Touran 1.9 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; TIGUAN 08> 2007-; TOURAN 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; TOURAN 2005-2006; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
