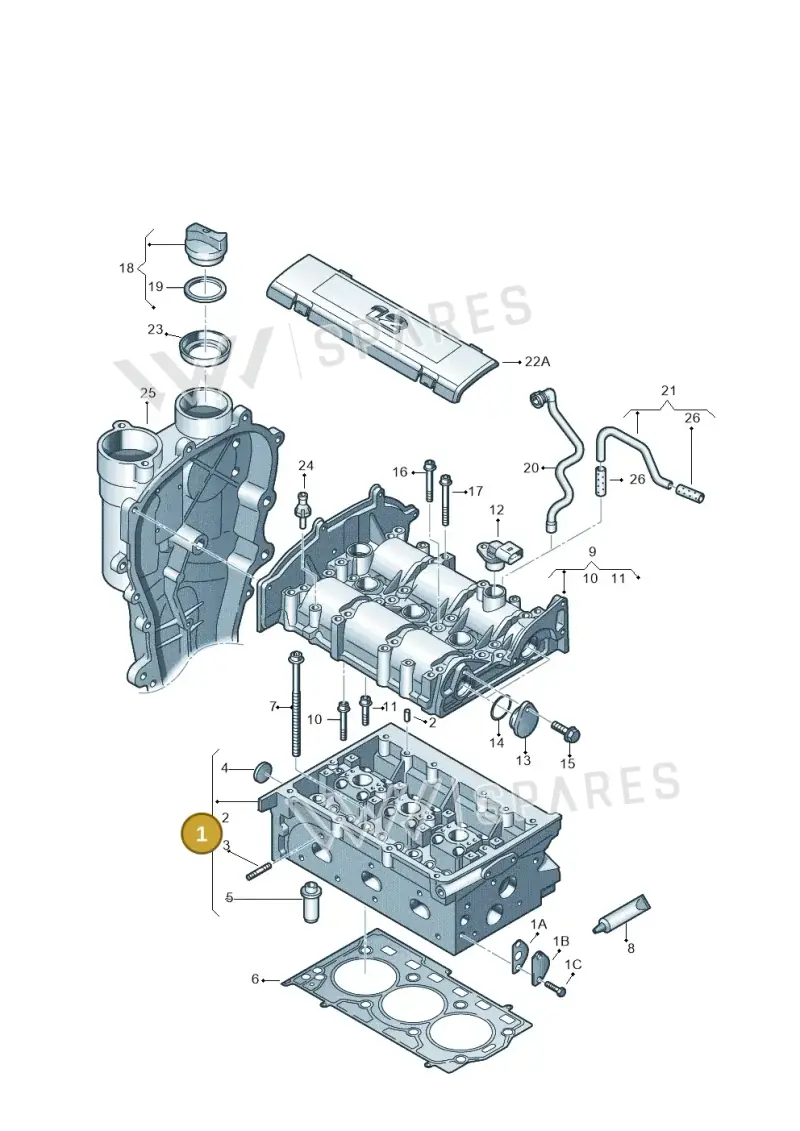

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Cylinder Head, part number 03E103351F. This component forms the top part of the engine cylinder, housing valves and combustion chambers. It is located at the top of the engine block. This is a new, direct replacement part. Genuine OEM cylinder heads are precision-machined for correct valve sealing and combustion chamber integrity.
Technical details
- Category
- Engine
- Country of origin
- Czech Republic
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29.8 × 22 × 11 cm
- Shipping weight
- 8.81 kg
Parts diagram & fitment
8 vehiclesCylinder Head — locate 03E103351F Volkswagen Cylinder Head | Engine in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Cylinder Head 03E103264X
- 1Cylinder Head 03E103264AX
- 1Cylinder Head 03E103351C
- 1Cylinder Head 03E103351D
- 1Cylinder Head 03E103351
- 1APlate 036131281
- 1BSeal 036131550H
- 1CBolt N01029316
- 2Part N0132102
- 3Bolt N0444104
- 4Cover N01191410
- 6Seal 03E103383H
- 7Screw 036103384B
- 8Sealant D154103A1
- 9Cover 03E103473M
- 10Screw WHT001300
- 10Screw N10331202
- 11Screw WHT001302
- 11Screw N10302403
- 13Cover 03E103111A
- 14Seal Ring N90951301
- 15Bolt N10082912
- 16Screw N91055401
- 17Screw N10247504
- 18Cover 06B103485C
- 19Seal 06A103483D
- 20Hose 03E103493E
- 20Hose 03E103493D
- 21Hose 03E103474D
- 21Hose 03E103474C
- 22ACover 03E103929A
- 23Seal Ring 03C133287A
- 24Ball Joint 036129846B
- 26Hose 03D103606N
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03E103351F Volkswagen Cylinder Head | Engine is fitted on: FABIA/COMBI NF 07> 2006-; Fabia Scout 2010-2014; Roomster 2010-2015; Fabia Ambiente 2009-2013; Rapid 2012-2022; Polo 2012-2014; Polo 2014-2022; Ameo 1,0 2016-2020.
