03G131521D Connecting Pipe
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

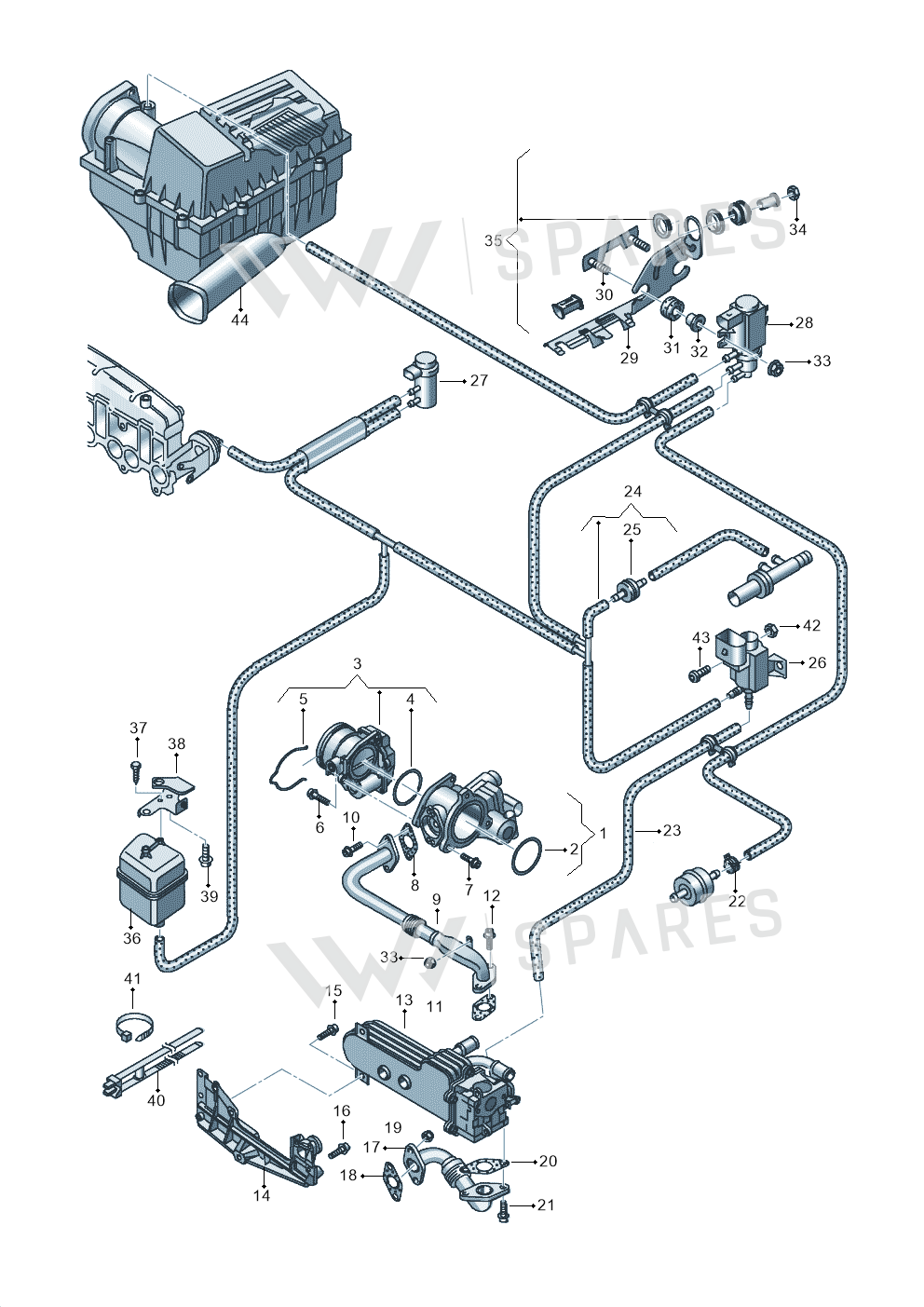

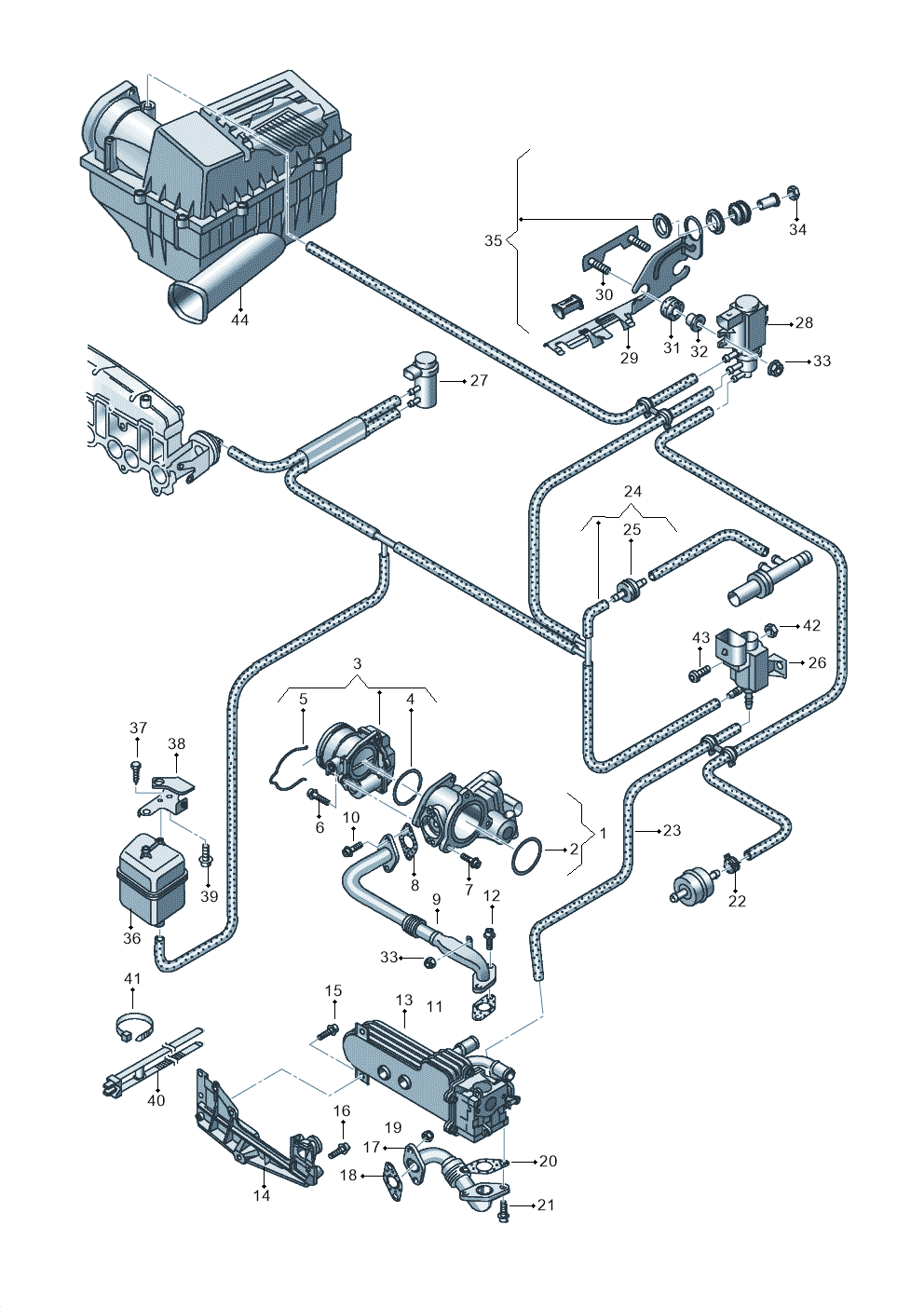

3 vehiclesConnecting Pipe — locate Connecting Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Valve 03G131501P
- 2Seal 03G131547C
- 3Thr Flap 03G128063B
- 4Seal Ring N90978701
- 5Clip 1J0145769G
- 6Screw N91117401
- 6Screw N10405702
- 7Bolt N10196103
- 8Seal 069131547D
- 10Screw N91048802
- 13Radiator 03G131512L
- 14Bracket 03G131159
- 15Bolt N10124408
- 17Pipe 03G131521T
- 18Seal 038131547A
- 19Collar Nut N90200201
- 22Clamp N10279301
- 23Hose 03G131055T
- 24Hose 03G131055R
- 24Hose 03G131055AQ
- 25Valve 046905291B
- 26Valve 037906283D
- 27Valve 1K0906283A
- 28Converter 1K0906627A
- 29Bracket 3C0906285
- 30Plate 046130405
- 31Grommet 046131887
- 32Spacer 052129734
- 33Collar Nut N01508210
- 35Fixing Set 8P0998801
- 36Damper 03G129808
- 37Screw N01388413
- 38Bracket 03G103369
- 38Bracket 03G103369K
- 40Binder 4A0820199
- 41Part 3W0971838
- 42Part N01100518
- 43Screw N10569501
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| passat estate | 2008-2011 | 9 | 1 |
| Passat/4Motion 08 | 2007- | 9 | 1 |
| Passat/4Motion | 2005-2007 | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Pipe is fitted on: passat estate 2008-2011; Passat/4Motion 08 2007-; Passat/4Motion 2005-2007.
