03H103601AC Engine Oil Sump With Oil Level Sensor
- 03H103601NNot stocked
Feb 2017 - 03H103601ACThis pageNot stocked
Feb 2017 - 03H103601AJCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

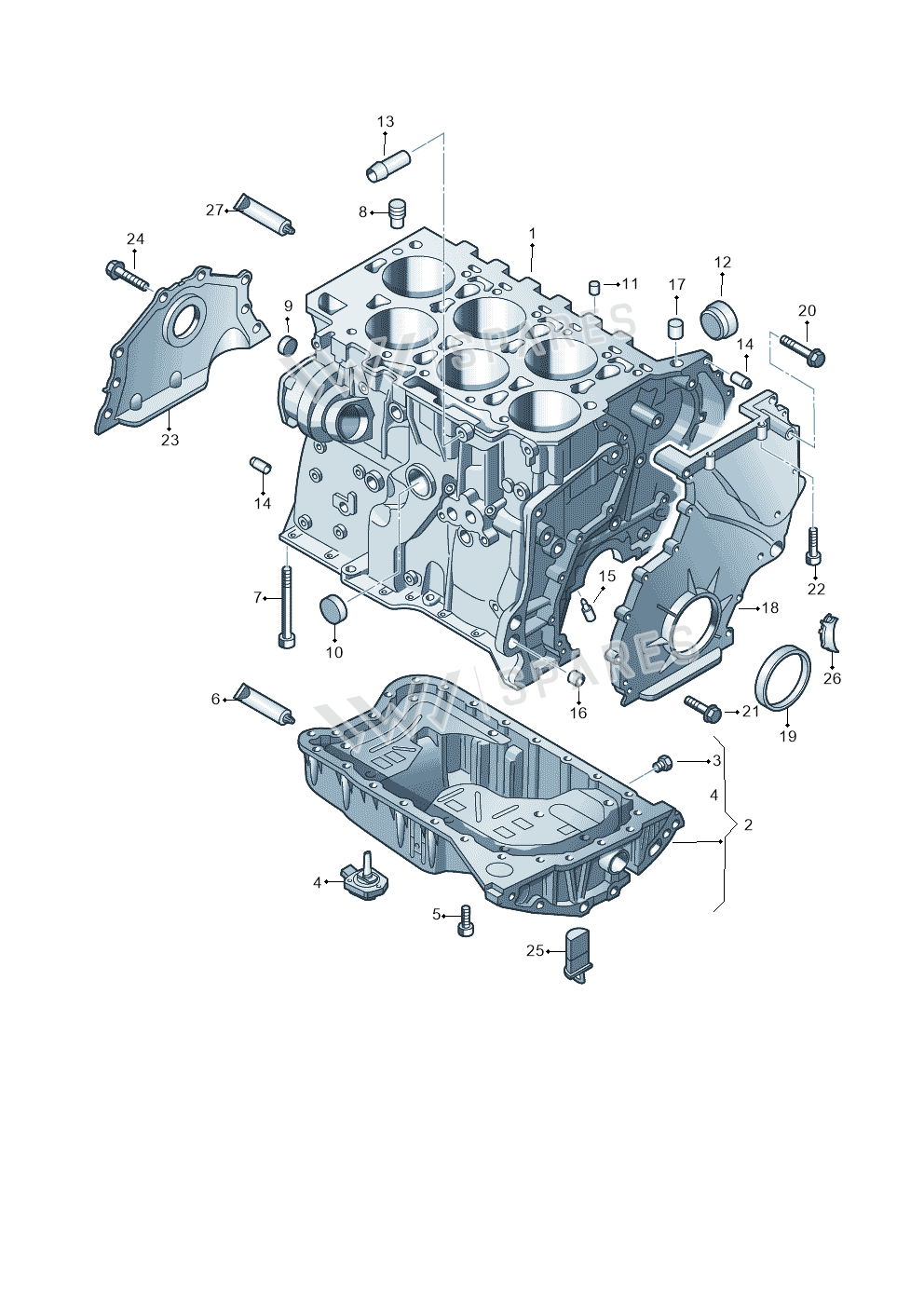

3 vehiclesEngine Oil Sump With Oil Level Sensor — locate Engine Oil Sump With Oil Level Sensor in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 2Oil Sump 03H103601AJ
- 3Bolt N90813202
- 5Bolt N10124408
- 6Sealant D154103A1
- 6Cleaner D291091A1
- 7Screw N90365801
- 9Cover N10218603
- 10Cover 036103113A
- 11Bungs 03H103141
- 12Screw WHT000914
- 13Connection 071103233
- 14Part N91017001
- 15Vent 03H103157
- 16Sleeve 022103139B
- 17Sleeve N90502601
- 18Flange 03H103173B
- 19Seal 021103051C
- 20Bolt N10116003
- 21Bolt N10082912
- 22Screw N90355905
- 23Flange 03H103151B
- 24Bolt N10029205
- 25Part 022103534A
- 26Part 022103534G
- 27Part D176501A1
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Touareg BlueMotion | 2014-2018 | 2 | 1 |
| touareg | 2012-2014 | 1 | 1 |
| touareg | 2010-2012 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Engine Oil Sump With Oil Level Sensor is fitted on: Touareg BlueMotion 2014-2018; touareg 2012-2014; touareg 2010-2012.
