03H109509 Chain Tensioner
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

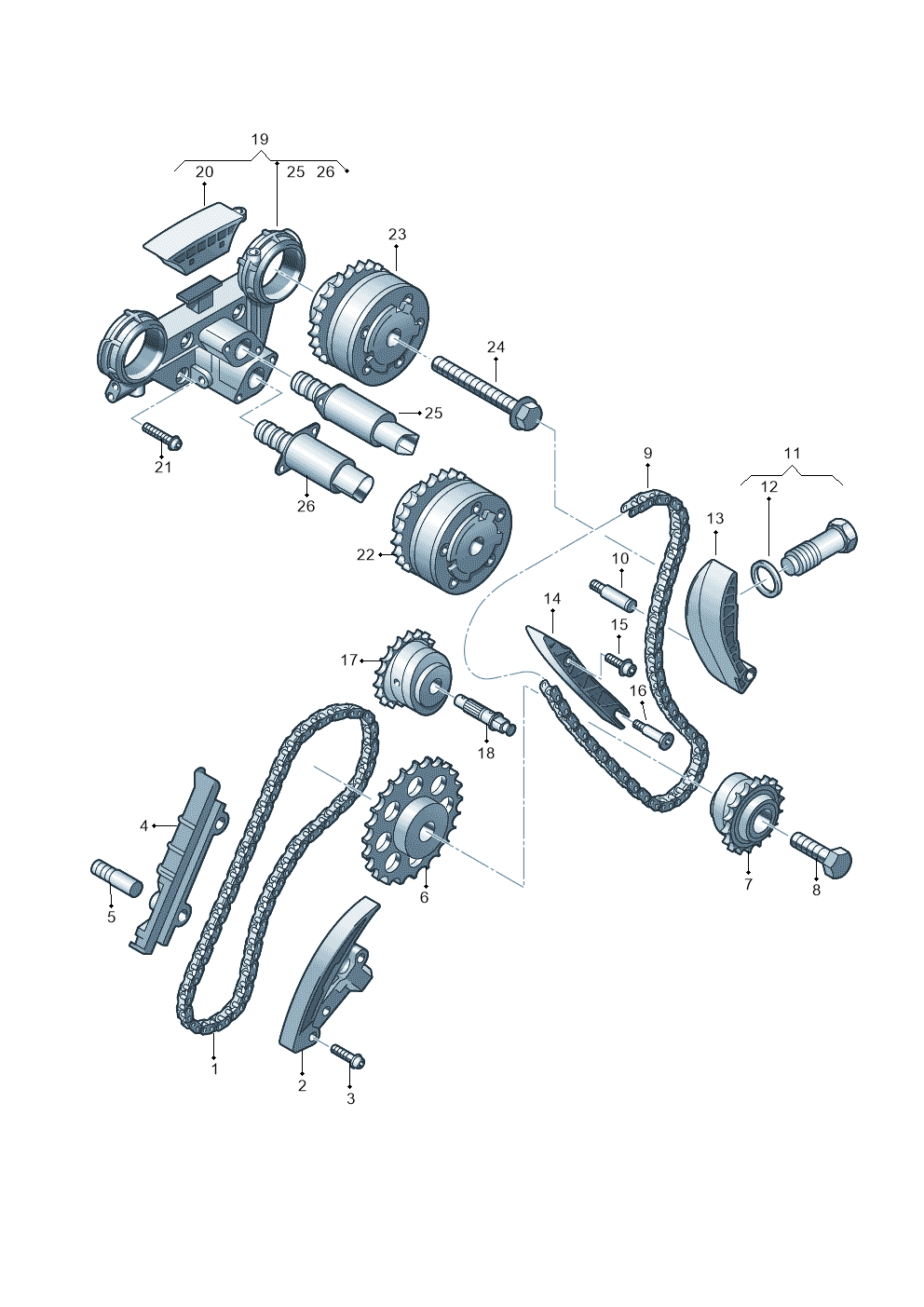

6 vehiclesChain Tensioner — locate Chain Tensioner in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Timing Cha 03H109465
- 2Tensioner 021109467
- 3Screw N90923801
- 4Seatrunner 021109469
- 5Part 021109471
- 6Chn Sprckt 03H109569
- 7Chn Sprckt 066109570
- 8Bolt N10404404
- 9Timing Cha 03H109503
- 10Part 066109511D
- 11Tensioner 03H109507
- 12Seal Ring N0138271
- 14Seatrunner 03H109513B
- 15Screw N10613901
- 16Part 071109515
- 17Chn Sprckt 03H109570E
- 18Part 03H109295
- 18Shaft 03H109296B
- 19Case 03H109210A
- 19Case 066109210R
- 20Seatrunner 066109514A
- 21Bolt N90965802
- 22Adjuster 03H109087A
- 23Adjuster 03H109088A
- 24Bolt N91118001
- 25Valve 06F109257B
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2008-2010 | 13 | 1 | D3B |
| Touareg 08> | 2007- | 13 | 1 | D3B |
| Passat/4Motion 08 | 2007- | 13 | 1 | |
| Audi Q7 07> | 2006- | 13 | 1 | D3B |
| Passat/4Motion | 2005-2007 | 13 | 1 | D3B |
| Touareg | 2005-2006 | 13 | 1 | D3B |
Diagrams & fitment data powered by oemdiagrams.com
Chain Tensioner is fitted on: phaeton 4motion 2008-2010; Touareg 08> 2007-; Passat/4Motion 08 2007-; Audi Q7 07> 2006-; Passat/4Motion 2005-2007; Touareg 2005-2006.
