Product overview
Genuine OEM Volkswagen Cylinder Head Gasket, part number 03L103383BR. This critical engine component creates a tight seal between the cylinder head and the engine block, preventing the escape of combustion gases, engine oil, and coolant. It is positioned directly between these two major engine components. Constructed from durable multi-layer steel, it measures approximately 37.7 cm long and 16.5 cm wide. Choosing a genuine OEM gasket ensures the correct material composition, precise dimensions, and factory-specified sealing properties for long-term engine reliability.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 37.7 × 16.5 × 0.3 cm
- Shipping weight
- 0.43 kg
Parts diagram & fitment

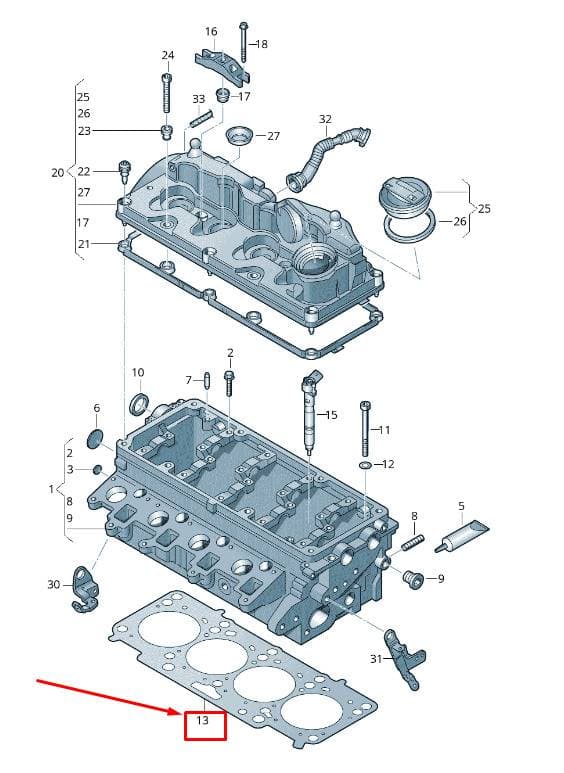

1 vehicleCylinder Head Gasket — locate 03L103383BR Volkswagen Cylinder Head Gasket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by WHT002131 — the later replacement part.
Parts in this assembly(28)
- 1Cylinder Head 03L103265AX
- 1Cylinder Head 03L103351B
- 2Bolt N10205604
- 3Cover N01191410
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085C
- 11Screw WHT002131
- 12Washer N90115701
- 13Seal 03L103383BS
- 13Seal 03L103383CA
- 13Seal 03L103383CB
- 13Seal 03L103383BQ
- 13Seal 03L103383BT
- 17Part 03L103487A
- 17Part 03L103487
- 20Cover 03L103469R
- 21Part 03L103483C
- 21Part 03L103483H
- 22Bolt 03L103831
- 23Sleeve 057103826
- 25Cover 06C103485P
- 27Part 03L103070A
- 27Part 04L103070B
- 32Pipe 03L103493AE
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03L103383BR Volkswagen Cylinder Head Gasket | Genuine OEM is fitted on: caddy kombi 2015-2020.
