03L121011JX Coolant Pump With Sealing Ring
- 03L121011HXNot stocked
Jul 2012 - 03L121011JXThis pageNot stocked
May 2015 - 03L121011PXNot stocked
Mar 2018 - 03L121011PCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

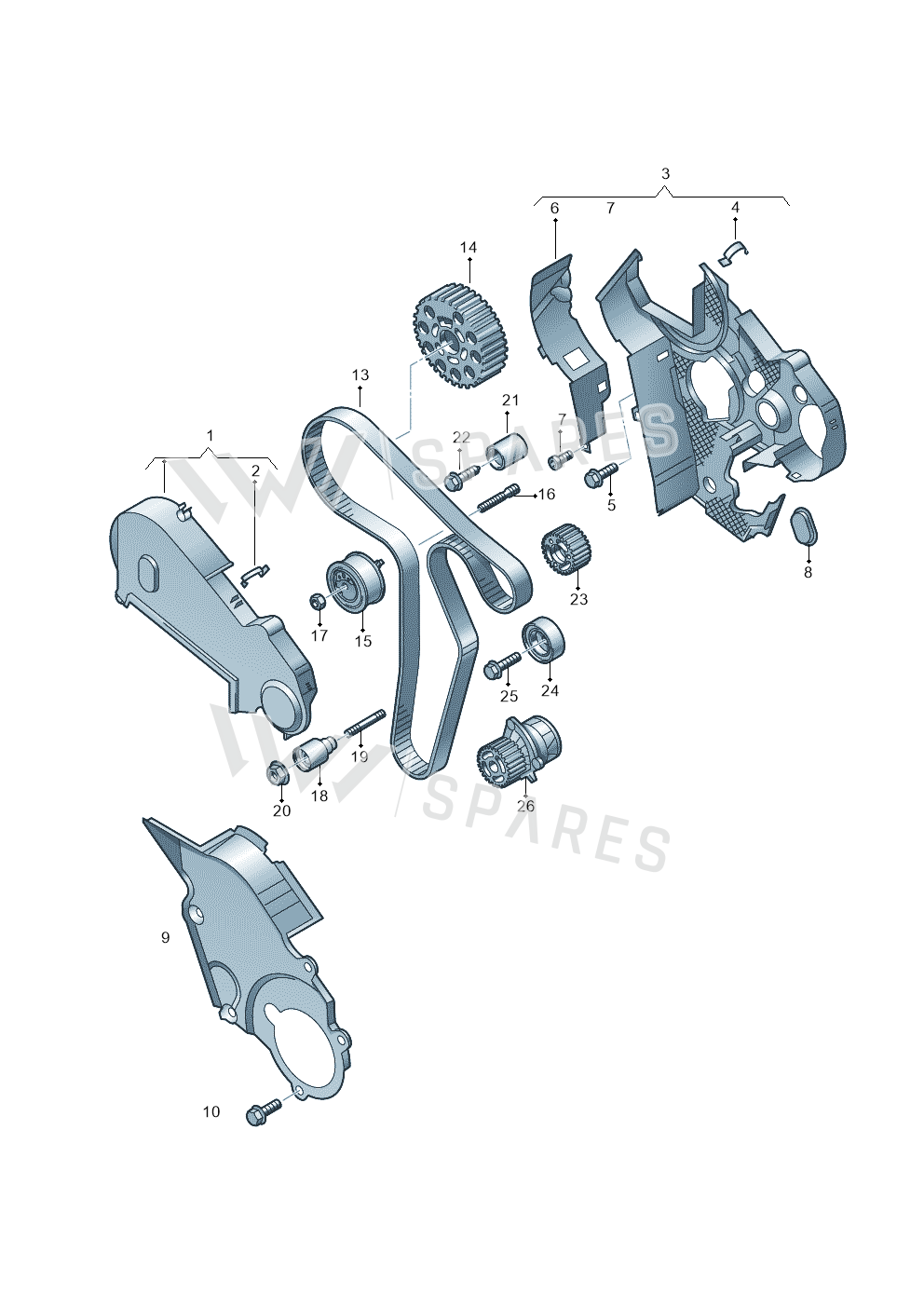

47 vehiclesCoolant Pump With Sealing Ring — locate Coolant Pump With Sealing Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Protection 03L109107B
- 1Protection 03L109107E
- 2Clip 026109150A
- 3Part 03L109145B
- 5Bolt N10082912
- 6Heat Sh 03L129969K
- 7Bolt N10555702
- 8Bungs 038971904
- 9Protection 03L109147D
- 9Protection 03L109147B
- 10Bolt N10451405
- 13Tooth Belt 03L109119J
- 13Tooth Belt 03L109119C
- 14Pulley 03L109111
- 15Tens Roll 03L109243F
- 15Tens Roll 03L109243B
- 16Bolt N90905502
- 17Collar Nut 038109454A
- 18Roller 03L109244G
- 18Roller 03L109244H
- 18Part 038109244J
- 18Part 038109244N
- 19Bolt N10444702
- 20Collar Nut N10609201
- 21Roller 03L109244D
- 22Bolt N10675602
- 24Roller 03L109244J
- 25Bolt N10699901
- 26Pump 03L121011J
Vehicle fitment table47
Europe (46)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Yeti | 2013-2017 | 26, 1 | 1 | ||
| superb | 2013-2015 | 1 | 1 | ||
| Rapid | 2012-2022 | 26, 1 | 1 | ||
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 1 | 1 | TM4 | |
| Toledo Reference | 2012-2015 | 1 | 1 | ||
| Polo | 2012-2014 | 1 | 1 | ||
| Ibiza Reference | 2012-2012 | 1 | 1 | ||
| Audi A5 Sportback | 2011-2017 | 1 | 1 | TM4 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 1 | 1 | TM4 | |
| Passat CC | 2011-2016 | 1 | 1 | ||
| transp. caravelle | 2011-2015 | 1 | 1 | CAA | |
| transp. dropside | 2011-2015 | 1 | 1 | CA | |
| California Camper | 2011-2015 | 1 | 1 | ||
| Audi Q3 quattro | 2011-2015 | 1 | 1 | CFGD,CLLB, | |
| audi a4 av. 2.0 tdi | 2011-2015 | 1 | 1 | ||
| Sharan Blue Motion | 2010-2015 | 1 | 1 | ||
| Caddy Maxi Kombi | 2010-2015 | 1 | 1 | ||
| Eos BlueMotion | 2010-2015 | 1 | 1 | ||
| Roomster | 2010-2015 | 26, 1 | |||
| audi a6 2.0 tdi | 2010-2015 | 1 | 1 | ||
| jetta | 2010-2014 | 1 | 1 | ||
| Fabia Scout | 2010-2014 | 26, 1 | |||
| Audi TTS Coupe 2.0 | 2010-2014 | 1 | 1 | TL4 | |
| Altea XL Reference | 2010-2013 | 1 | 1 | ||
| Alhambra Stylance | 2010-2013 | 1 | 1 | ||
| Leon Stylance | 2010-2012 | 1 | 1 | TP4 | |
| jetta variant | 2009-2014 | 1 | 1 | ||
| golf estate | 2009-2013 | 26, 1 | |||
| Yeti | 2009-2013 | 26, 1 | |||
| Fabia Ambiente | 2009-2013 | 1 | 1 | ||
| Amarok twin cab | 2009-2012 | 1 | 1 | CDCA,CNEA, | |
| transp. caravelle | 2009-2011 | 1 | 1 | CAA | |
| transp. dropside | 2009-2011 | 1 | 1 | CA | |
| California Camper | 2009-2011 | 1 | 1 | ||
| Audi A4 Av. Allroad | 2008-2016 | 1 | 1 | TM4 | |
| Scirocco 2.0 | 2008-2014 | 1 | 1 | ||
| superb comfort | 2008-2013 | 26, 1 | |||
| octavia ambiente | 2008-2013 | 26, 1 | |||
| Audi A3 Sportback | 2008-2013 | 1 | 1 | CFFA,CFFB, | CL |
| Passat CC | 2008-2012 | 1 | 1 | CFGB | D93 |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 1 | 1 | CGLA,CGLB, | |
| golf 2.0 | 2008-2011 | 1 | 1 | CFFA,CFFB, | |
| jetta | 2008-2011 | 1 | 1 | ||
| Exeo ST Reference | 2008-2011 | 1 | 1 | TM4 | |
| TIGUAN 08> | 2007- | 1 | 1 | TL4 | |
| JETTA 06> | 2006- | 1 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Rapid Ambition | 2011-2021 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pump With Sealing Ring is fitted on: Yeti 2013-2017; superb 2013-2015; Rapid 2012-2022; Audi Q5 qu. 2.0 TDI 2012-2017; Toledo Reference 2012-2015; Polo 2012-2014; Ibiza Reference 2012-2012; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; Passat CC 2011-2016; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; Audi Q3 quattro 2011-2015; audi a4 av. 2.0 tdi 2011-2015; Sharan Blue Motion 2010-2015; Caddy Maxi Kombi 2010-2015; Eos BlueMotion 2010-2015; Roomster 2010-2015; audi a6 2.0 tdi 2010-2015; jetta 2010-2014; Fabia Scout 2010-2014; Audi TTS Coupe 2.0 2010-2014; Altea XL Reference 2010-2013; Alhambra Stylance 2010-2013; Leon Stylance 2010-2012; jetta variant 2009-2014; golf estate 2009-2013; Yeti 2009-2013; Fabia Ambiente 2009-2013; Amarok twin cab 2009-2012; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; Audi A4 Av. Allroad 2008-2016; Scirocco 2.0 2008-2014; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; Passat CC 2008-2012; Audi Q5 qu. 2.0 TDI 2008-2012; golf 2.0 2008-2011; jetta 2008-2011; Exeo ST Reference 2008-2011; TIGUAN 08> 2007-; JETTA 06> 2006-; Rapid Ambition 2011-2021.
