03L130235AG Return Line
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

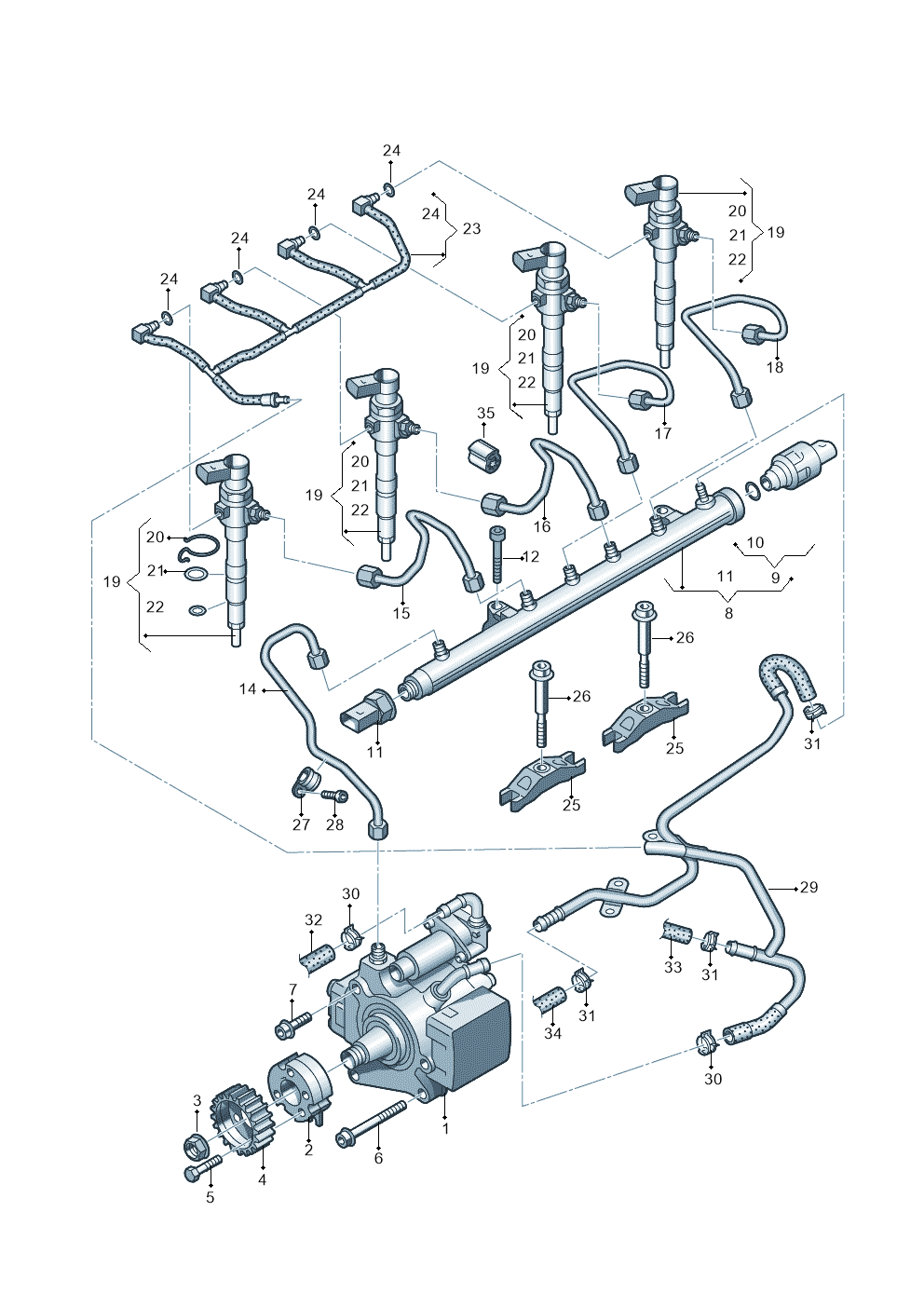

6 vehiclesReturn Line — locate Return Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Pump 03L130755AN
- 2Part 03L130238A
- 3Collar Nut WHT002244
- 4Pulley 03L130111E
- 5Screw N91180301
- 6Screw N10714501
- 7Screw WHT002494
- 8Rail 03L130089AA
- 9Valve 03L130764C
- 10Seal Ring WHT004740
- 11Sensor 03L906054A
- 12Screw N91131601
- 14Pipe 03L130321F
- 15Pipe 03L130301AM
- 17Pipe 03L130301F
- 19Injector 03L130277S
- 19Injector 03L130277SX
- 20Clip 03L130447
- 21Seal Ring WHT000884
- 22Seal Ring 03L130519
- 24Part WHT006492
- 24Part WHT005301
- 25Clamp Piec 03L130216
- 26Screw WHT003187
- 27Clamp N91171101
- 28Screw N10170303
- 29Fuel Line 03L201360AB
- 30Clamp 4B0422379
- 31Clamp N90986501
- 35Damper 03L130118
Vehicle fitment table6
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Passat saloon | 2010-2015 | 23 | |||
| Audi A1 Sportback | 2010-2015 | 25 | 1 | CAYC | TF3 |
| Polo | 2009-2014 | 25, 23 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Ameo 1,0 | 2016-2020 | 23 | |||
| Polo | 2014-2022 | 23 | |||
| Rapid Ambition | 2011-2021 | 23 |
Diagrams & fitment data powered by oemdiagrams.com
Return Line is fitted on: Passat saloon 2010-2015; Audi A1 Sportback 2010-2015; Polo 2009-2014; Ameo 1,0 2016-2020; Polo 2014-2022; Rapid Ambition 2011-2021.
