03L130235P Return Line
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

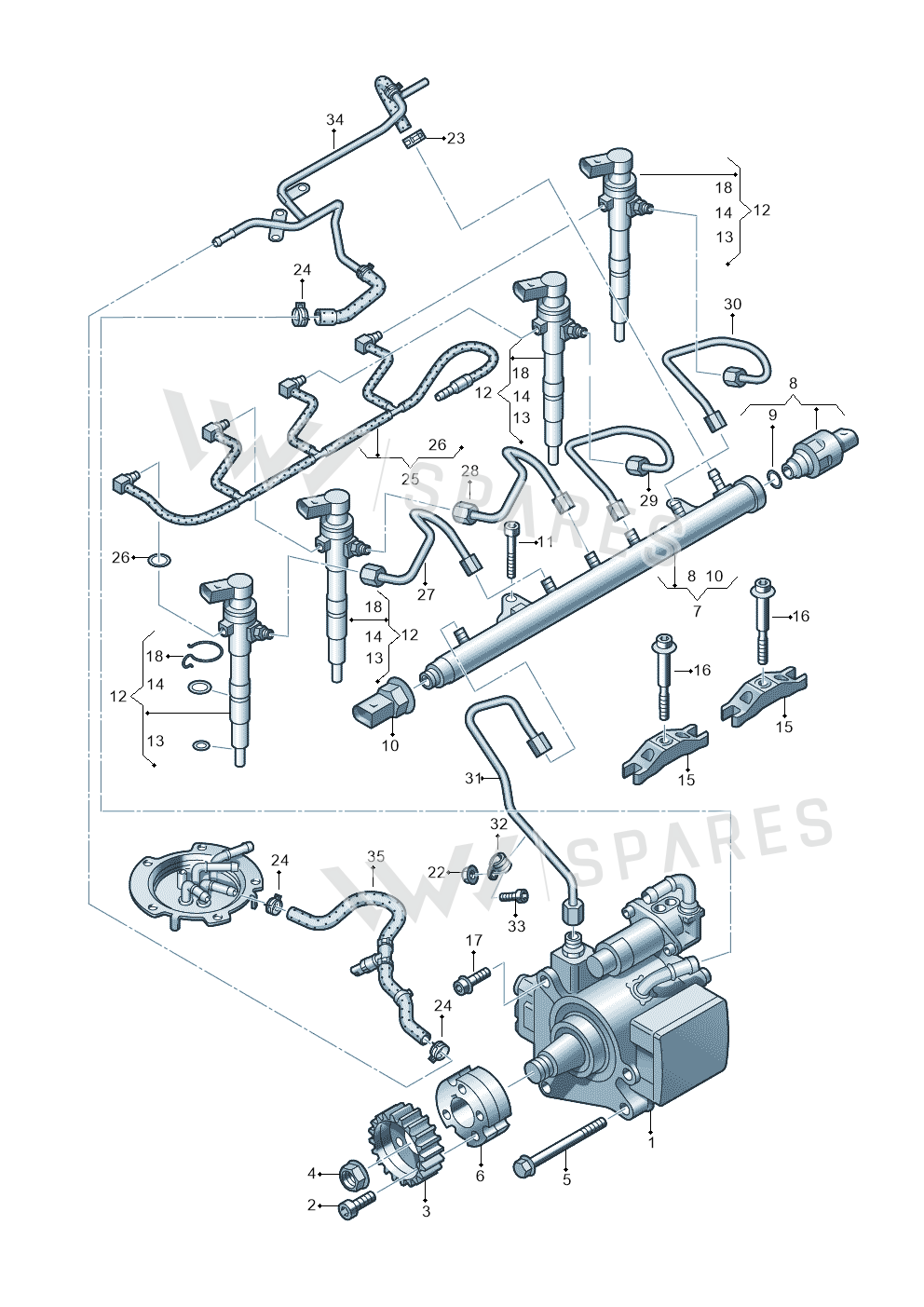

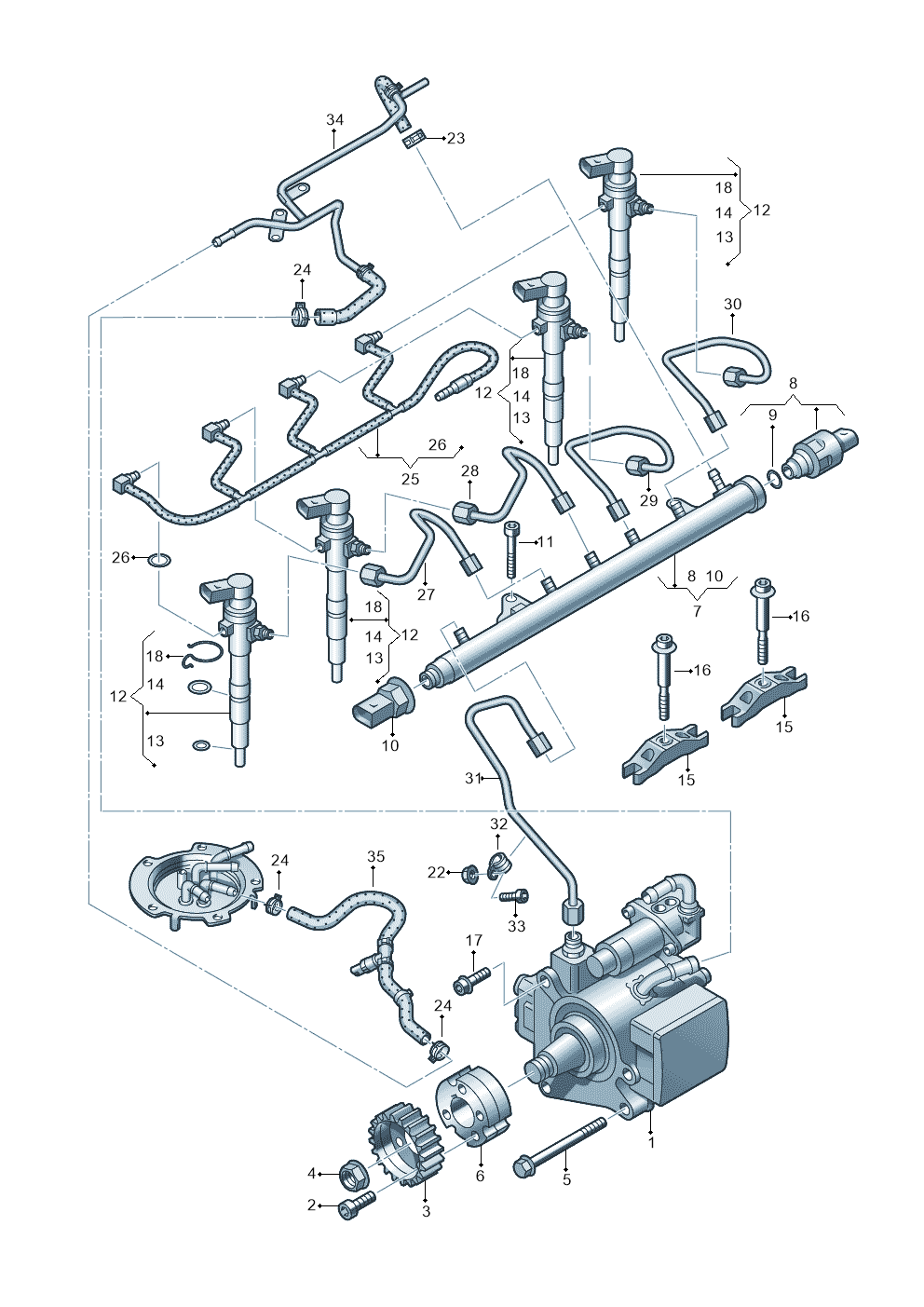

21 vehiclesReturn Line — locate Return Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Pump 03L130755E
- 2Screw N91180301
- 3Pulley 03L130111E
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Part 03L130238A
- 7Rail 03L130089B
- 8Part 03L130764A
- 10Sensor 03L906054A
- 11Screw N91131601
- 12Injector 03L130277B
- 14Seal Ring WHT000884
- 15Clamp Piec 03L130216
- 16Screw WHT003187
- 17Screw WHT002494
- 22Collar Nut N01508210
- 23Clamp N90986501
- 24Clamp 4B0422379
- 26Part WHT006492
- 26Part WHT005301
- 27Pipe 03L130301AM
- 29Pipe 03L130301F
- 31Pipe 03L130321F
- 32Clamp N91171101
- 33Screw N10170302
- 34Fuel Line 03L201360R
- 35Pipe 1K0130307BA
Vehicle fitment table21
Europe (21)
| Vehicle | Years | Pos. |
|---|---|---|
| Rapid | 2012-2022 | 25 |
| Ibiza Reference | 2011-2012 | 25 |
| Roomster | 2010-2015 | 25 |
| Fabia Scout | 2010-2014 | 25 |
| Altea XL Reference | 2010-2013 | 25 |
| Leon Stylance | 2010-2012 | 25 |
| golf estate | 2009-2013 | 25 |
| Yeti | 2009-2013 | 25 |
| Polo | 2009-2012 | 25 |
| Golf Plus 1.6 | 2009-2011 | 25 |
| superb comfort | 2008-2013 | 25 |
| octavia ambiente | 2008-2013 | 25 |
| Audi A3 Sportback | 2008-2013 | 25 |
| golf 2.0 | 2008-2011 | 25 |
| passat estate | 2008-2011 | 25 |
| jetta | 2008-2011 | 25 |
| Ibiza Reference | 2008-2011 | 25 |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 25 |
| JETTA 06> | 2006- | 25 |
| ALTEA 07> | 2006- | 25 |
| LEON 06> | 2005- | 25 |
Diagrams & fitment data powered by oemdiagrams.com
Return Line is fitted on: Rapid 2012-2022; Ibiza Reference 2011-2012; Roomster 2010-2015; Fabia Scout 2010-2014; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; golf estate 2009-2013; Yeti 2009-2013; Polo 2009-2012; Golf Plus 1.6 2009-2011; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; passat estate 2008-2011; jetta 2008-2011; Ibiza Reference 2008-2011; Audi A3 Cab. 2.0 TDI 2007-2013; JETTA 06> 2006-; ALTEA 07> 2006-; LEON 06> 2005-.
