Product overview
Genuine OEM Audi Engine Oil Sump Gasket, part number 04E103609. This gasket is designed to provide a critical, leak-free seal for the engine oil sump, preventing oil leaks and ensuring proper lubrication of internal engine components. It is essential for maintaining engine oil levels and preventing contamination. Weighing 0.0221 kg and measuring 0.56m in length, this gasket is manufactured to exact specifications. Choosing a genuine OEM gasket ensures the correct material properties and precise dimensions for a reliable, long-lasting seal in the engine's lubrication system.
Catalogue entry: GASKET.
Fitted with: D176501A1 SEAL, 06L103801 BOLT, N10725401 BOLT, N90500605 SCREW, 04E103601P OIL SUMP, 03C115721E UNION, 04C103161D SEAL, 04C103161F SEAL, 04E103153B FLANGE, N10682501 SCREW, 04C103085B SEAL, N91108701 BOLT.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 39269097
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 56 × 8 × 1 cm
- Shipping weight
- 0.02 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

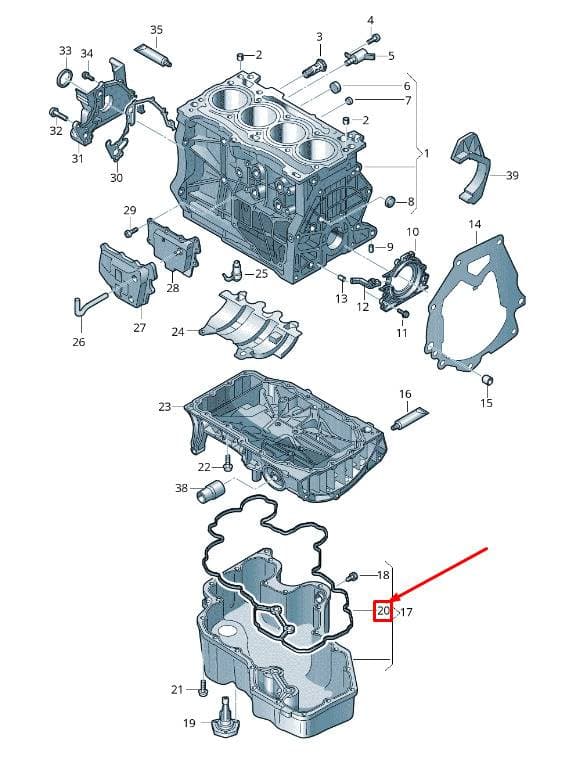

Parts diagram & fitment
3 vehiclesGasket For Oil Sump — locate 04E103609 Audi Engine Oil Sump Gasket | OEM Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 2Sleeve 03C103143
- 3Bolt N90813202
- 6Cover N0119173
- 7Cover N0119185
- 8Cover N0119098
- 9Part 026103139
- 10Flange 04E103170Q
- 10Flange 04E103170A
- 11Bolt N10653301
- 13Part N0432072
- 14Spacer Pl 04E103551AD
- 16Seal D176501A1
- 17Oil Sump 04E103600D
- 18Bolt 06L103801
- 21Bolt N10725401
- 22Screw N90500605
- 23Oil Sump 04E103601P
- 24Lock 04E103623J
- 25Nozzle 04E103157C
- 26Hose 04E103493T
- 27Cover 04E103729
- 28Separator 04E103464AM
- 29Bolt N90737803
- 30Seal 04C103161D
- 31Flange 04E103153B
- 32Screw N10682501
- 33Seal 04C103085B
- 34Bolt N91108701
- 38Union 03C115721E
- 39Cover 04E103565
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Sportback | 2016-2020 | 20 | 1 |
| audi a4 2.0 | 2015-2019 | 20 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A4L 2.0 | 2016- | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04E103609 Audi Engine Oil Sump Gasket | OEM Seal is fitted on: Audi A5 Sportback 2016-2020; audi a4 2.0 2015-2019; Audi A4L 2.0 2016-.
