04E121064J Coolant Pipe
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

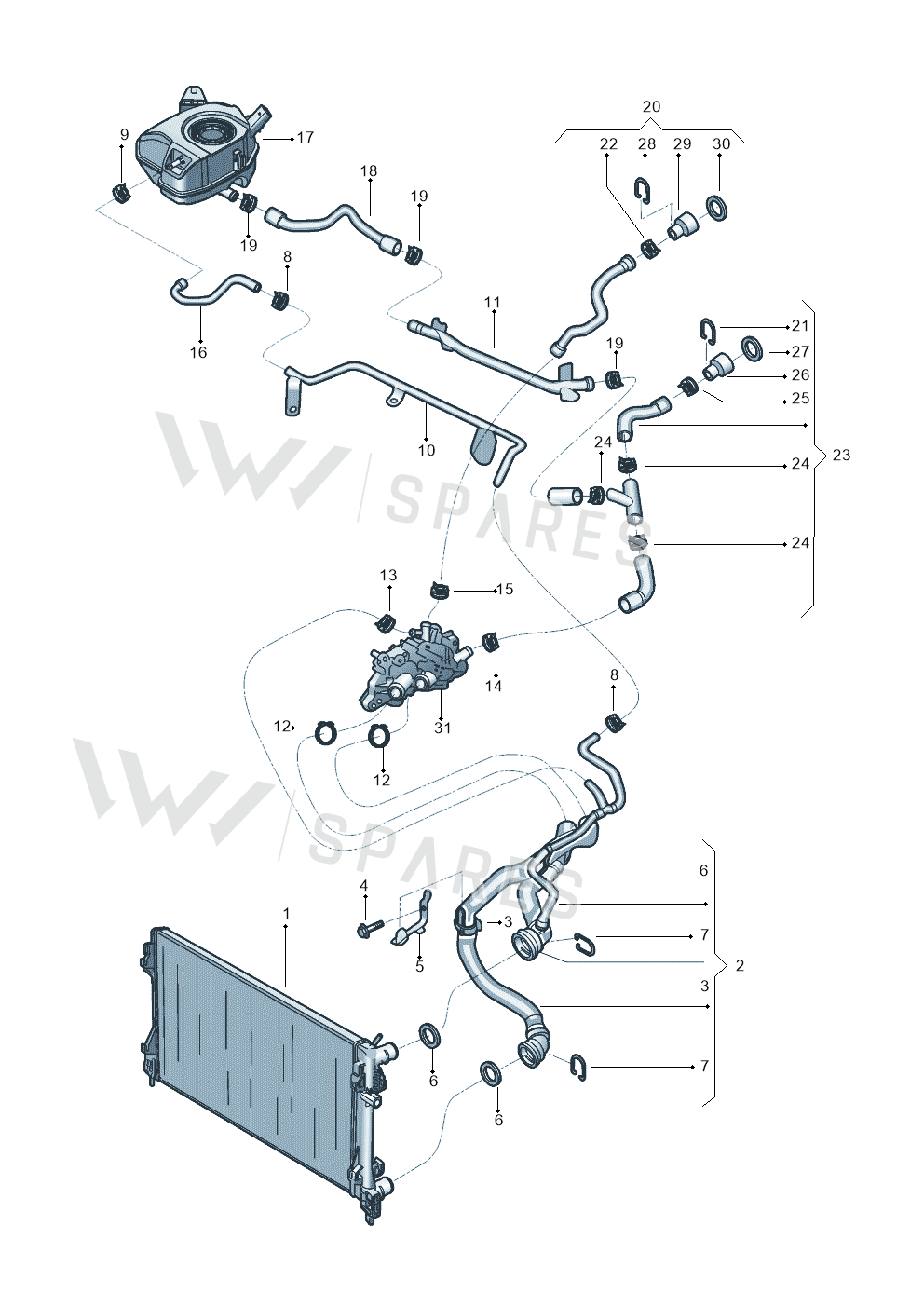

41 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 2Hose 2QB121049A
- 3Bracket 5N0121093C
- 4Bolt N10653102
- 5Clip 6R0121093G
- 6Seal Ring N90765301
- 7Spring 1J0121142
- 8Clamp N90770201
- 9Clamp N90686701
- 11Water Pipe 04E121070T
- 12Clamp N90687201
- 14Clamp N90687001
- 16Hose 2QB121447
- 18Hose 2QB122109G
- 19Clamp N90686902
- 20Hose 2Q0122157Q
- 20Hose 2Q0122157E
- 23Hose 2QB122073
- 26Coupl Piece 3B0122291B
Vehicle fitment table41
Europe (25)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| fabia | 2021- | 10 | 1 | |
| Caddy Maxi Kombi | 2020-2024 | 10 | 1 | |
| Kamiq | 2019- | 10 | 1 | |
| Leon style | 2019- | 10 | 1 | |
| Octavia | 2019-2024 | 10 | 1 | |
| Polo 1.0 BlueMotion | 2017-2024 | 10 | 1 | |
| Karoq | 2017-2022 | 10 | 1 | |
| Octavia | 2017-2020 | 10 | 1 | |
| golf 2.0 | 2016-2020 | 10 | 1 | |
| Leon ST Stylance | 2016-2020 | 10 | 1 | |
| Ibiza Stylance | 2015- | 15 | 1 | |
| caddy kombi | 2015-2020 | 10 | 1 | |
| golf 1.6 | 2015-2019 | 10 | 1 | |
| Toledo Reference | 2015-2019 | 15 | 1 | |
| fabia | 2014-2022 | 15 | 1 | |
| Jetta 1.6 | 2014-2018 | 10 | 1 | |
| Polo 1.4 BlueMotion | 2014-2017 | 15 | 1 | |
| Golf 1.4 BlueMotion | 2014-2017 | 10 | 1 | |
| Golf Estate 1.4 | 2014-2017 | 10 | 1 | |
| Golf Estate | 2013-2017 | 10 | 1 | |
| Yeti | 2013-2017 | 10 | 1 | |
| Rapid | 2012-2022 | 15 | 1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 10 | 1 | |
| Octavia | 2012-2017 | 10 | 1 | |
| Leon ST Stylance | 2012-2016 | 10 | 1 |
Other markets (16)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Virtus 1,0 | 2022- | 1 | 1 | |
| Taigun 1.0 | 2021- | 1 | 1 | |
| Taos 1.4 | 2021-2023 | 10 | 1 | |
| Polo 1.6 | 2020-2022 | 22 | 1 | |
| T-Cross 1,0 | 2019- | 10 | 1 | |
| Jetta 1.4 | 2017-2024 | 10 | 1 | |
| Voyage | 2016-2023 | 28 | 1 | T4I |
| saveiro | 2016-2017 | 18 | 1 | |
| Gol 1.6 | 2015-2023 | 28 | 1 | T4I |
| Polo 1.6 | 2015-2020 | 15 | 1 | |
| Crossfox | 2014-2021 | 18 | 1 | |
| Spacefox | 2014-2019 | 18 | 1 | |
| saveiro | 2013- | 18 | 1 | |
| Gol 1.6 | 2012- | 18 | 1 | |
| POLO HATCH "ZA"06> | 2005- | 10 | 1 | |
| GOLF "ZA." | 2005-2007 | 10 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: fabia 2021-; Caddy Maxi Kombi 2020-2024; Kamiq 2019-; Leon style 2019-; Octavia 2019-2024; Polo 1.0 BlueMotion 2017-2024; Karoq 2017-2022; Octavia 2017-2020; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Ibiza Stylance 2015-; caddy kombi 2015-2020; golf 1.6 2015-2019; Toledo Reference 2015-2019; fabia 2014-2022; Jetta 1.6 2014-2018; Polo 1.4 BlueMotion 2014-2017; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Golf Estate 2013-2017; Yeti 2013-2017; Rapid 2012-2022; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Leon ST Stylance 2012-2016; Virtus 1,0 2022-; Taigun 1.0 2021-; Taos 1.4 2021-2023; Polo 1.6 2020-2022; T-Cross 1,0 2019-; Jetta 1.4 2017-2024; Voyage 2016-2023; saveiro 2016-2017; Gol 1.6 2015-2023; Polo 1.6 2015-2020; Crossfox 2014-2021; Spacefox 2014-2019; saveiro 2013-; Gol 1.6 2012-; POLO HATCH "ZA"06> 2005-; GOLF "ZA." 2005-2007.
