04E198119 Repair Kit
- 04E198119This pageNot stocked
Mar 2021 - 04E198119ASuperseded
Jan 2026 - 04E198119BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

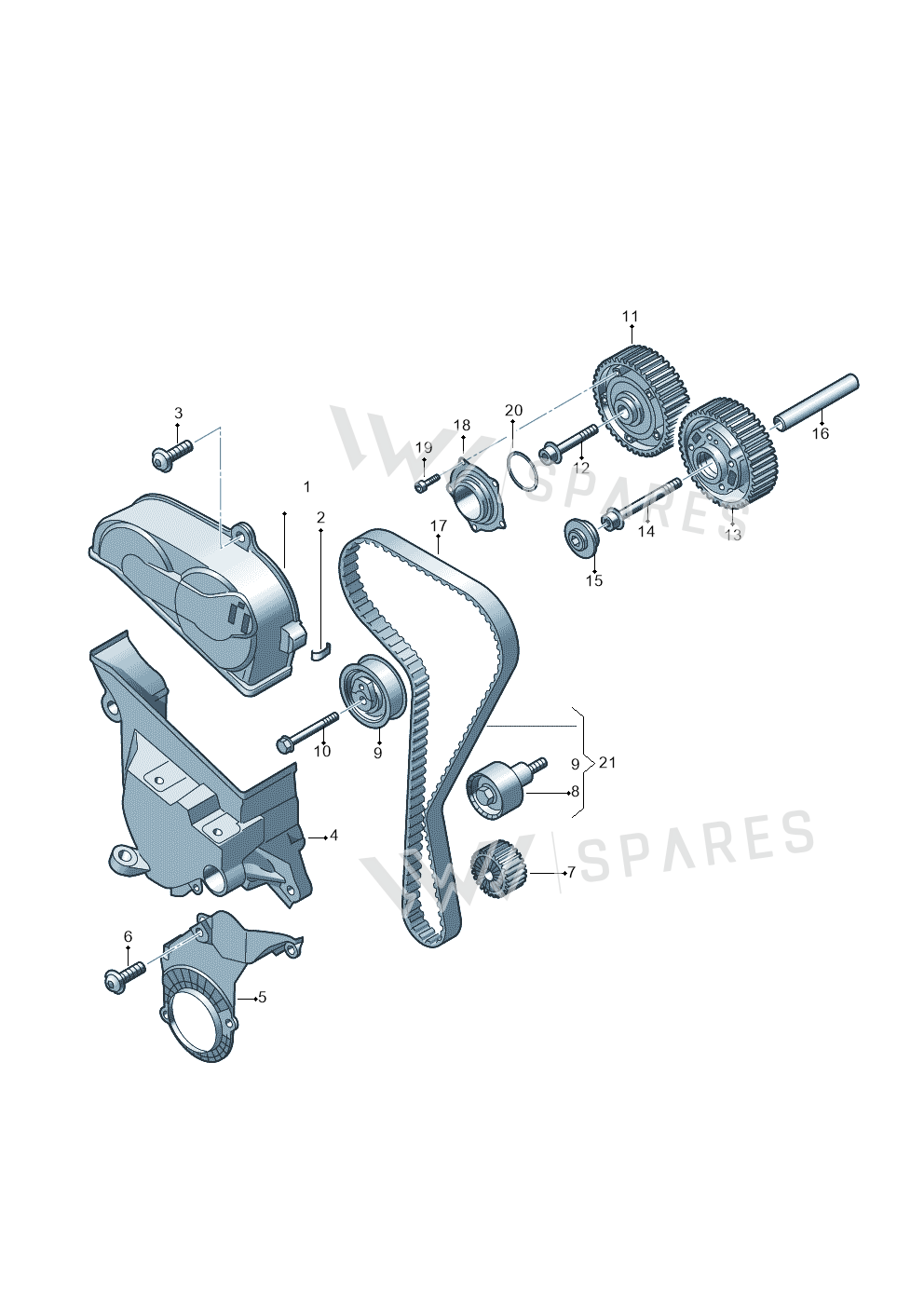

28 vehiclesRepair Kit — locate Repair Kit in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Protection 04E109108E
- 2Clip 026109150A
- 3Bolt N91096801
- 5Protection 04C109175F
- 5Protection 05C109175
- 5Protection 05E109175C
- 8Roller 04E109244B
- 9Tens Roll 04E109479A
- 10Screw N10690201
- 11Adjuster 04C109088D
- 12Screw N91239501
- 13Adjuster 04C109088C
- 15Screw WHT004914
- 16Sleeve 03C103825A
- 16Sleeve 05E103825
- 17Tooth Belt 04E109119F
- 18Cover 04E109153
- 19Screw N10546403
- 19Bolt N10546404
- 20Seal Ring WHT007568
- 21Repair Kit 04E198119A
Vehicle fitment table29
Europe (26)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A1 sportback 1.0 | 2018- | 21 | 1 |
| Kodiaq | 2018-2022 | 1 | 1 |
| Audi Q3 quattro | 2018-2019 | 21 | 1 |
| Arona FR | 2017- | 21 | 1 |
| Ibiza FR | 2017- | 21 | 1 |
| Tiguan 2.0 4Motion | 2017-2024 | 9 | 1 |
| Kodiaq | 2016-2024 | 1 | 1 |
| Audi A3 Sportback | 2016-2020 | 21 | 1 |
| Audi A3 Cabrio | 2016-2020 | 21 | 1 |
| Audi A5 Sportback | 2016-2020 | 21 | 1 |
| Beetle | 2016-2019 | 17 | 1 |
| new beetle cabriolet | 2016-2019 | 17 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 21 | 1 |
| Ibiza Stylance | 2015- | 21 | X |
| Superb Combi | 2015-2024 | 1 | 1 |
| audi a4 2.0 | 2015-2019 | 21 | 1 |
| Audi Q3 2.0 TDI | 2014-2019 | 21 | 1 |
| Audi A1 Sportback | 2014-2018 | 21 | 1 |
| Jetta 1.6 | 2014-2018 | 17 | 1 |
| jetta | 2014-2017 | 17 | 1 |
| Jetta 1.4 | 2014-2017 | 17 | 1 |
| Audi A3 Cab. 1.4 | 2013-2016 | 21 | 1 |
| Octavia | 2012-2017 | 1 | 1 |
| Audi A3 Sportback | 2012-2016 | 21 | 1 |
| Audi Q3 quattro | 2011-2015 | 21 | 1 |
| Audi A1 Sportback | 2010-2015 | 21 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta 1.4 | 2017-2024 | 17 | 1 |
| POLO HATCH "ZA"06> | 2005- | 17 | 1 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Toledo Reference | 2015-2019 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Repair Kit is fitted on: Audi A1 sportback 1.0 2018-; Kodiaq 2018-2022; Audi Q3 quattro 2018-2019; Arona FR 2017-; Ibiza FR 2017-; Tiguan 2.0 4Motion 2017-2024; Kodiaq 2016-2024; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi A5 Sportback 2016-2020; Beetle 2016-2019; new beetle cabriolet 2016-2019; Audi Q2 2.0 TDI 2016-2018; Ibiza Stylance 2015-; Superb Combi 2015-2024; audi a4 2.0 2015-2019; Audi Q3 2.0 TDI 2014-2019; Audi A1 Sportback 2014-2018; Jetta 1.6 2014-2018; jetta 2014-2017; Jetta 1.4 2014-2017; Audi A3 Cab. 1.4 2013-2016; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Audi Q3 quattro 2011-2015; Audi A1 Sportback 2010-2015; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-.
