Product overview
Genuine OEM Volkswagen Cylinder Head With Valves, part number 04L103064A. This component forms the upper part of the engine's combustion chamber, housing valves and camshafts. It is the main structural part of the engine's top end. This cylinder head weighs 12.928 kg and has dimensions of 0.455m x 0.22m x 0.11m. Genuine OEM cylinder heads are manufactured to exact tolerances for proper sealing and heat dissipation, crucial for engine longevity and performance.
Catalogue entry: CYL HEAD.
Fitted with: 04L103064AX CYL HEAD, 06D103251 dowel pin, WHT005673 SCREW, WHT005676 WASHER, 04L103383BJ SEAL, 04L103383BK SEAL, 04L103383BL SEAL, D176501A1 SEAL, 04L103483 SEAL, 03L103483S SEAL, 04L103631A GROMMET, 059103631D GROMMET.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45.5 × 22 × 11 cm
- Shipping weight
- 12.93 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CRFA, CRFC
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

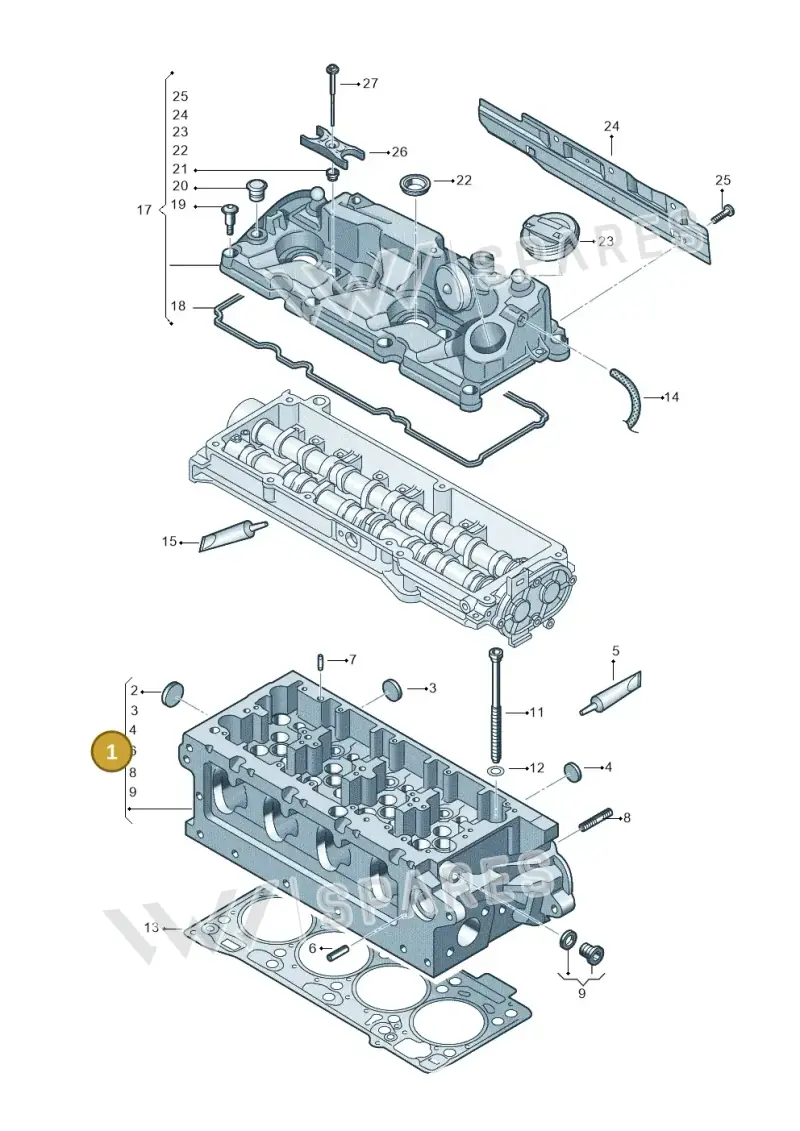

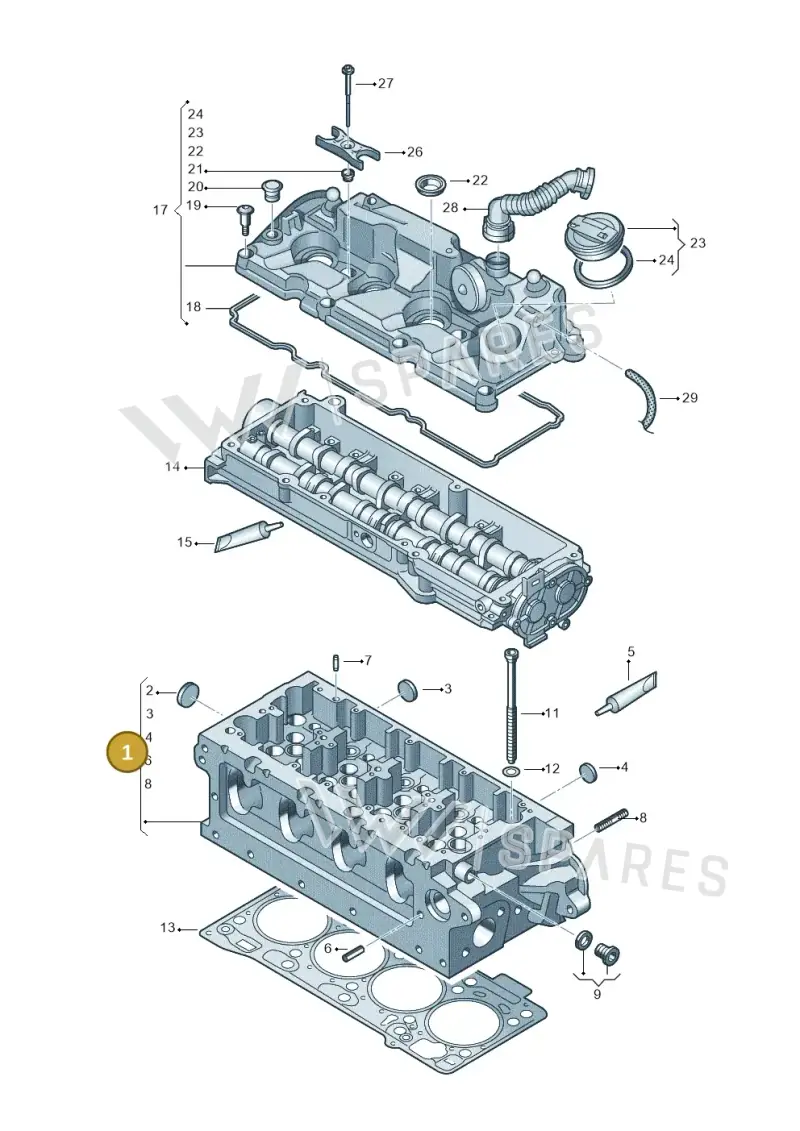

20 vehiclesCylinder Head With Valves — locate 04L103064A Volkswagen Cylinder Head With Valves | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly29
- 1Cylinder HeadRight04L103064AX
- 2Cover N90976102
- 3Cover N01191410
- 4Cover N01190710
- 5Sealant D200005A2
- 6Part N10774801
- 7Part 06D103251
- 8Bolt N90188902
- 9Bolt N91184201
- 11Screw WHT005673
- 12Washer WHT005676
- 13Seal 04L103383BK
- 13Seal 04L103383BL
- 13Seal 04L103383BJ
- 15Seal D176501A1
- 17Cover 03L103469AD
- 18Part 03L103483S
- 18Part 04L103483
- 19Part 04L103831
- 19Part 04L103448
- 20Part 06L103801
- 20Part 04L103801
- 21Part 059103631D
- 21Part 04L103631A
- 22Part 04L103070B
- 22Part 04L103070A
- 23Cover 06K103485B
- 24Heat Sh 04L129969E
- 25Bolt N10555702
Vehicle fitment table20
Europe (20)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 1 | 1 | ||
| Leon style | 2019- | 1 | 1 | ||
| Golf 2.0 BlueMotion | 2019-2024 | 1 | 1 | ||
| Octavia | 2019-2024 | 1 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 1 | 1 | ||
| Arteon | 2017-2023 | 1 | 1 | ||
| Octavia | 2017-2020 | 1 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 1 | 1 | ||
| Kodiaq | 2016-2024 | 1 | 1 | ||
| golf 2.0 | 2016-2020 | 1 | 1 | ||
| Leon ST Stylance | 2016-2020 | 1 | |||
| Audi A3 Sportback | 2016-2020 | 1 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 1 | N | ||
| Touran 2,0 BlueMotion | 2015-2024 | 1 | 1 | ||
| Superb Combi | 2015-2024 | 1 | 1 | ||
| Passat saloon | 2014-2024 | 1 | 1 | ||
| Golf Sportsvan 1.6 | 2014-2020 | 1 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 1 | 1 | ||
| Octavia | 2012-2017 | 1 | 1 | ||
| Leon ST Stylance | 2012-2016 | 1 |
