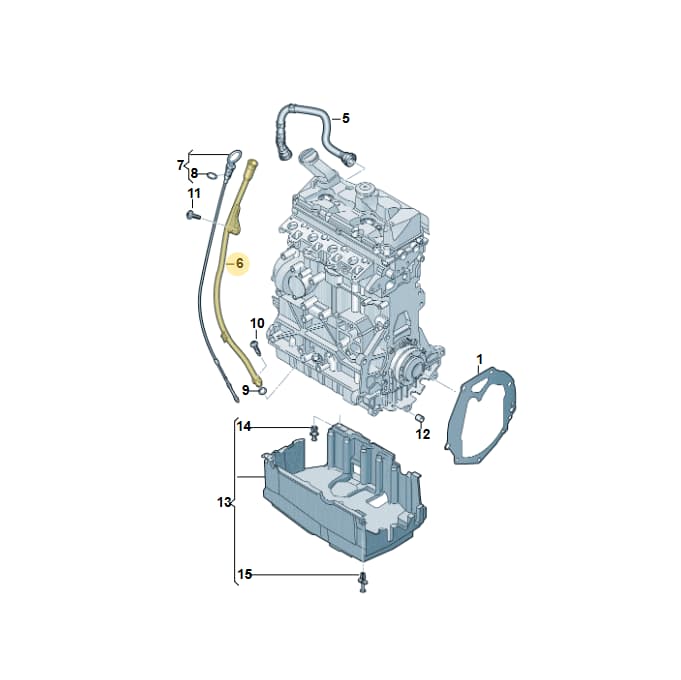

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Oil Dipstick Tube, part number 04L115629D. This component is specifically designed to guide the engine oil dipstick, ensuring it reaches the correct position within the engine for accurate oil level checks. It is installed directly into the engine block. Weighing 0.07 kg and measuring approximately 565mm in length, genuine OEM tubes provide the correct routing geometry and material resistance to engine heat and oil, ensuring long-term reliability and proper function.
Catalogue entry: TUBE.
Fitted with: 04L115629F TUBE, 04L115611M OIL DIPSTI, N90043201 SEAL. RING, N91096701 BOLT, N10473402 SCREW, 04L115611J OIL DIPSTI.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 56.5 × 10 × 7.5 cm
- Shipping weight
- 0.07 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CXEB, CXEC, CXFA, CXGA, CXGB, CXHA, CXHB
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesTube For Oil Dipstick — locate 04L115629D Volkswagen Oil Dipstick Tube | Engine in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Coverplate 06J103645K
- 2Insulation 04L103954BL
- 2Insulation 04L103954BQ
- 3Insulation 04L103954AR
- 3Insulation 04L103954BK
- 4Insulation 04L103954BG
- 4Insulation 04L103954BJ
- 5Hose 04L103493G
- 5Hose 04L103493L
- 5Hose 04L103493N
- 6Tube 04L115629F
- 7Oil Dipsti 04L115611J
- 7Oil Dipsti 04L115611M
- 8Seal Ring WHT001969
- 9Seal Ring N90043201
- 10Bolt N91096701
- 11Screw N10473402
- 12Sleeve 01E301153H
- 12Sleeve 022103139B
- 13Cover 04L103660J
- 13Cover 04L103660Q
- 14Part 03L103728
- 15Spring Rivet 03L863788A
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| transport. multivan | 2019-2024 | 6 | 1 | |
| caravelle | 2019-2024 | 6 | 1 | |
| Single-cab transp. | 2019-2024 | 6 | 1 | |
| caravelle | 2015-2019 | 12 | 1 | CXEB,CXEC |
| Single-cab transp. | 2015-2019 | 12 | 1 | |
| California Camper | 2015-2019 | 12 | 1 | CXEB,CXEC |
Diagrams & fitment data powered by oemdiagrams.com
04L115629D Volkswagen Oil Dipstick Tube | Engine is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
