04L130235K Return Line
- 04L130235CNot stocked
Jun 2013 - 04L130235GNot stocked
Apr 2017 - 04L130235KThis pageNot stocked
Mar 2017 - 04L130235PCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

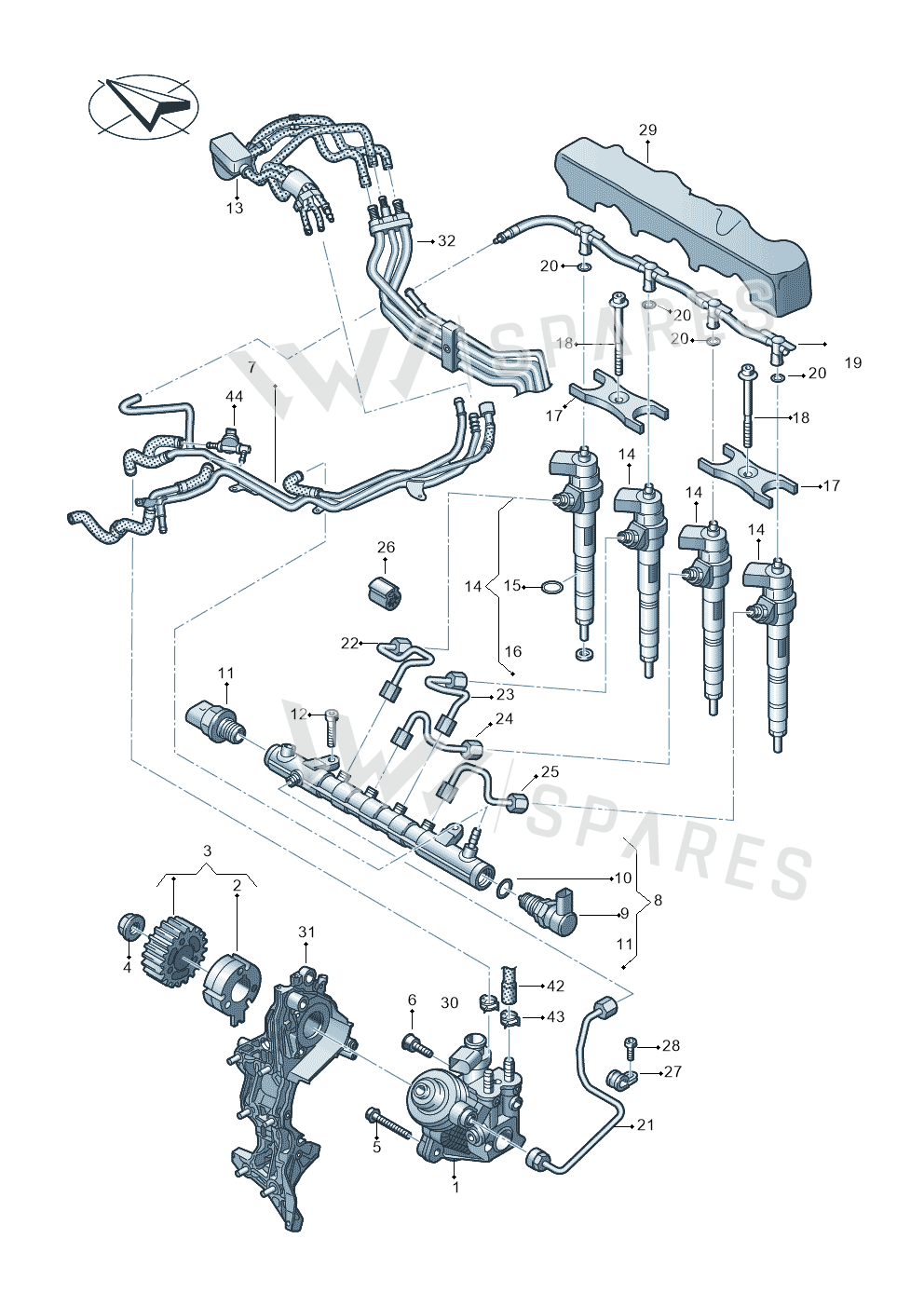

11 vehiclesReturn Line — locate Return Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Pump 04L130755E
- 3Pulley 04L130101C
- 3Pulley 04L130101
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Bolt N10665001
- 7Pipe 04L201360AG
- 7Pipe 04L201360AH
- 7Pipe 04L201360AK
- 7Pipe 04L201360AQ
- 7Pipe 04L201360AF
- 8Rail 04L130089G
- 9Valve 04L130764D
- 9Valve 04L130764C
- 10Seal Ring WHT008239
- 10Seal Ring WHT004740A
- 11Sensor 04L906054E
- 11Sensor 04L906054
- 12Screw N91128701
- 13Repair Set 8W0201214AE
- 14Injector 04L130277AB
- 14Injector 04L130277AC
- 14Injector 04L130277AE
- 14Injector 04L130277AF
- 14Injector 04L130277AL
- 14Injector 04L130277AM
- 14Injector 04L130277N
- 14Injector 04L130277P
- 15Seal Ring WHT000884
- 16Seal Ring 059130519
- 17Clamp Piec 04L130216
- 18Screw WHT005478
- 20Seal Ring WHT006497
- 21Pipe 04L130321
- 22Pipe 03L130301AR
- 23Pipe 03L130301BF
- 24Pipe 03L130301BG
- 25Pipe 03L130301BA
- 26Damper 03L130118
- 27Clamp N91171101
- 28Bolt N10335206
- 29Bump Strip 04L130380J
- 30Clamp 4B0422379
- 44Sensor 04B906054C
Vehicle fitment table11
Europe (11)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q5 | 2016-2020 | 19 | 1 |
| Audi A5 Sportback | 2016-2020 | 19 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 19 | 1 |
| audi a4 2.0 | 2015-2019 | 19 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 19 | |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 19 | |
| Audi A5 Sportback | 2011-2017 | 19 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 19 | 1 |
| audi a4 av. 2.0 tdi | 2011-2015 | 19 | |
| audi a6 2.0 tdi | 2010-2015 | 19 | |
| Audi A4 Av. Allroad | 2008-2016 | 19 |
Diagrams & fitment data powered by oemdiagrams.com
Return Line is fitted on: Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; audi a6 qu. 3.0 tdi 2014-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016.
