059103150J Sealing Flange
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

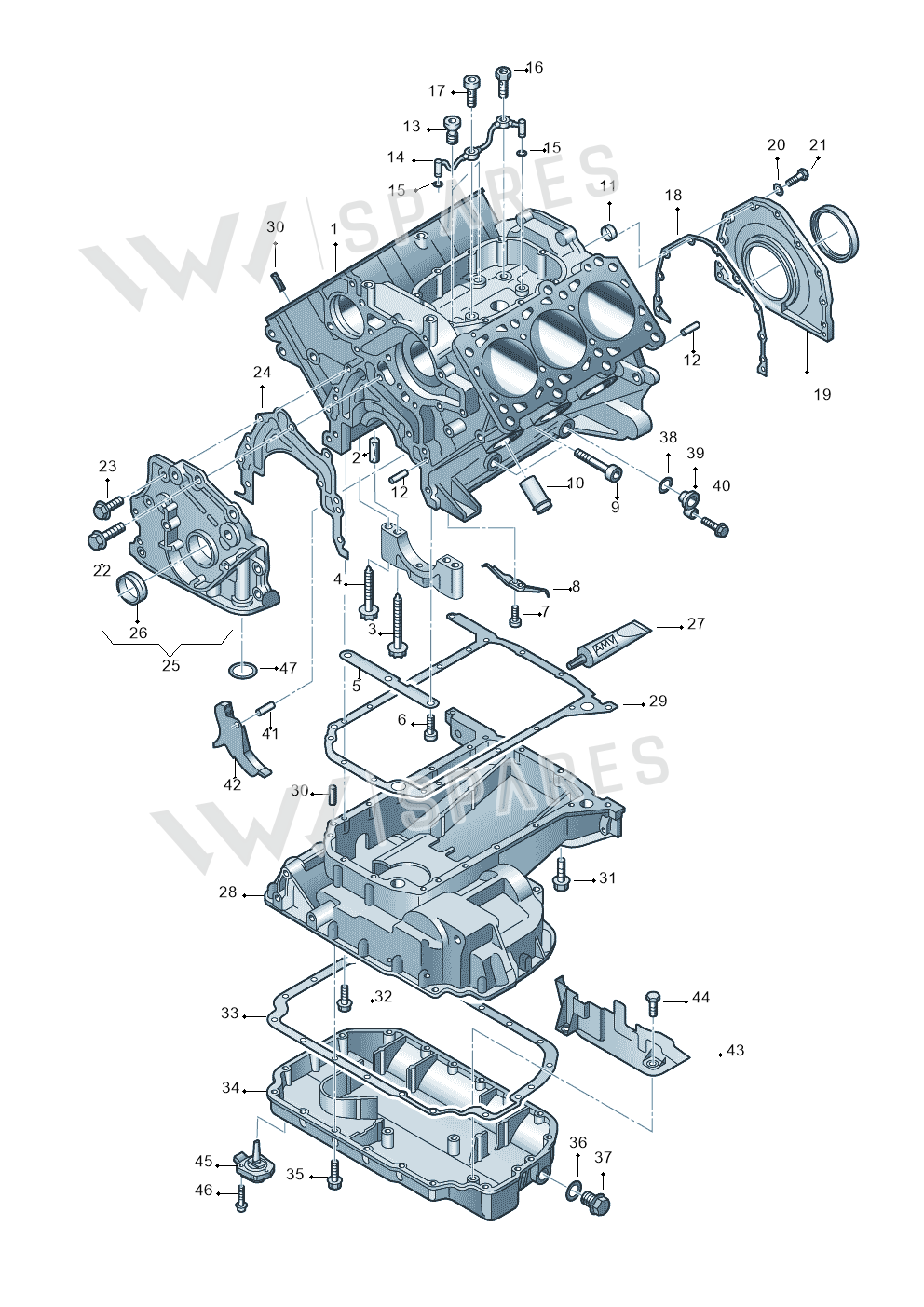

13 vehiclesSealing Flange — locate Sealing Flange in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 2Sleeve N90777601
- 3Bolt 059103039F
- 4Bolt 059103039G
- 5Brace 059103128
- 5Brace 059103128D
- 6Screw N0147392
- 7Screw N10169902
- 8Vent 059103158D
- 9Screw N10238803
- 10Connection 059121163
- 11Cover N0119034
- 12Part N0432072
- 13Valve 059103175F
- 14Line 059103291A
- 15Seal Ring N90740801
- 16Vent 059115540B
- 17Screw 059103728
- 18Seal 059103181E
- 19Flange 059103171D
- 20Bolt N01021527
- 21Washer N01152423
- 22Bolt 059103531A
- 23Bolt N10063602
- 24Seal 059103161E
- 24Seal 059103161C
- 24Seal 059103161F
- 25Part 059103150F
- 26Seal Washer 054115147B
- 27Seal D176404A2
- 28Oil Sump 059103603J
- 30Part 055105277
- 31Bolt N90851701
- 32Bolt N90851601
- 33Seal 059103610B
- 34Oil Sump 059103604D
- 34Oil Sump 059103604F
- 35Bolt N90824401
- 36Seal Ring N0138495
- 37Plug N90660601
- 38Seal Ring N0138321
- 38Seal Ring N90500101
- 39Screw N0160292
- 39Cover 078103113D
- 40Bolt N0902612
- 41Part N10105801
- 42Clamp Lvr 059103343D
- 43Bump Strip 059103340A
- 44Bolt N01021612
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| SUPERB 02> | 2001- | 25 | 1 | AYM | D1G |
| Audi A4/S4/Av./qu. | 2001-2004 | 25 | 1 | ||
| Audi A6/Wagon/quattro | 2001-2004 | 25 | 1 | ||
| Audi A6 Allroad qu. | 2000-2005 | 25 | 1 | T5T | |
| Passat/4Motion/W8 | 2000-2002 | 25 | 1 | T6T | |
| Audi A8 quattro | 1999-2002 | 25 | 1 | ||
| Audi A4/Av.qu. | 1999-2001 | 25 | 1 | ||
| Audi A4/Avant | 1999-2001 | 25 | 1 | ||
| AUDI A8 | 1998-2002 | 25 | 1 | ||
| Passat syncro/4Motion | 1998-2000 | 25 | 1 | ||
| Audi A6/Avant | 1997-2001 | 25 | 1 | AKE | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 25 | 1 | AKE | |
| Passat | 1997-2000 | 25 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Sealing Flange is fitted on: SUPERB 02> 2001-; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A6 Allroad qu. 2000-2005; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; Audi A4/Av.qu. 1999-2001; Audi A4/Avant 1999-2001; AUDI A8 1998-2002; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Passat 1997-2000.
