059103151CD Sealing Flange
- 059103150BHNot stocked
Dec 2011 - 059103151BJNot stocked
Feb 2013 - 059103151CDThis pageNot stocked
Apr 2015
- Current number059103151BQCurrent number
- Current number059103161AJCurrent number
- Current numberWHT005400Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

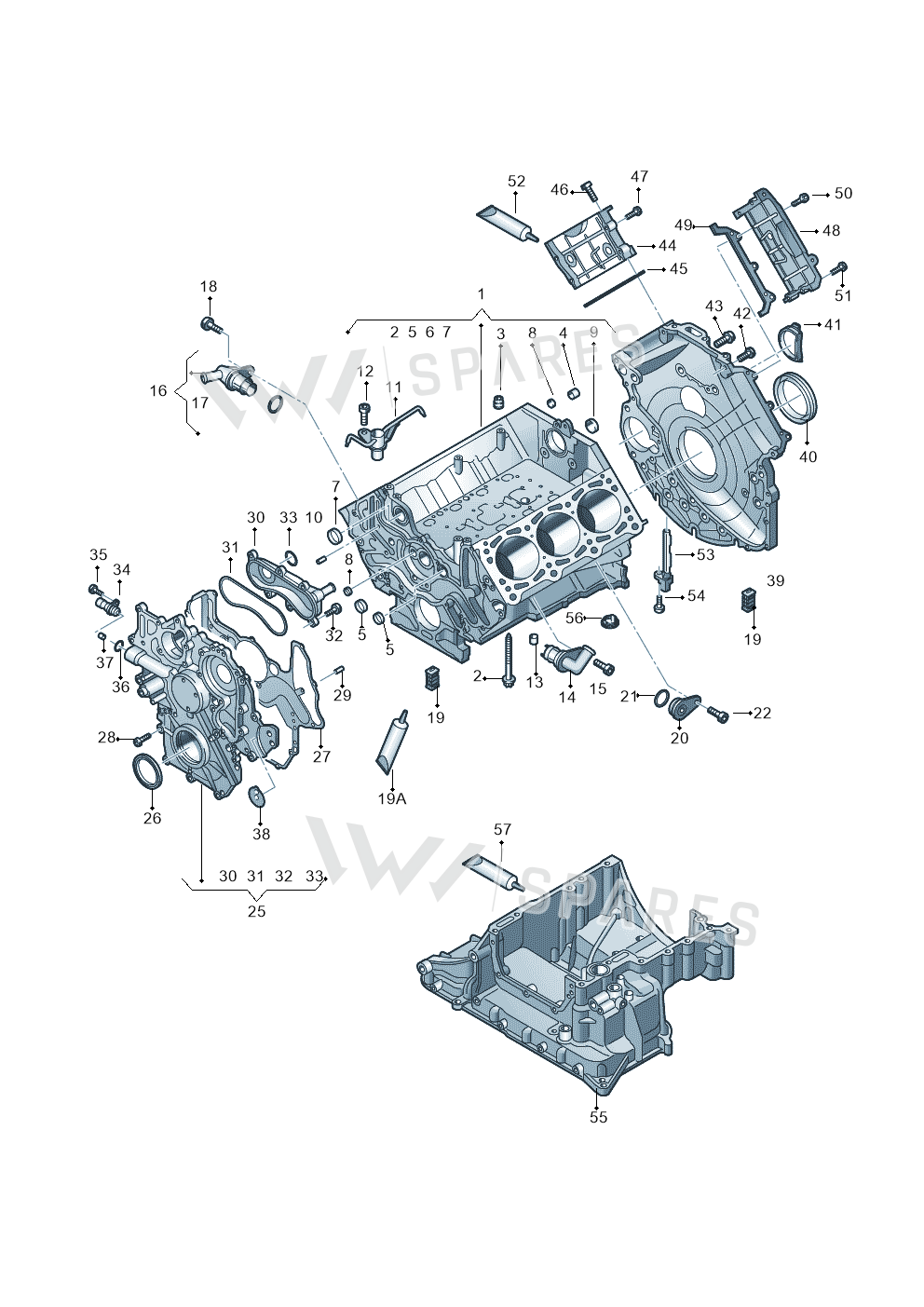

6 vehiclesSealing Flange — locate Sealing Flange in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Crankcase 059103011FM
- 1Crankcase 059103011HA
- 2Bolt WHT003959
- 4Sleeve 022103139B
- 5Cover N01190310
- 6Cover N0119047
- 7Cover N0119085
- 8Cover N91081801
- 9Cover N01191410
- 10Part N10667801
- 11Vent 059103158P
- 12Bolt N91054701
- 13Sleeve 057103139
- 14Cover 059121155AH
- 15Screw N10170303
- 16Cover 059121155AG
- 19Seal 057103147A
- 19ASeal D176501A1
- 20Cover 059121155BK
- 20Cover 059121155T
- 21Seal Ring N90783401
- 25Flange 059103151CE
- 25Part 059103151BN
- 26Seal 059103051G
- 27Seal 059103161AJ
- 27Seal 059103161T
- 28Bolt N10700201
- 28Screw N91180401
- 30Cover 059103525F
- 31Seal 059103161AD
- 33Seal Ring N90465004
- 35Bolt N10451408
- 36Seal Ring N90851401
- 36Seal Ring WHT002287C
- 37Sleeve 059103826A
- 38Washer WHT005400
- 39Flange 059103171BD
- 40Seal 059103051H
- 41Cover 059103565F
- 43Bolt N10745301
- 44Cover 059109130AG
- 45Seal 059109092L
- 46Screw N10582103
- 47Bolt N10124306
- 48Cover 059109129AG
- 49Seal 059109091K
- 52Seal D174003A2
- 56Valve 059103176B
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| touareg | 2012-2014 | 25 | ||
| Audi A7 Sportback | 2010-2015 | 7 | 1 | 05 |
| audi a6 2.0 tdi | 2010-2015 | 7 | D | |
| touareg | 2010-2012 | 25 | ||
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 7 | ||
| Audi A8L qu. 3.0 TDI | 2009-2014 | 7 | D |
Diagrams & fitment data powered by oemdiagrams.com
Sealing Flange is fitted on: touareg 2012-2014; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; touareg 2010-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014.
