059103196 O-Ring
- Current number
- Current number
- 059103196This pageNot stocked
Jul 2020
- Current number059103196ACurrent number
- Current number059103196CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

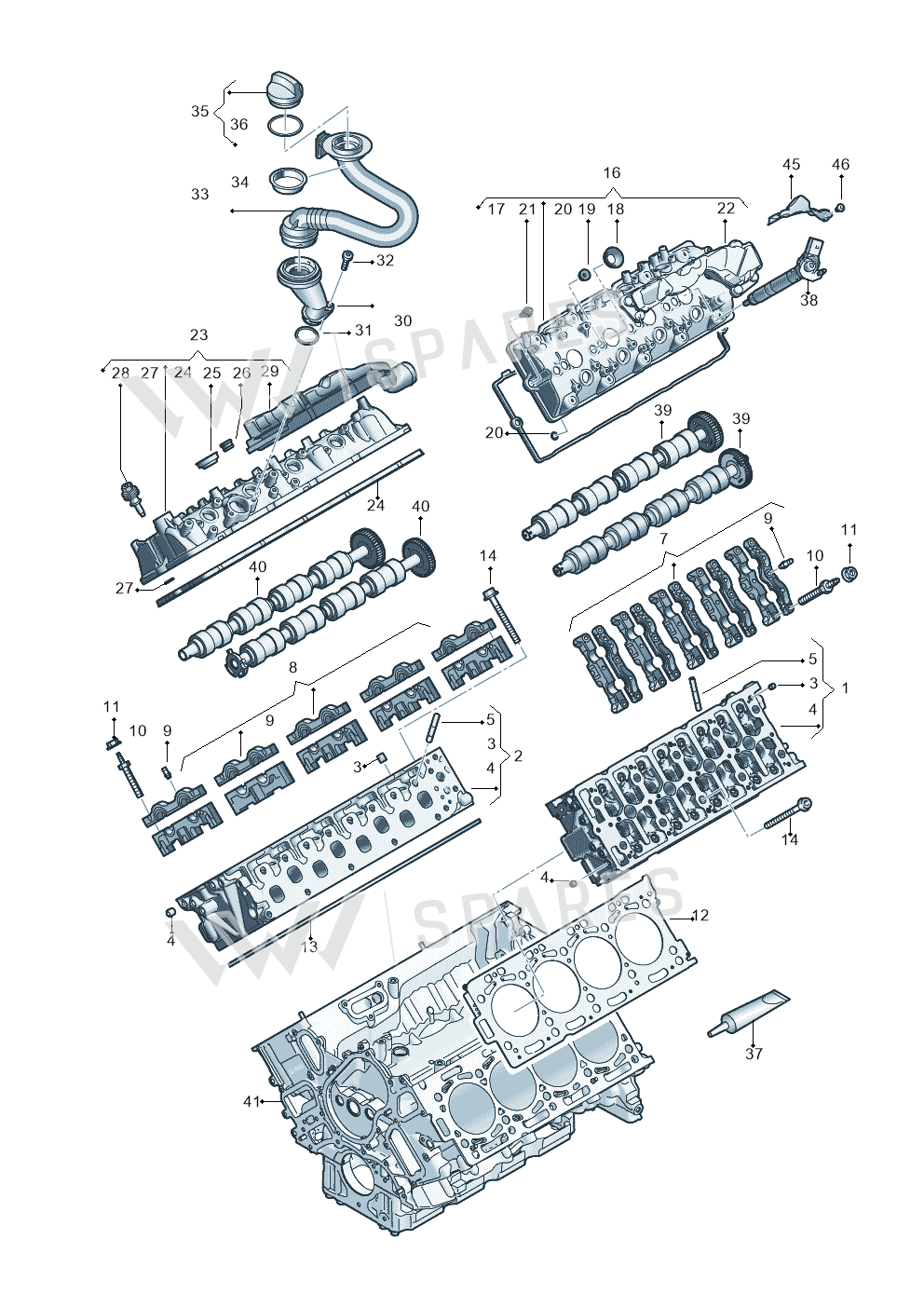

7 vehiclesO-ring — locate O-Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Cylinder Head 057103063DF
- 2Cylinder Head 057103064CR
- 3Sleeve 059103139B
- 4Screw N10283304
- 5Bolt N0444415
- 7Cover 057103959G
- 8Cover 057103960G
- 9Part N0131991
- 10Bolt WHT008070
- 11Collar Nut N01508213
- 12Seal 057103383MJ
- 12Seal 057103383MK
- 12Seal 057103383MH
- 13Seal 057103383KQ
- 13Seal 057103383KR
- 13Seal 057103383KP
- 14Screw WHT005262A
- 16Cover 057103469AF
- 17Seal 057103483P
- 18Seal 059103085L
- 19Grommet 04B103631
- 20Seal Ring 059103196A
- 21Element 059103831
- 23Cover 057103470AG
- 24Seal 057103484D
- 30Adapter 057103482J
- 31Seal Ring N90308402
- 32Bolt N10124306
- 33Pipe 4M0115301G
- 35Cover 06K103485B
- 35Cover 06K103485A
- 37Seal D176501A1
- 45Plate 057103555F
- 46Bolt N10335206
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 20 | |
| touareg | 2017-2023 | 24 | 20 |
| Audi A8L | 2017-2022 | 20 | |
| Audi A5 Sportback | 2016-2020 | 24 | 8 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 24 | 8 |
| audi a4 2.0 | 2015-2019 | 24 | 8 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 20 |
Diagrams & fitment data powered by oemdiagrams.com
O-Ring is fitted on: Audi Q8 Quattro 3,0 2018-; touareg 2017-2023; Audi A8L 2017-2022; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019.
