059103715 Banjo Bolt With Hexagon Socket
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

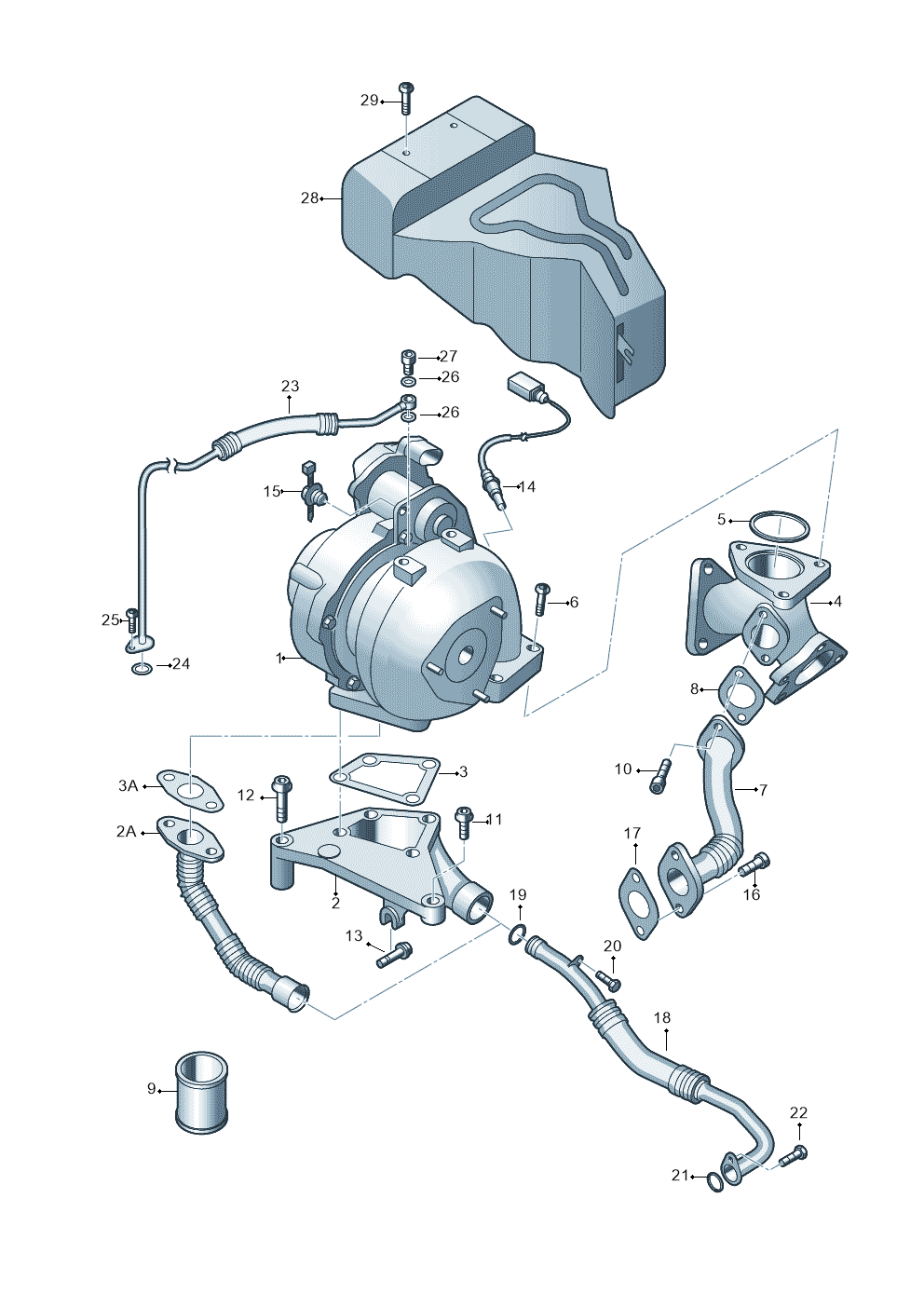

15 vehiclesBanjo Bolt With Hexagon Socket — locate Banjo Bolt With Hexagon Socket in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Turbo 059145715F
- 2Support 059145195B
- 3Seal 059145757D
- 4Elbow 059131799H
- 5Seal Ring 078145039
- 6Screw N10490001
- 7Pipe 059131525AB
- 8Seal 059131797G
- 9Paste G052112A3
- 10Screw N0147409
- 11Screw N90355903
- 12Screw N90351402
- 14Sensor 059906088A
- 15Cable Tie 3D0971838N
- 16Screw N91021501
- 17Seal 059131120
- 18Oil Line 059145735N
- 19Seal Ring 035115427
- 20Bolt N90529302
- 23Oil Pipe 059145771N
- 25Bolt N10405602
- 26Seal Ring N0138115
- 27Screw 059103728
- 28Plate 059145325AA
- 29Bolt N10335202
Vehicle fitment table15
Europe (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Phaeton (lang) | 2003-2006 | 27 | 1 | T41 |
| Touareg | 2003-2005 | 27 | 1 | T41 |
| PASSAT/4MOTION/W8 | 2002-2005 | 17, 12 | 2 | T6T,T1K |
| Passat/4Motion/W8 | 2000-2002 | 17, 12 | 2 | |
| Audi A8 quattro | 1999-2002 | 17, 12, 16 | 2 | |
| AUDI A8 | 1998-2002 | 17, 12 | 2 | |
| Passat syncro/4Motion | 1998-2000 | 17, 12 | 2 | |
| Passat | 1997-2000 | 17, 12 | 2 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 17, 12 | 2 | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 17, 12 | 2 | |
| Audi A8 | 1996-1998 | 17, 12 | 2 | |
| Audi A8 qu. | 1996-1998 | 17, 12 | 2 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A4 "CN."06> | 2005- | 39 | 1 | |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 39 | 1 | |
| AUDI A6L CHINA | 1999-2005 | 17, 12 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Banjo Bolt With Hexagon Socket is fitted on: Phaeton (lang) 2003-2006; Touareg 2003-2005; PASSAT/4MOTION/W8 2002-2005; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Passat syncro/4Motion 1998-2000; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A8 1996-1998; Audi A8 qu. 1996-1998; AUDI A4 "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005; AUDI A6L CHINA 1999-2005.
