059109469E Guide Rail
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

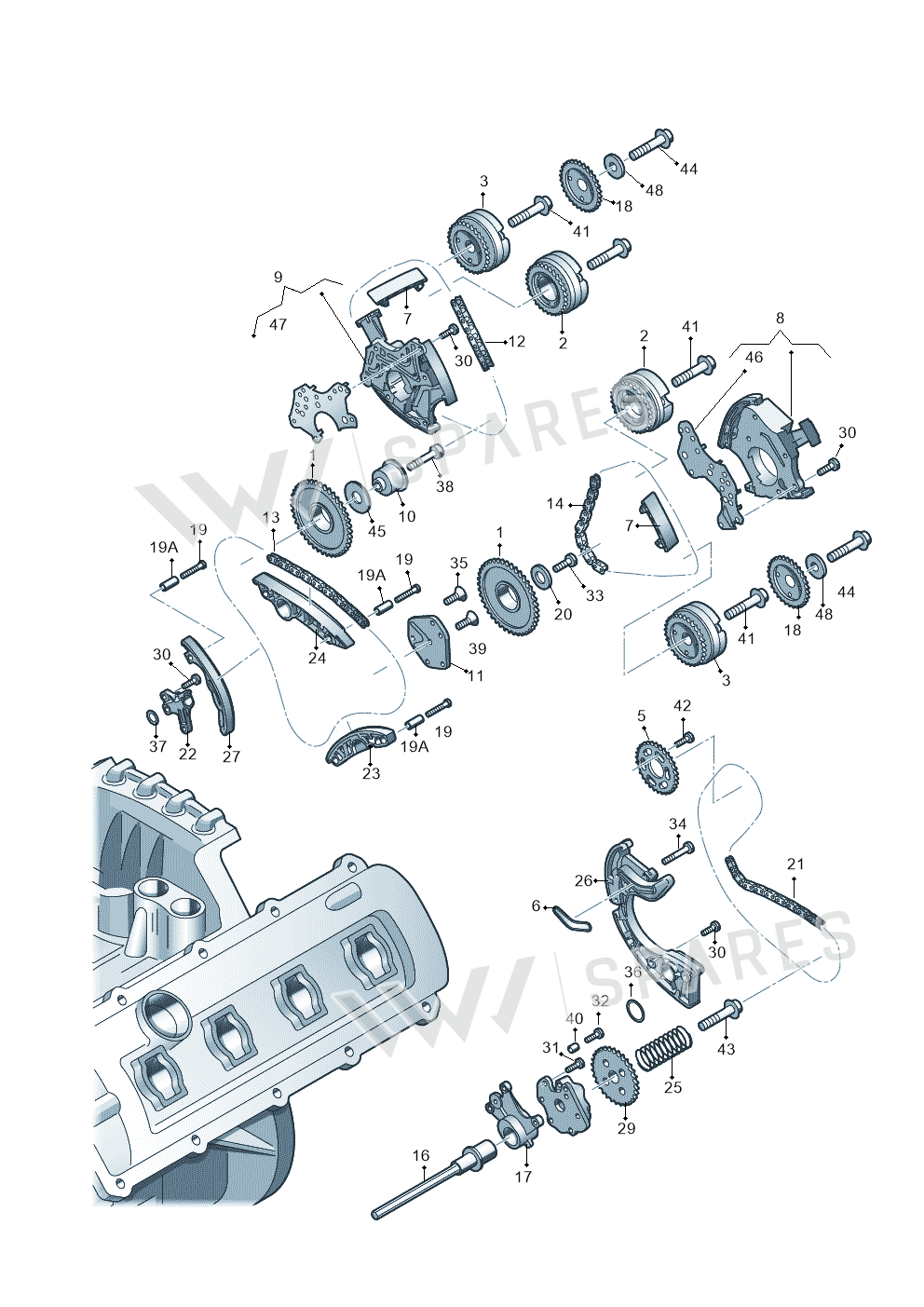

18 vehiclesGuide Rail — locate Guide Rail in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Chn Sprckt 059109077E
- 2Adjuster 06E109083G
- 3Adjuster 06E109084G
- 5Chn Sprckt 057109116J
- 8Tensioner 06E109217H
- 9Tensioner 06E109218H
- 10Part 057109224D
- 11PartLeft057109224B
- 12Timing ChaRight06E109229A
- 13Timing Cha 06E109229F
- 14Timing ChaLeft079109229L
- 16Part 06E109339K
- 17Plate 06E109360A
- 19Bearing Pin 06E109220
- 19Screw N91100901
- 19ASleeve 06E109721
- 20WasherLeft079109435G
- 21Timing Cha 06E109465
- 22Tensioner 06E109467H
- 23Rail 059109469F
- 25Press Spring 059109481
- 26Tensioner 06E109507D
- 27Rail 079109510M
- 29Chn Sprckt 06E109570B
- 30Bolt N10124306
- 30Bolt N10124308
- 30Bolt N10451409
- 32Bolt N91071701
- 32Bolt N10413401
- 34Screw N10554006
- 37Seal Ring N90364901
- 38Screw N90668204
- 38Screw N90668203
- 39Bolt N90954903
- 40Sleeve N91020801
- 41Bolt N91042802
- 42Screw N91026802
- 43Screw N91073701
- 45Washer WHT000124
- 46Seal 06E109139G
- 47Seal 06E109139F
Vehicle fitment table18
Europe (16)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A6 2.7 TDI | 2008-2011 | 24 | 1 | BKH | D2G |
| Audi A5/S5 Coupe 08> | 2007- | 12 | 1 | D50 | |
| Audi A8/S8/qu. lang 08> | 2007- | 24, 23 | 1 | D62 | |
| AUDI A4 08> | 2007- | 12 | 1 | D50 | |
| Audi RS4 Cabrio qu. 08> | 2007- | 23 | 1 | D0W | |
| Touareg 08> | 2007- | 13 | 1 | D1T | |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 24, 23 | 1 | D2G | |
| Audi Q7 07> | 2006- | 23 | 1 | ||
| AUDI A6 QU.ALLROAD 07> | 2006- | 24, 23 | 1 | D2G | |
| Audi RS4 qu. 07> | 2006- | 23 | 1 | D0W | |
| Audi A4/S4/Av./qu. 05> | 2005- | 24, 23 | 1 | D2G | |
| Touareg | 2005-2006 | 13 | 1 | D1T | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 24, 23 | 1 | ||
| Audi A8/S8/qu. lang | 2003-2007 | 23, 24 | 1 | D1D | |
| Phaeton (lang) | 2003-2006 | 13 | 1 | D1T | |
| Touareg | 2003-2005 | 13 | 1 | D1T |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 24 | 1 | ||
| MARINE-MOTOR 02> | 2002- | 13 | 1 |
