Product overview

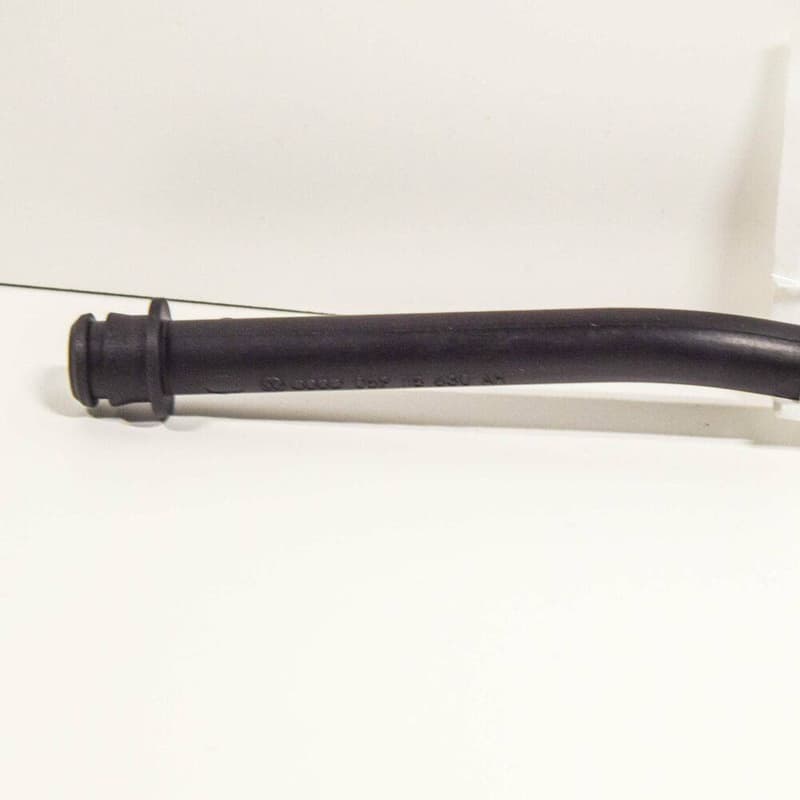

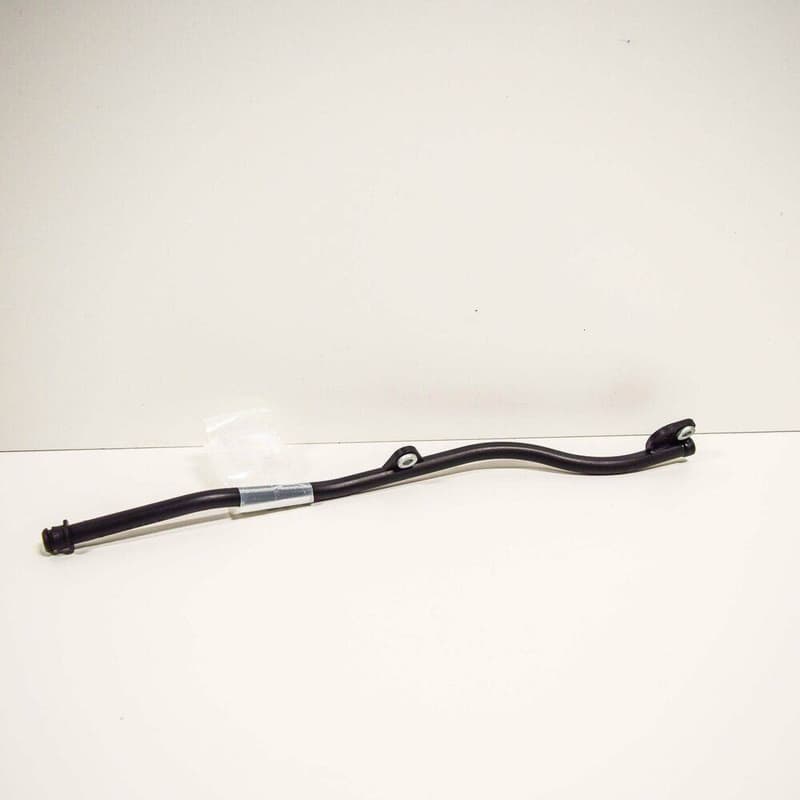

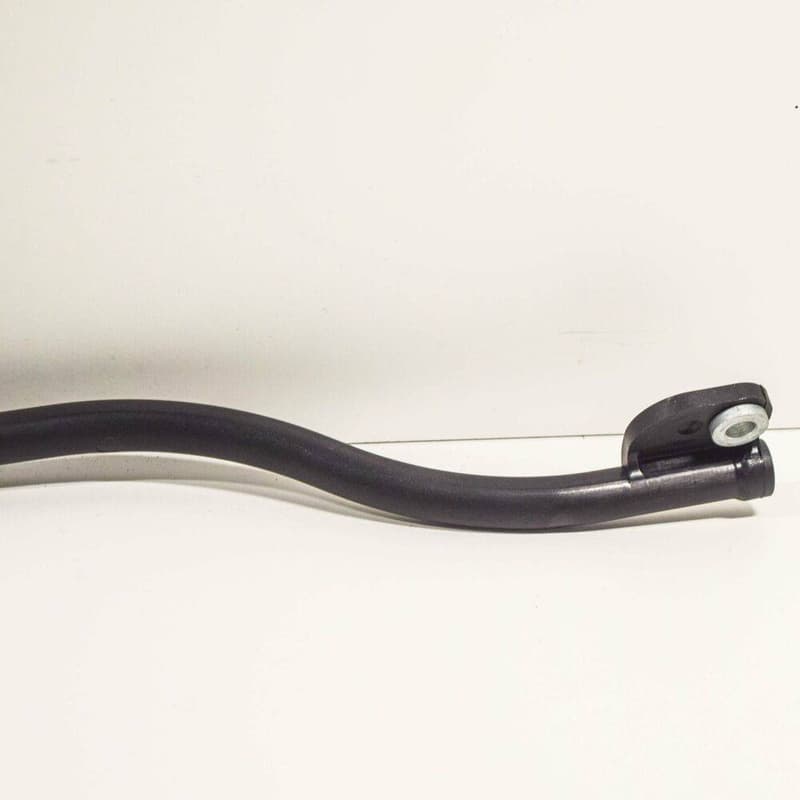

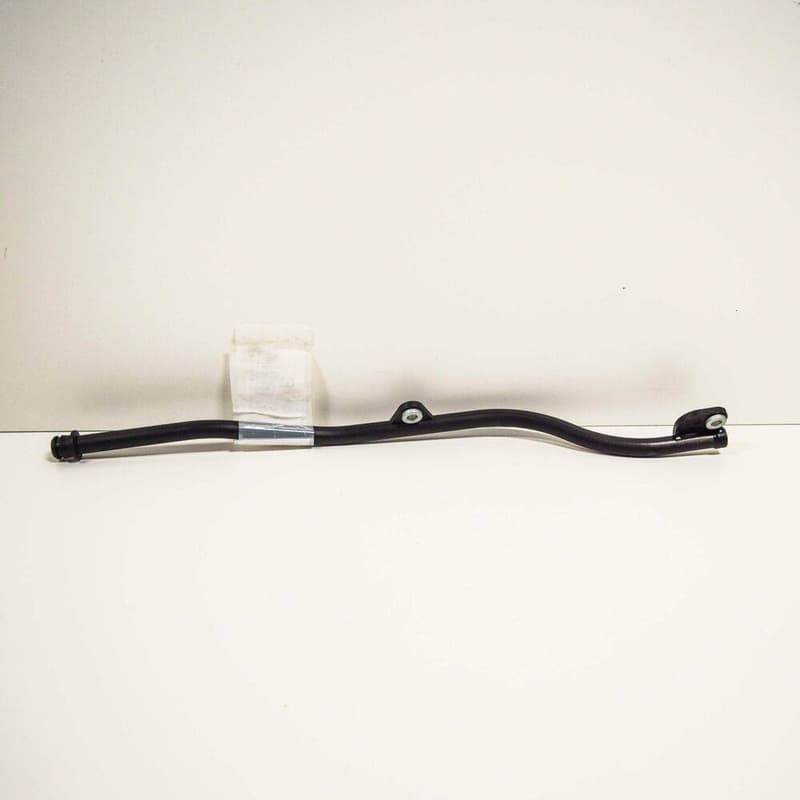

Genuine OEM Audi Oil Dipstick Tube, part number 059115630AH. This component serves as a crucial guide for the engine oil dipstick, ensuring it reaches the oil pan correctly for accurate oil level measurement. It is typically mounted to the engine block or cylinder head, extending down to the oil sump. Made from durable, heat-resistant plastic, this tube is approximately 44.5 cm long. Using a genuine OEM dipstick tube guarantees the correct length, diameter, and mounting points, preventing oil leaks and ensuring reliable oil level readings for proper engine lubrication.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44.5 × 3.4 × 5.5 cm
- Shipping weight
- 0.05 kg
Parts diagram & fitment
16 vehiclesTube For Oil Dipstick — locate 059115630AH Audi Oil Dipstick Tube | Engine Oil Level in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 1Oel Sensor 03C907660Q
- 1Oel Sensor 03C907660R
- 2Seal Ring 038103196B
- 3Bolt N10745101
- 4Oil Sump 059103602AE
- 6Insert 059103138AN
- 7Screw N91099101
- 11Bolt N10745301
- 12Oil Pump 059115103S
- 12Oil Pump 059115103N
- 13Seal 059115111A
- 15Shaft 059109339H
- 15Shaft 059109339G
- 16Part 06E115243G
- 18Chn Sprckt 059109570C
- 19Bolt N90893202
- 21Pipe 059103688
- 22Seal Ring N0138494
- 23Screw N91167901
- 24Bolt N10413405
- 24Collar Nut N01508210
- 28Seal Ring 034115427B
- 30Screw N10554005
- 31Bolt N10124306
- 34Stud 059115418A
- 35Seal Ring N90813802
- 36Seal D176501A1
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
059115630AH Audi Oil Dipstick Tube | Engine Oil Level is fitted on: Audi A4 Av. Allroad 2008-2016; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A8L qu. 3.0 TDI 2013-2018; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; touareg 2010-2012; touareg 2012-2014; Touareg BlueMotion 2014-2018.
