059121071CQ Coolant Pipe
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

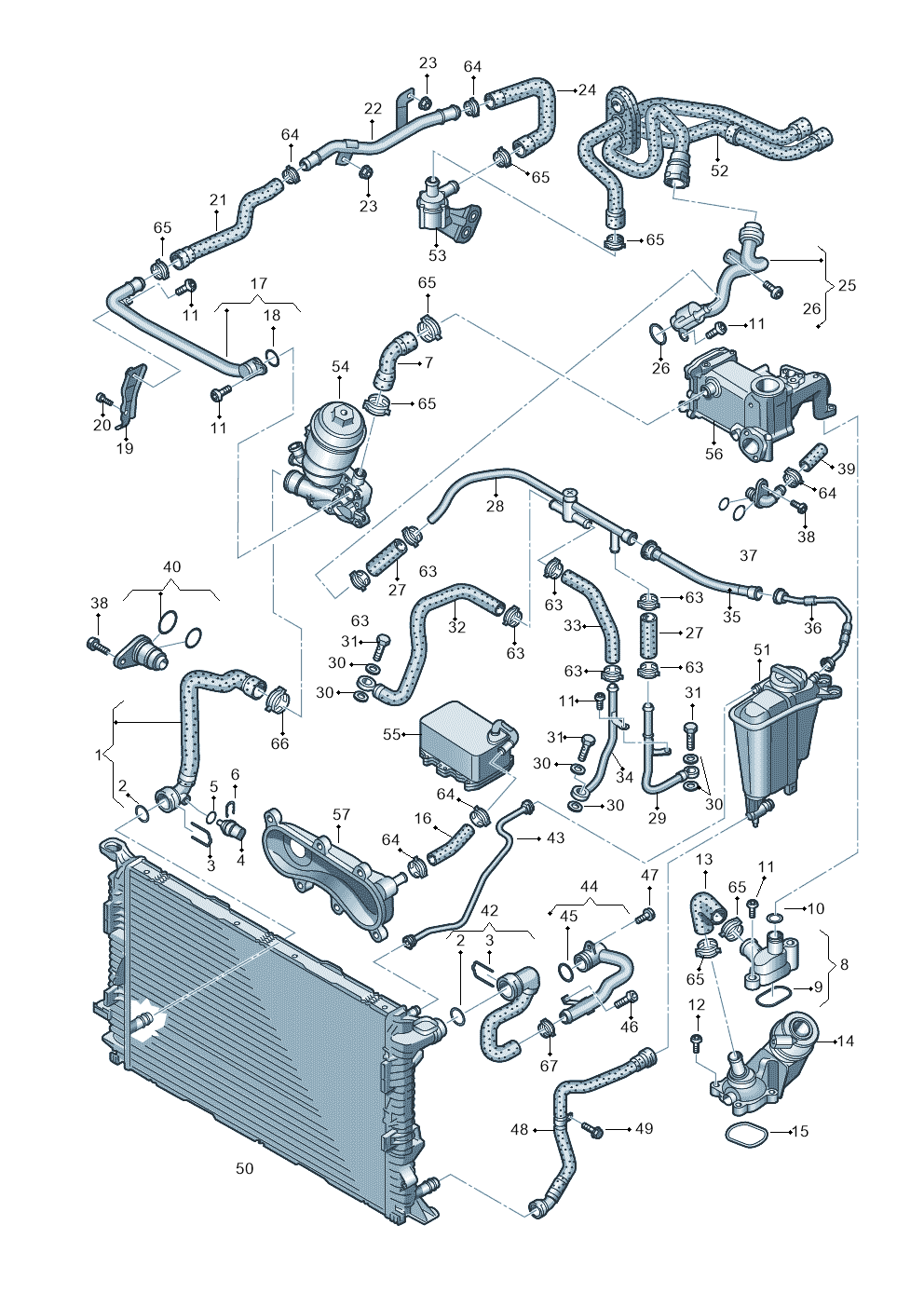

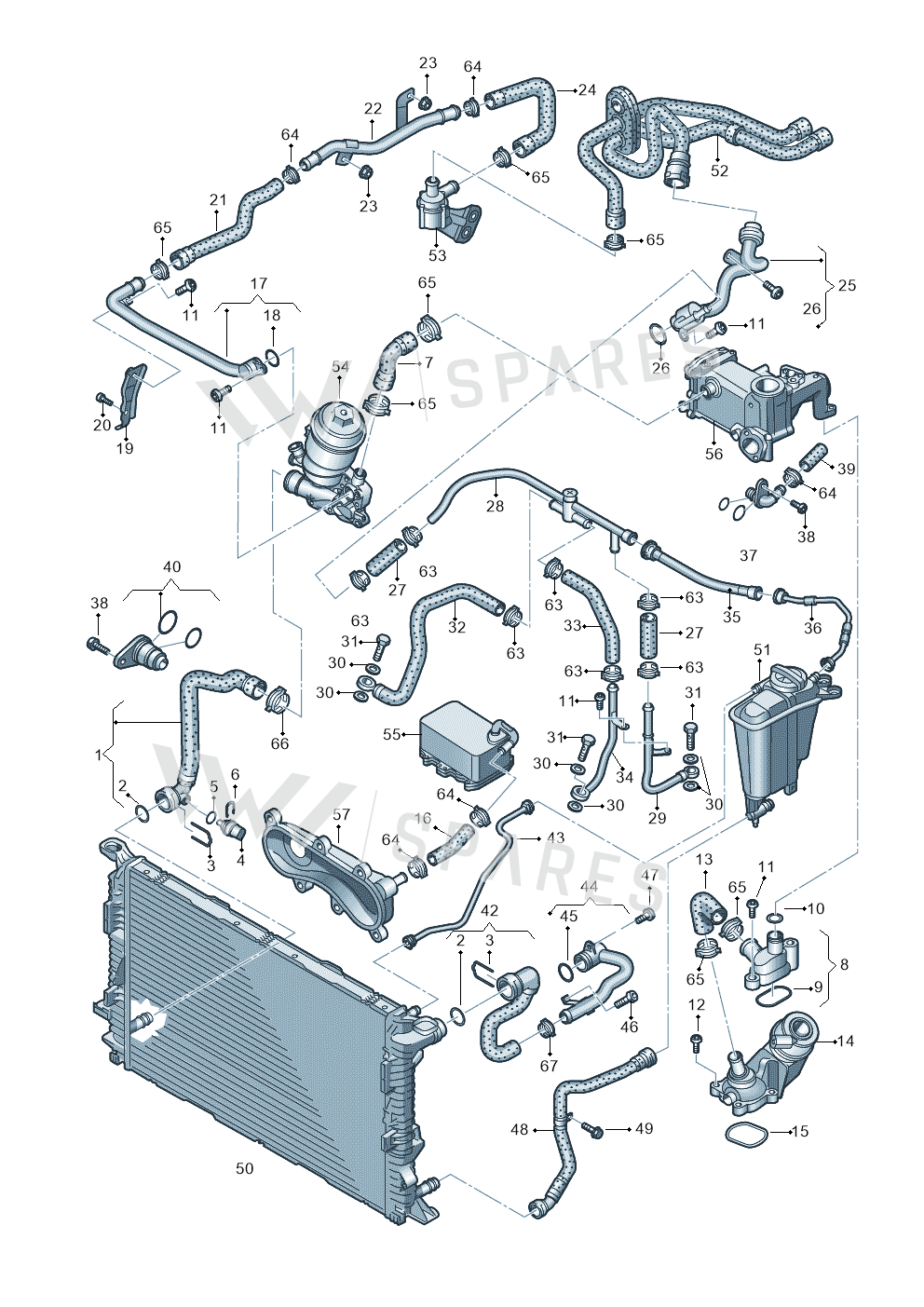

6 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1HoseRight4G0121049L
- 2Seal Ring 4E0121666
- 3Spring 4E0121142
- 4Sender 06A919501A
- 5Seal Ring N90316801
- 6Spring 032121142
- 7Hose 059121103H
- 8Flange 059121506H
- 8Flange 059121506G
- 9Seal Ring 059121149E
- 9Seal Ring 059121149C
- 10Seal Ring N90809102
- 11Part N10196103
- 11Bolt N10451408
- 12Screw N10554005
- 13Hose 059121625C
- 14Valve 059121737R
- 15Seal Ring 059121149B
- 16Hose 059121073P
- 17Water Pipe 059121075DJ
- 18Seal Ring 059121437
- 19Bracket 059121093E
- 20Screw N10644901
- 21HoseRight8K0819374AC
- 23Collar Nut N01508210
- 25Water Pipe 059121065CP
- 27Hose 059121056G
- 28Water Pipe 059121086AH
- 29Water Pipe 059121399K
- 30Seal Ring N0138076
- 31Screw N91043801
- 32Hose 059121454D
- 32Hose 059121454C
- 33Hose 059121453D
- 33Hose 059121453C
- 34Pipe 059121465A
- 35Water Pipe 059121731B
- 36Hose 8K0121081BG
- 36Hose 8K0121081AL
- 37CoverLeft059121155R
- 38Screw N10170303
- 39Part 078133335A
- 40CoverRight059121155Q
- 42Hose 8K0122101B
- 43Hose 8K0121081BJ
- 43Hose 8K0121081AT
- 45Seal Ring N90275302
- 46Bolt N10517304
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A5 Sportback | 2011-2017 | 44 | 1 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 44 | 1 | |
| audi a4 av. 2.0 tdi | 2011-2015 | 44 | 1 | |
| Audi A7 Sportback | 2010-2015 | 4 | 1 | |
| audi a6 2.0 tdi | 2010-2015 | 4 | 1 | |
| Audi A4 Av. Allroad | 2008-2016 | 44 | 1 | TF1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016.
