05E109093A Bracket
- 05E109093AThis pageNot stocked
Oct 2020 - 05E109093CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

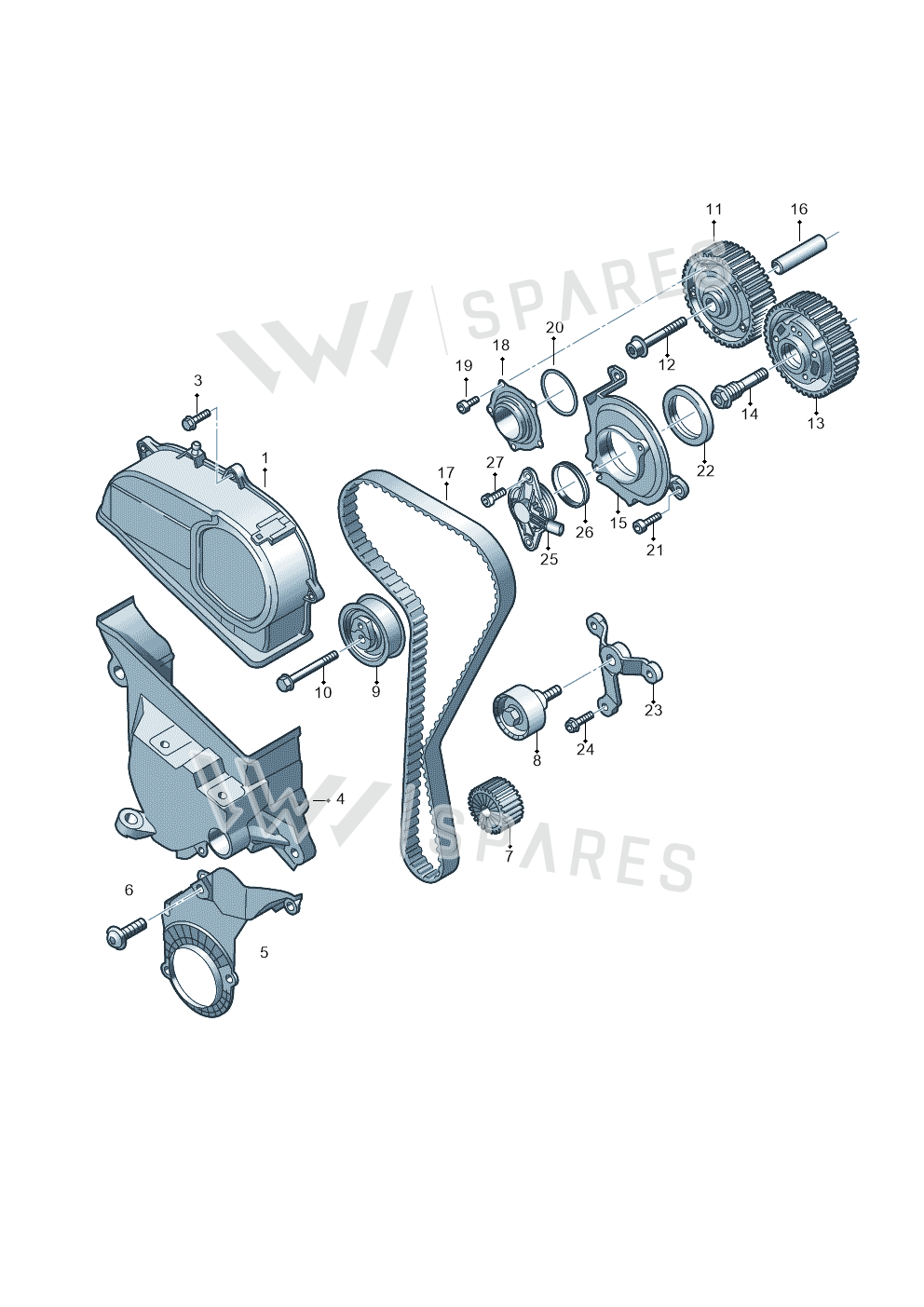

11 vehiclesBracket — locate Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Protection 04E109108AB
- 3Bolt WHT003261
- 5Protection 04C109175F
- 6Bolt N91096801
- 7Pulley 05E105263
- 8Roller 05E109244
- 9Tens Roll 04E109479H
- 10Screw N10690201
- 11Adjuster 04E109088AJ
- 11Adjuster 05E109088E
- 12Screw N91197201
- 13Adjuster 05E109088B
- 13Adjuster 05E109088D
- 14Valve 04E109257A
- 15Bracket 05E109093C
- 16Sleeve 03C103825A
- 17Tooth Belt 04E109119F
- 18Cover 04E109153
- 19Screw N10313302
- 20Seal Ring WHT008548
- 21Bolt N10124309
- 22Seal 04E103085AN
- 23Bracket 05E109187
- 24Bolt N91108701
- 25Valve 04E906423C
- 25Valve 04E906423B
- 26Seal Ring 04E906145
- 27Screw N10546403
Vehicle fitment table11
Europe (11)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Arona FR | 2017- | 15 | 1 |
| Ibiza FR | 2017- | 15 | 1 |
| T-Roc BlueMotion | 2017-2024 | 15 | 1 |
| Arteon | 2017-2023 | 15 | 1 |
| Karoq | 2017-2022 | 15 | 1 |
| Octavia | 2017-2020 | 15 | 1 |
| golf 2.0 | 2016-2020 | 15 | 1 |
| Leon ST Stylance | 2016-2020 | 15 | 1 |
| Audi A3 Sportback | 2016-2020 | 15 | 1 |
| Audi A3 Cabrio | 2016-2020 | 15 | 1 |
| Golf Sportsvan 1.6 | 2014-2020 | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket is fitted on: Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Octavia 2017-2020; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Golf Sportsvan 1.6 2014-2020.
