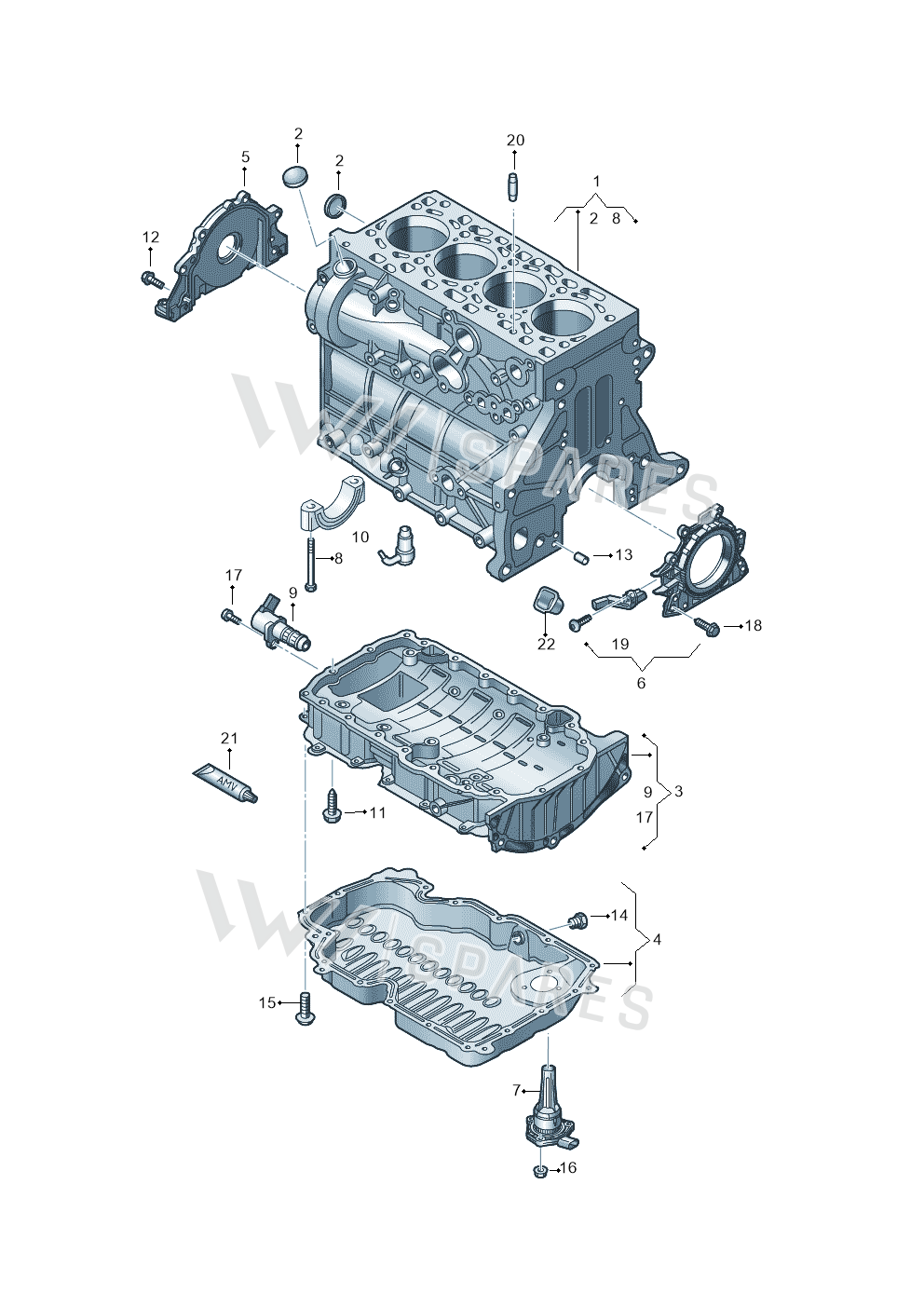

Flange exploded parts diagram — Leon style · 2019-, position 6 — Leon style · 2019- · position 6Full diagram ↓

05L103170J

05L103170J Flange

Name: 05L103170J Flange
Brand: Volkswagen
SKU: 05L103170J
Price: 145.72 GBP
Availability: Discontinued

£145.72

£120.43 excl. VAT

Supersession roadoldest to newest

05L103170J
Not stocked Jul 2021
You are here
05L103171A
Current number

05L103170JThis pageNot stocked
Jul 2021
05L103171ACurrent number

Current part number05L103171AWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

6 vehicles

Flange — locate Flange in the official exploded view and explore the surrounding assembly.

Parts in this assembly28

Vehicle fitment table6

Europe (6)

Vehicle	Years	Pos.	Qty	PR
Leon style	2019-	6	1
Golf 2.0 BlueMotion	2019-2024	6	1
Octavia	2019-2024	6	1	4BF
Arteon	2017-2023	6	1
Superb Combi	2015-2024	6	1
Passat saloon	2014-2024	6	1
