06A103601AC Engine Oil Sump
- 06A103601ACThis pageNot stocked
Nov 2014 - 06A103601BCCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

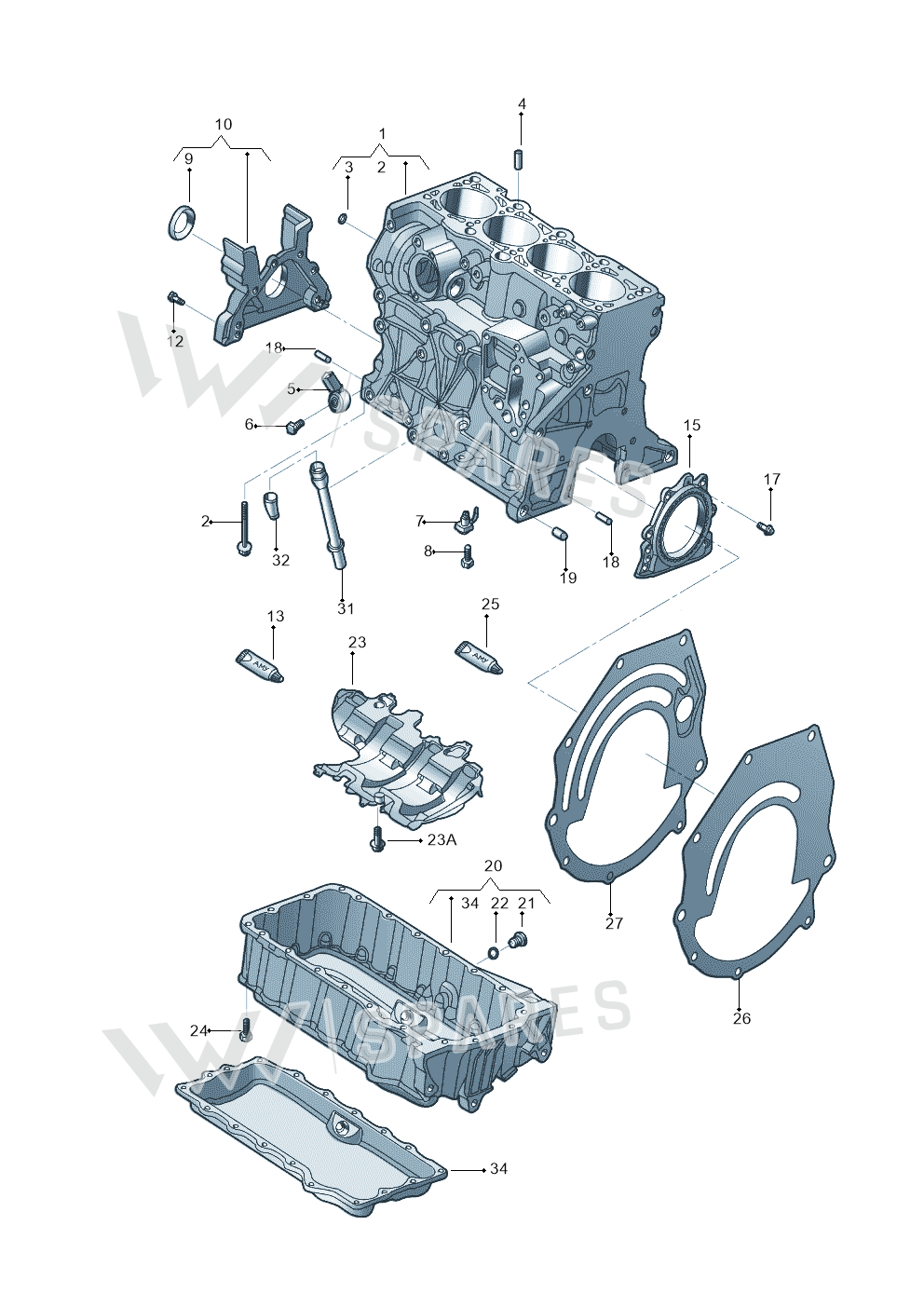

6 vehiclesEngine Oil Sump — locate Engine Oil Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Part 06G103011B
- 2Bolt N90130001
- 3Cover N01190710
- 4Part 037103139A
- 4Cylinder Pin 037103139
- 5Sensor 030905377C
- 6Bolt N01033520
- 7Vent 06B103154
- 9Seal 038103085E
- 10Flange 038103151H
- 12Bolt N90945002
- 13Seal D176404A2
- 15Flange 06A103171A
- 18Part N10617101
- 19Sleeve 022103139B
- 20Oil Sump 06A103601BC
- 21Plug N91086801
- 23Lock 06B103623P
- 23ABolt N90704007
- 24Bolt N90735604
- 25Seal D176501A1
- 26Cover 06F103645A
- 26Cover 038103647A
- 27Cover 06A103645
- 31Tube 06D103634E
- 32Funnel 06A103663C
Vehicle fitment table6
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| jetta | 2010-2014 | 20 | 1 | ||
| JETTA 06> | 2006- | 22 | 1 | G0C | |
| GOLF | 2003-2005 | 22 | 1 | G0C |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 22 | 1 | G0C | |
| Golf/Rabbit | 2005-2007 | 22 | 1 | G0C | |
| TOURAN (SVW) "CN"04> | 2004- | 23 | 1 | BJZ,CGZA | D3R |
Diagrams & fitment data powered by oemdiagrams.com
Engine Oil Sump is fitted on: jetta 2010-2014; JETTA 06> 2006-; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007; TOURAN (SVW) "CN"04> 2004-.
