06A129289C Hexagon Socket Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

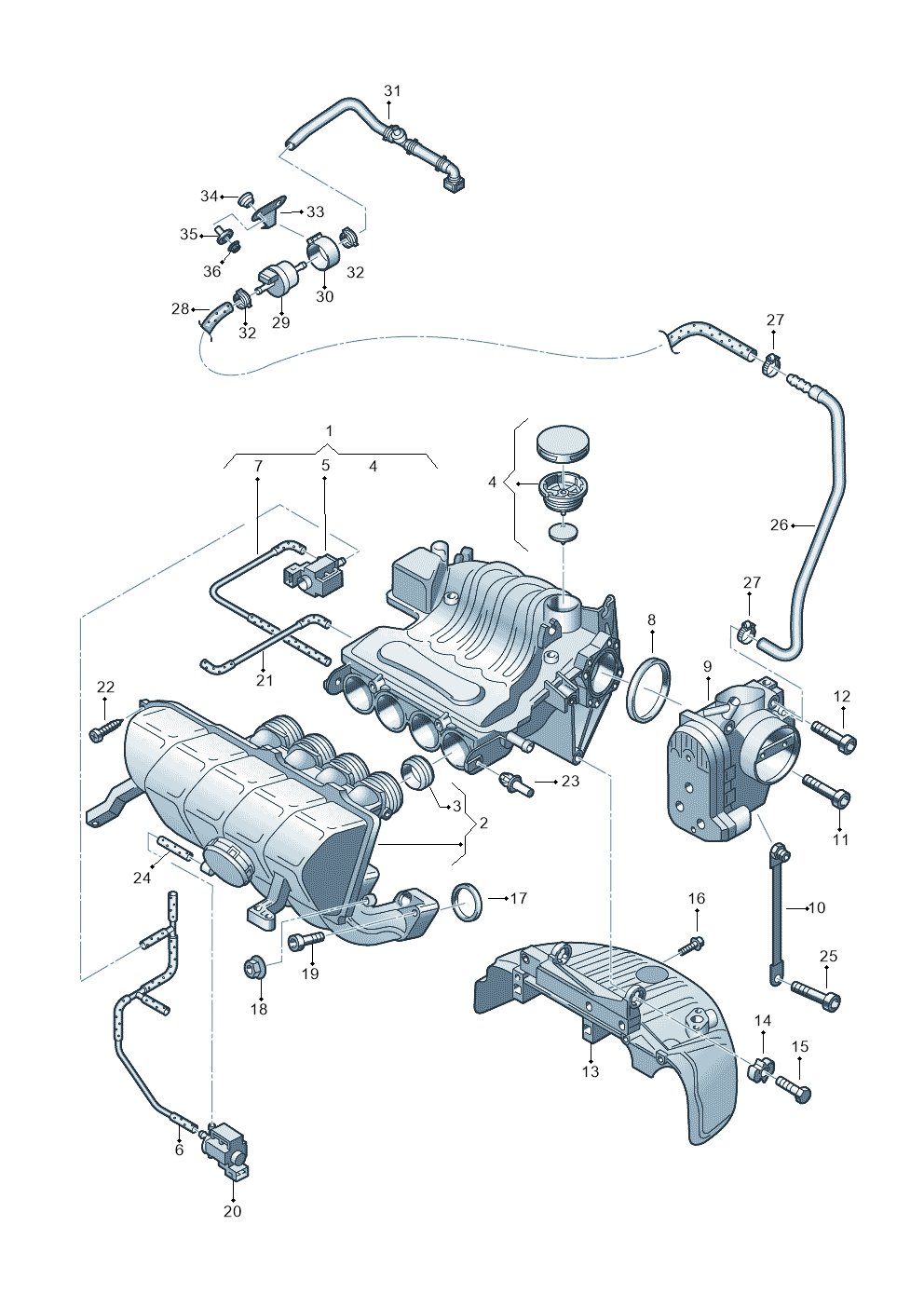

26 vehiclesHexagon Socket Head Bolt — locate Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Manifold 06A133203EE
- 2Manifold 06A133204CP
- 3Seal 06A133227D
- 4Repair Kit 06A198205A
- 5Valve 037906283C
- 6Hose 06A133773N
- 7Hose 06A133778J
- 8Seal Ring 06A133557G
- 9Thr Flap 06A133062Q
- 10Line 06A971237
- 12Screw N10247501
- 13Support 06A133229AG
- 14Rubber Bush 06A129763
- 16Bolt N10700201
- 16Screw N90425401
- 17Seal Ring 06A133398F
- 18Collar Nut N01508315
- 19Screw N90348704
- 21Hose 06A133778K
- 22Screw N10327501
- 23Spring Rivet N90359101
- 25Bolt N10451405
- 27Clamp N90768301
- 29Valve 1C0906517A
- 30Thrustring 051133459A
- 31Pipe 1C0133514C
- 32Clamp N90686701
- 33Retainer 1C0133519C
- 34Grommet 867129669
- 35Spacer 6N0129734
- 36Collar Nut N90175205
Vehicle fitment table26
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Beetle 06> | 2005- | 15 | 2 | MR4 | |
| New Beetle Cabrio. 06> | 2005- | 15 | 2 | MR4 | |
| New Beetle Cabrio. | 2003-2005 | 17, 15 | 2 | MW6 | |
| Jetta/Wagon | 2002-2006 | 17 | 2 | AEH,AKL | ME8 |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 17, 13 | 2 | ||
| New Beetle | 2001-2005 | 17, 15 | 2 | MW6 | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 17 | 2 | AEH,AKL | |
| Jetta Wagon 02 | 2001-2002 | 17 | 2 | AEH,AKL | |
| Jetta Wagon | 2001-2001 | 17, 13 | 2 | ||
| OCTAVIA/COMBI/4X4 01> | 2000- | 15 | |||
| AUDI A3/S3/QUATTRO | 2000-2003 | 17, 13 | 2 | ||
| CORDOBA/VARIO | 1999-2002 | 17 | 2 | ||
| IBIZA | 1999-2002 | 17 | 2 | ||
| POLO CLASSIC/VARIANT | 1999-2001 | 17 | 2 | ||
| New Beetle | 1998-2001 | 17 | 2 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 17, 13 | 2 | ||
| Golf | 1998-2000 | 17, 13 | 2 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 17, 13 | 2 |
Other markets (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| BORA-GP-FAW 07> | 2006- | 13 | 2 | ||
| AUDI A3 "BR."M.06> | 2005-2006 | 13 | 2 | ||
| Golf 'R32' n. "USA" | 2004-2004 | 17 | 2 | AEH,AKL | ME8 |
| POLO CLASSIC "CN"03>06 | 2003-2006 | 17 | |||
| POLO CLASSIC (AUS) "CN"03>06 | 2003-2006 | 17 | |||
| POLO "CN"02>06 | 2002-2006 | 17 | |||
| BORA (FAW) | 2001-2006 | 13 | 2 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 13 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Socket Head Bolt is fitted on: New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; New Beetle Cabrio. 2003-2005; Jetta/Wagon 2002-2006; TOLEDO/LEON/LEON-4 2001-2006; New Beetle 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A3/S3/QUATTRO 2000-2003; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; POLO CLASSIC/VARIANT 1999-2001; New Beetle 1998-2001; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; AUDI A3/S3/QUATTRO 1996-2000; BORA-GP-FAW 07> 2006-; AUDI A3 "BR."M.06> 2005-2006; Golf 'R32' n. "USA" 2004-2004; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006; BORA (FAW) 2001-2006; 1J0 platform.
