06C103085 Shaft Oil Seal
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

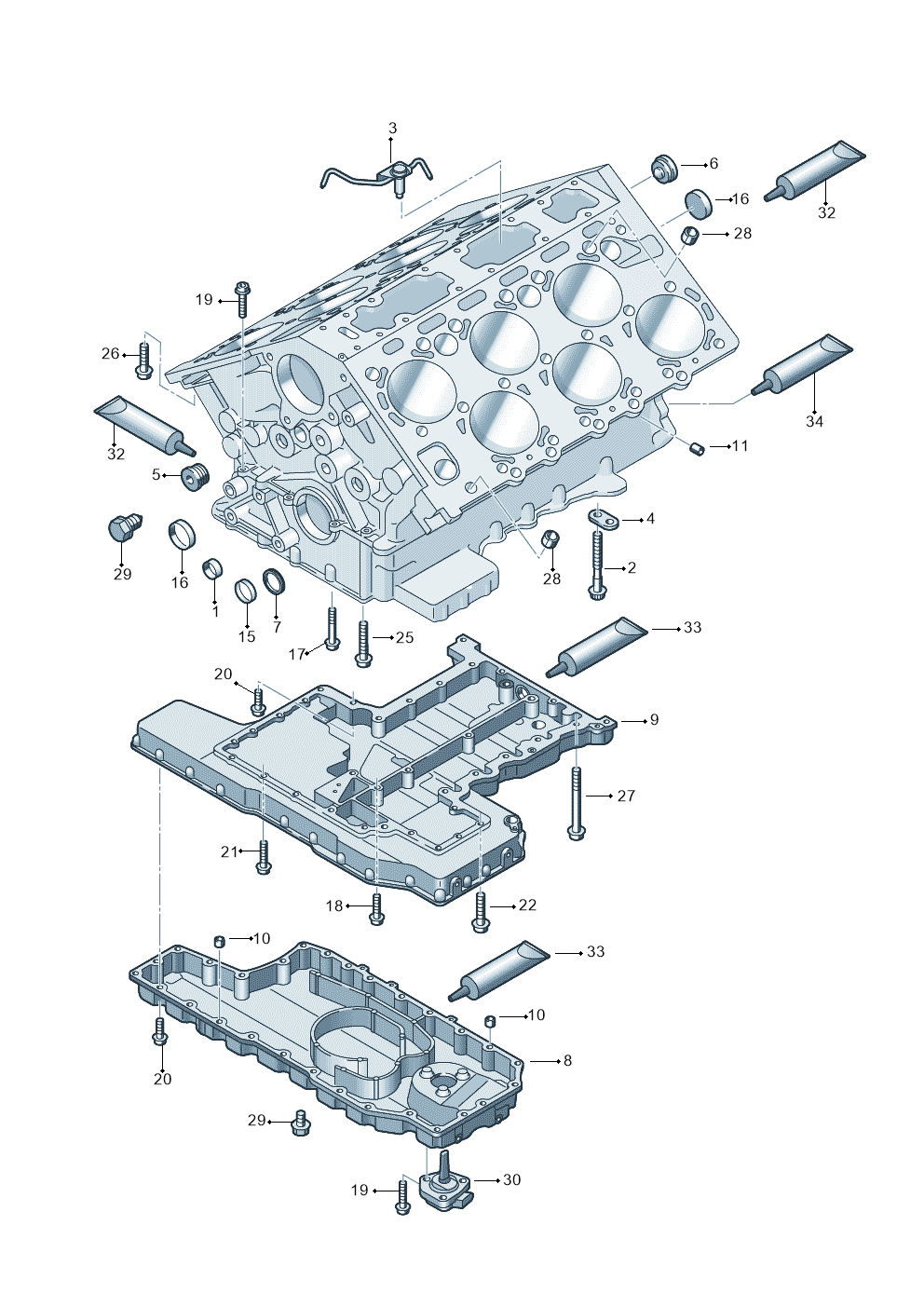

17 vehiclesShaft Oil Seal — locate Shaft Oil Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Bungs 07D101122
- 2Screw 07D103039D
- 4Washer 07D103377A
- 5Screw 07C103381
- 6Screw 07C103381D
- 7Seal 07C103085
- 8Oil Sump 07C103800AN
- 9Oil Sump 07C103803K
- 10Sleeve 07C103825
- 11Sleeve 07D103826B
- 15Cover N01190310
- 16Cover N01191410
- 17Screw N10126503
- 18Screw N91065301
- 19Screw N91065201
- 20Screw N10613601
- 21Screw N10613701
- 22Screw N10613901
- 25Screw N91104701
- 26Screw N90339605
- 27Screw N10627901
- 29Bolt N90813202
- 32Locking D000600A2
- 33Seal D176404A2
- 34Seal D176501A1
Vehicle fitment table17
Europe (14)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A8/S8/qu. lang 08> | 2007- | 7 | 1 | D0T |
| Touareg 08> | 2007- | 32 | 1 | D0T |
| PHAETON 08> | 2007- | 32 | 1 | |
| Audi A4/S4/Av./qu. 05> | 2005- | 7A | 4 | D7A |
| Touareg | 2005-2006 | 32 | 1 | D0T |
| Audi A6/S6/Avant/qu. 05> | 2004- | 7A | 4 | D7A |
| Audi A8/S8/qu. lang | 2003-2007 | 7A | 4 | D2H,D7A |
| Phaeton (lang) | 2003-2006 | 32 | 1 | MW4 |
| Touareg | 2003-2005 | 32 | 1 | D0T |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 7A | 4 | D2H,D7A |
| PASSAT/4MOTION/W8 | 2002-2005 | 33 | 1 | M3E,0GG,0GM,0GV,0GY,7GE |
| Audi A4/S4/Av./qu. | 2001-2004 | 7A | 4 | D2H,D7A |
| Audi A6/Wagon/quattro | 2001-2004 | 7A | 4 | D2H,D7A |
| Passat/4Motion/W8 | 2000-2002 | 33 | 1 | M3E,0GG,0GM,0GV,0GY,7GE |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 7A | 4 | |
| AUDI A4 "CN."06> | 2005- | 7A | 4 | |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 7A | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Shaft Oil Seal is fitted on: Audi A8/S8/qu. lang 08> 2007-; Touareg 08> 2007-; PHAETON 08> 2007-; Audi A4/S4/Av./qu. 05> 2005-; Touareg 2005-2006; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; Touareg 2003-2005; Audi A4/S4 Cabrio./qu. 2002-2006; PASSAT/4MOTION/W8 2002-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Passat/4Motion/W8 2000-2002; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005.
